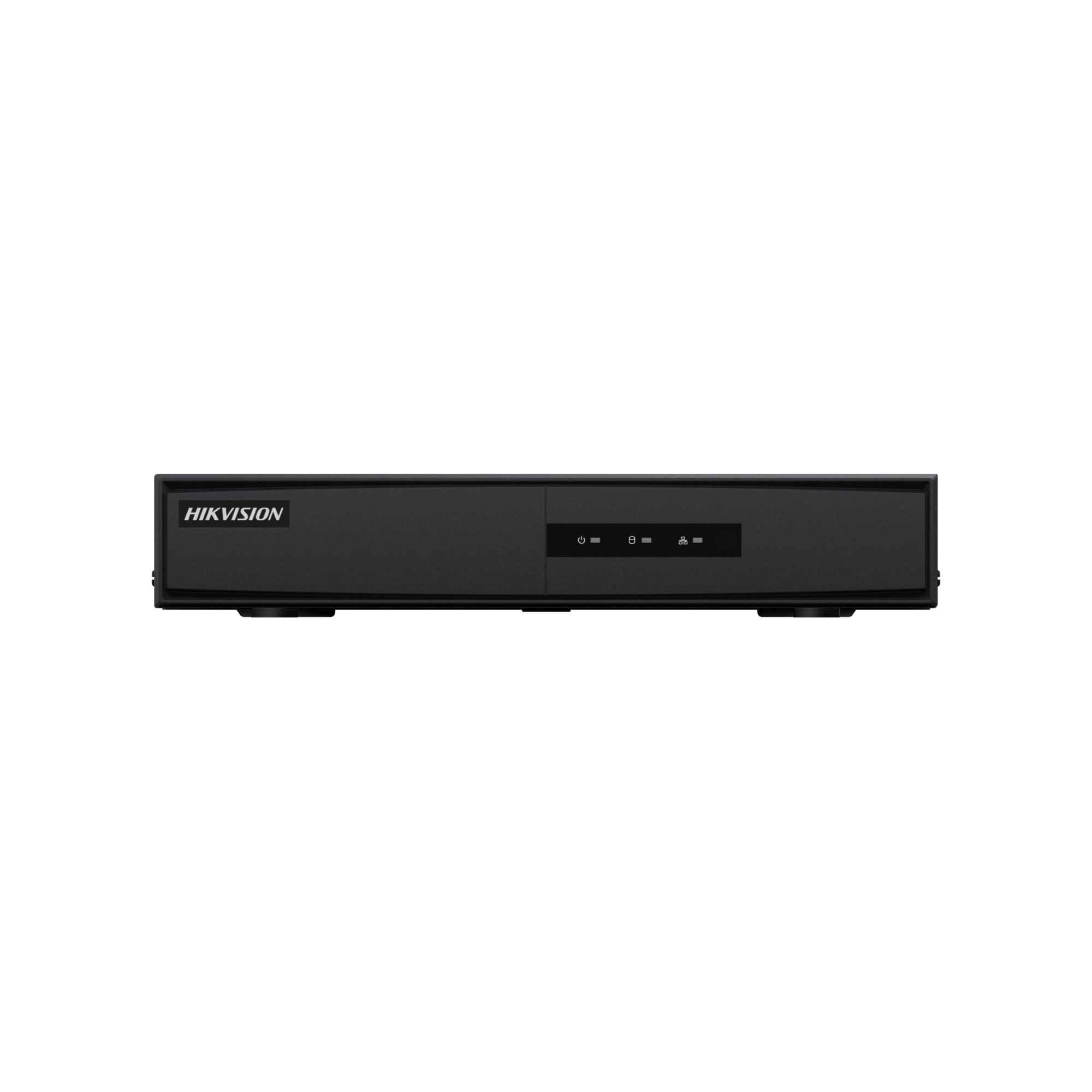

Hikvision DS-7332HQHI-K4 32 Channel Turbo HD DVR with 4K Output and Advanced Surveillance Analytics

The Hikvision DS-7332HQHI-K4 is a professional 32-channel Turbo HD DVR designed for large-scale CCTV surveillance systems that require high performance, flexible integration, and reliable long-term recording. It is suitable for commercial buildings, industrial facilities, institutions, warehouses, retail environments, and multi-site security installations. This hybrid DVR supports both analog and IP cameras, allowing seamless system expansion and upgrade flexibility. With H.265 Pro+ compression, 4K HDMI output, and advanced video analytics, it delivers efficient storage management, clear video quality, and stable 24/7 monitoring performance.

Product Features

32 channel high-capacity surveillance system

Supports up to 32 analog cameras, providing extensive coverage for large properties with multiple monitoring zones and entry points.

Hybrid camera compatibility

Supports HDTVI, AHD, CVI, CVBS, and IP cameras, allowing integration of different CCTV technologies within a single system.

H.265 Pro+ compression technology

Reduces storage space and bandwidth usage while maintaining high-quality video recording for extended retention periods.

Expanded IP camera support

Supports up to 40 IP cameras depending on system configuration, allowing scalable expansion beyond analog limits.

4K HDMI ultra-high-definition output

Delivers 4K resolution output for clear and detailed live viewing on professional monitoring displays.

High-definition recording capability

Supports up to 4MP Lite recording across all channels for sharp and detailed surveillance footage.

Advanced video content analytics

Includes intelligent features such as motion detection, intrusion detection, and line crossing detection for enhanced security monitoring.

Perimeter protection system

Provides smart alerts for unauthorized entry and boundary violations with improved event filtering accuracy.

Smart playback and video search

Enables fast retrieval of recordings based on time or event-based filtering for efficient investigations.

Four SATA storage interface support

Equipped with 4 SATA ports supporting high-capacity hard drives for extended video storage duration.

Dual display output support

Supports HDMI and VGA simultaneous output for flexible monitoring in control room setups.

Remote access and mobile monitoring

Allows live viewing and playback through mobile applications and web platforms for remote surveillance management.

Product Specifications

• Model: DS-7332HQHI-K4
• Video input: 32 channel analog (HDTVI, AHD, CVI, CVBS)
• IP camera support: Up to 40 channels depending on configuration
• Video compression: H.265 Pro+, H.265, H.264+, H.264
• Recording resolution: Up to 4MP Lite across all channels
• Video output: 1 HDMI (up to 4K resolution) and 1 VGA
• Audio input: 4 channel RCA audio input
• Audio output: 1 channel RCA audio output
• Two-way audio: Supported
• Storage: 4 SATA interfaces supporting up to 10TB per hard drive
• Network interface: 1 RJ-45 10/100/1000 Mbps Ethernet port
• USB ports: 2 USB 2.0 ports and 1 USB 3.0 port
• Network protocols: TCP/IP, DHCP, DNS, NTP, Hik-Connect, ONVIF
• Smart features: Motion detection, VCA analytics, perimeter protection
• Frame rate: Real-time recording depending on channel configuration
• Power supply: 100 to 240 VAC
• Power consumption: Up to 45 W (without hard drives)
• Operating temperature: -10 degrees Celsius to 55 degrees Celsius
• Dimensions: 440 mm x 390 mm x 70 mm
• Weight: Up to 7 kg (without HDD)
• Application: Suitable for large commercial facilities, industrial sites, institutions, warehouses, retail chains, and multi-zone CCTV surveillance systems
