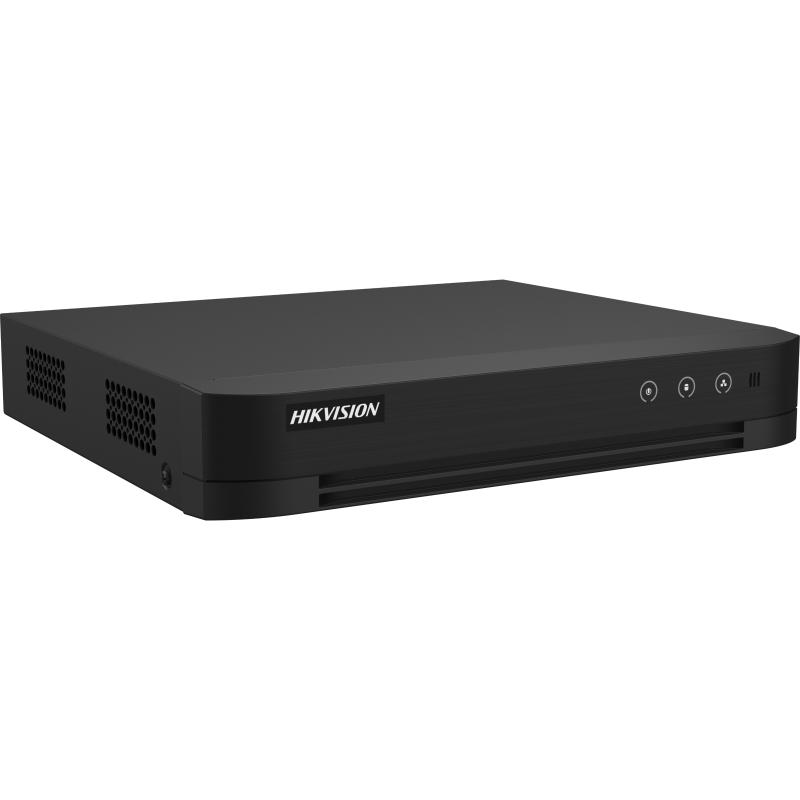

Hikvision DS-7208HGHI-M1/T 8-Channel Turbo HD DVR Recorder for CCTV Surveillance Systems
The Hikvision DS-7208HGHI-M1/T is an 8-channel Turbo HD digital video recorder designed for reliable CCTV surveillance in homes, offices, retail shops, and small commercial installations. It supports multiple video input formats including HDTVI, AHD, HDCVI, CVBS, and IP cameras, allowing flexible integration of both analog and hybrid surveillance systems. With H.265 Pro+ compression technology, it efficiently reduces storage usage while maintaining clear and stable video recording quality. The DVR also supports remote access through mobile and desktop applications, enabling users to monitor live footage and playback recordings from any location.
Product Features
8-Channel Hybrid Camera Support
The DS-7208HGHI-M1/T supports up to 8 analog HD cameras and additional IP cameras depending on system configuration. This makes it suitable for expanding existing CCTV setups or building new small-to-medium surveillance systems with flexible camera integration.
H.265 Pro+ Video Compression Technology
The DVR uses H.265 Pro+ compression to significantly reduce video file sizes and bandwidth consumption. This allows longer recording durations on a single hard drive while maintaining efficient storage performance and consistent video clarity.
Motion Detection 2.0 Intelligent Analytics
It features advanced motion detection that distinguishes between human and vehicle movement and general environmental motion. This reduces false alarms caused by lighting changes, animals, or background disturbances, improving overall detection accuracy.
Remote Viewing and Mobile Access
The system supports remote monitoring through Hik-Connect, enabling users to view live video, access playback recordings, and receive alerts on smartphones, tablets, and computers. This ensures continuous surveillance access from anywhere with internet connectivity.
HDMI and VGA Simultaneous Output
It includes HDMI and VGA ports for simultaneous display output to monitors or televisions. This allows real-time viewing and playback in control rooms, offices, or home installations without requiring additional equipment.
Product Specifications
- Model: DS-7208HGHI-M1/T
- Channels: 8 analog channels with hybrid IP camera support
- Supported Video Formats: HDTVI, AHD, HDCVI, CVBS, IP cameras
- Video Compression: H.265 Pro+, H.265, H.264
- Maximum Recording Resolution: Up to 1080p Lite @ 15 fps
- Frame Rate: Up to 15 fps per channel depending on configuration
- IP Camera Support: Up to 10 IP channels (varies by setup)
- Storage: 1 SATA interface supporting up to 4TB or higher HDD capacity depending on firmware
- Video Outputs: HDMI and VGA simultaneous output
- Audio Support: 1 audio input (RCA), 1 audio output (RCA), plus coaxial audio support on compatible cameras
- Network Interface: RJ-45 Ethernet 10/100 Mbps
- Remote Access: Hik-Connect mobile and web platform support
- Power Supply: 12V DC, 1.5A
- Operating Conditions: Indoor CCTV surveillance installations
- Dimensions: Approx. 260 × 222 × 45 mm
- Weight: Less than 1 kg (without hard drive)
