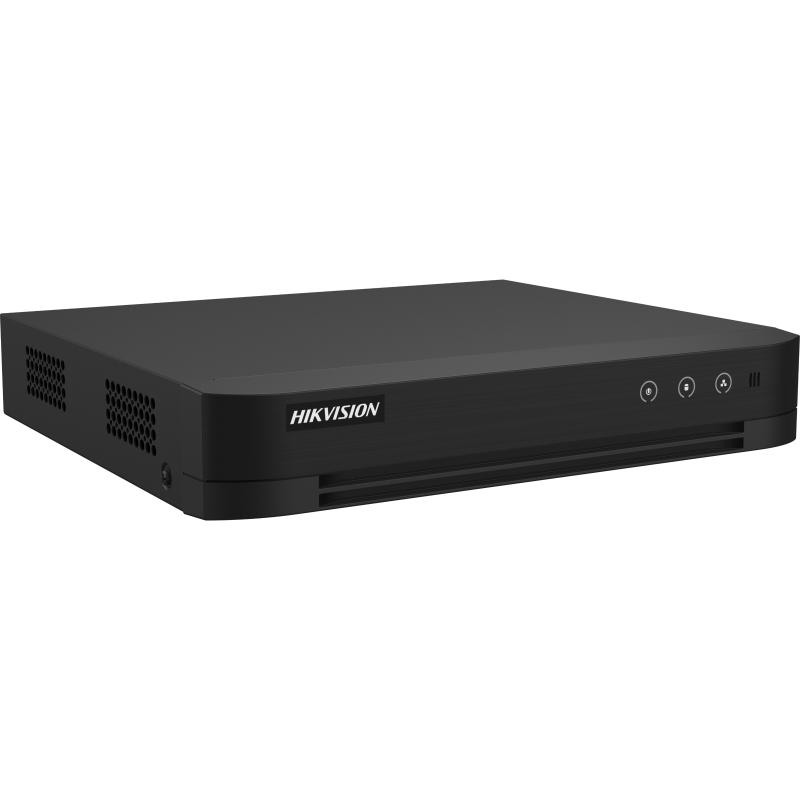

Hikvision DS-7208HGHI-M1/T 8-Channel Turbo HD DVR Recorder for CCTV Surveillance Systems

The Hikvision DS-7208HGHI-M1/T is an 8-channel Turbo HD digital video recorder designed for dependable CCTV surveillance in homes, offices, retail stores, and small to medium commercial installations. It supports multiple video input formats including HDTVI, AHD, HDCVI, CVBS, and IP cameras, making it suitable for both traditional analog setups and modern hybrid security systems. With H.265 Pro+ compression technology, it reduces storage usage while maintaining stable and clear video recording quality. The DVR also enables remote access through mobile and desktop applications, allowing users to monitor live video and playback footage from any location.

Product Features

8-Channel Hybrid Camera Compatibility

The DS-7208HGHI-M1/T supports up to 8 analog HD cameras and additional IP cameras depending on system configuration. This provides flexibility for expanding or upgrading surveillance systems without replacing existing infrastructure.

H.265 Pro+ Video Compression Efficiency

The DVR uses H.265 Pro+ compression to significantly reduce video file sizes and bandwidth consumption. This allows longer recording times on a single hard drive while maintaining efficient storage performance and clear video playback.

Motion Detection 2.0 Smart Analytics

It features intelligent motion detection that distinguishes between human and vehicle movement and general environmental activity. This reduces false alarms caused by lighting changes, animals, or background motion, improving event accuracy.

Remote Viewing and Mobile Access

The system supports remote monitoring through Hik-Connect, enabling users to view live footage, access playback recordings, and receive alerts on smartphones, tablets, and computers. This ensures continuous surveillance access from anywhere with internet connectivity.

HDMI and VGA Simultaneous Output

The DVR includes HDMI and VGA ports for simultaneous connection to monitors or televisions. This allows real-time viewing and playback in control rooms, offices, or home installations without requiring additional equipment.

Product Specifications

• Model: DS-7208HGHI-M1/T
• Channels: 8 analog channels with hybrid IP camera support
• Supported Video Formats: HDTVI, AHD, HDCVI, CVBS, IP cameras
• Video Compression: H.265 Pro+, H.265, H.264
• Maximum Recording Resolution: Up to 1080p Lite @ 15 fps
• Frame Rate: Up to 15 fps per channel depending on configuration
• IP Camera Support: Up to 10 IP channels (varies by setup)
• Storage: 1 SATA interface supporting up to 4TB hard drive per disk
• Video Outputs: HDMI and VGA simultaneous output
• Audio Support: 1 audio input (RCA), 1 audio output (RCA), plus coaxial audio support on compatible cameras
• Network Interface: RJ-45 Ethernet 10/100 Mbps
• Remote Access: Hik-Connect mobile and web platform support
• Power Supply: 12V DC, 1.5A
• Operating Conditions: Indoor CCTV surveillance installations
• Dimensions: Approx. 263 × 220 × 48 mm
• Weight: Less than 1 kg (without HDD)
