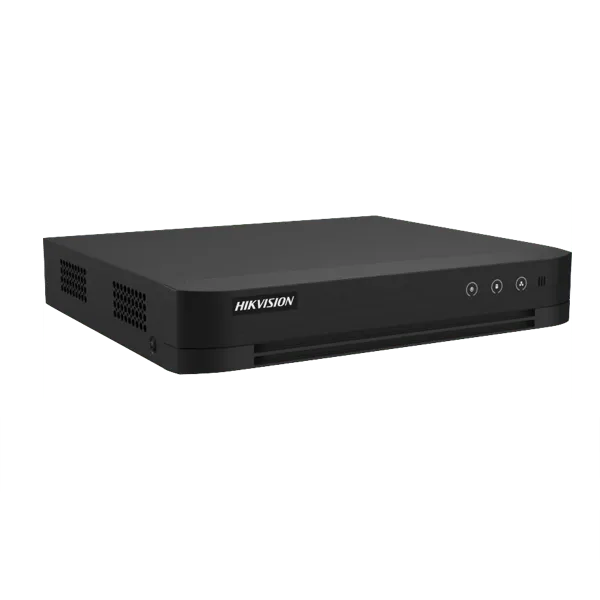

Hikvision iDS-7204HQHI-M1/XT 4-Channel AcuSense Turbo HD DVR Recorder for Smart CCTV Surveillance Systems
The Hikvision iDS-7204HQHI-M1/XT is a 4-channel AcuSense Turbo HD digital video recorder designed for intelligent CCTV surveillance in homes, small offices, retail shops, and compact business environments. It supports multiple video input formats including HDTVI, AHD, HDCVI, CVBS, and IP cameras, making it suitable for both analog systems and modern hybrid security upgrades. With H.265 Pro+ compression technology and AI-powered AcuSense Motion Detection 2.0, it reduces storage usage while improving detection accuracy and minimizing false alarms. The DVR also supports remote access via mobile and desktop platforms, enabling users to monitor live footage and playback recordings from any location with internet connectivity.
Product Features
4-Channel Hybrid Camera Support
The iDS-7204HQHI-M1/XT supports up to 4 analog HD cameras and additional IP cameras depending on system configuration. This makes it ideal for small surveillance setups that require reliable coverage with the flexibility to expand using IP-based cameras.
H.265 Pro+ Video Compression Efficiency
The DVR uses H.265 Pro+ compression to significantly reduce video file sizes and bandwidth usage. This enables longer recording durations on a single hard drive while maintaining efficient storage performance and consistent video clarity.
AcuSense 2.0 AI-Based Motion Detection
It features advanced AcuSense Motion Detection 2.0, which uses deep learning algorithms to distinguish between human and vehicle movement and irrelevant motion such as animals, shadows, or lighting changes. This improves alarm accuracy and reduces unnecessary recordings.
Flexible Video Input Compatibility
The system supports HDTVI, AHD, HDCVI, CVBS, and IP camera inputs, allowing seamless integration of existing analog cameras with modern IP surveillance systems. This provides a cost-effective upgrade path for evolving security needs.
Remote Viewing and Mobile Access
The DVR supports Hik-Connect for remote monitoring, allowing users to view live video, access playback recordings, and receive real-time alerts on smartphones, tablets, and computers. This ensures continuous surveillance access from anywhere with internet connectivity.
HDMI and VGA Simultaneous Output
It includes HDMI and VGA ports for simultaneous display output to monitors or televisions. This allows real-time monitoring and playback in home, office, or professional security environments without additional hardware.
Product Specifications
- Model: iDS-7204HQHI-M1/XT
- Channels: 4 analog channels with hybrid IP camera support
- Supported Video Formats: HDTVI, AHD, HDCVI, CVBS, IP cameras
- Video Compression: H.265 Pro+, H.265, H.264
- Maximum Recording Resolution: Up to 3K lite / 1080p depending on configuration
- Frame Rate: Up to 15 fps per channel depending on stream settings
- IP Camera Support: Up to 6 IP channels (up to 6 MP depending on mode)
- Storage: 1 SATA interface supporting up to 10TB hard drive
- Video Outputs: HDMI and VGA simultaneous output
- Audio Support: 1 audio input (RCA) and audio over coaxial support on compatible cameras
- Network Interface: RJ-45 Ethernet 10/100 Mbps
- Remote Access: Hik-Connect mobile and web platform support
- Power Supply: 12V DC, 1.5A
- Operating Conditions: Indoor CCTV surveillance installations
- Dimensions: Approximately 200 × 200 × 48 mm
- Weight: Approximately 1 kg (without hard drive)
