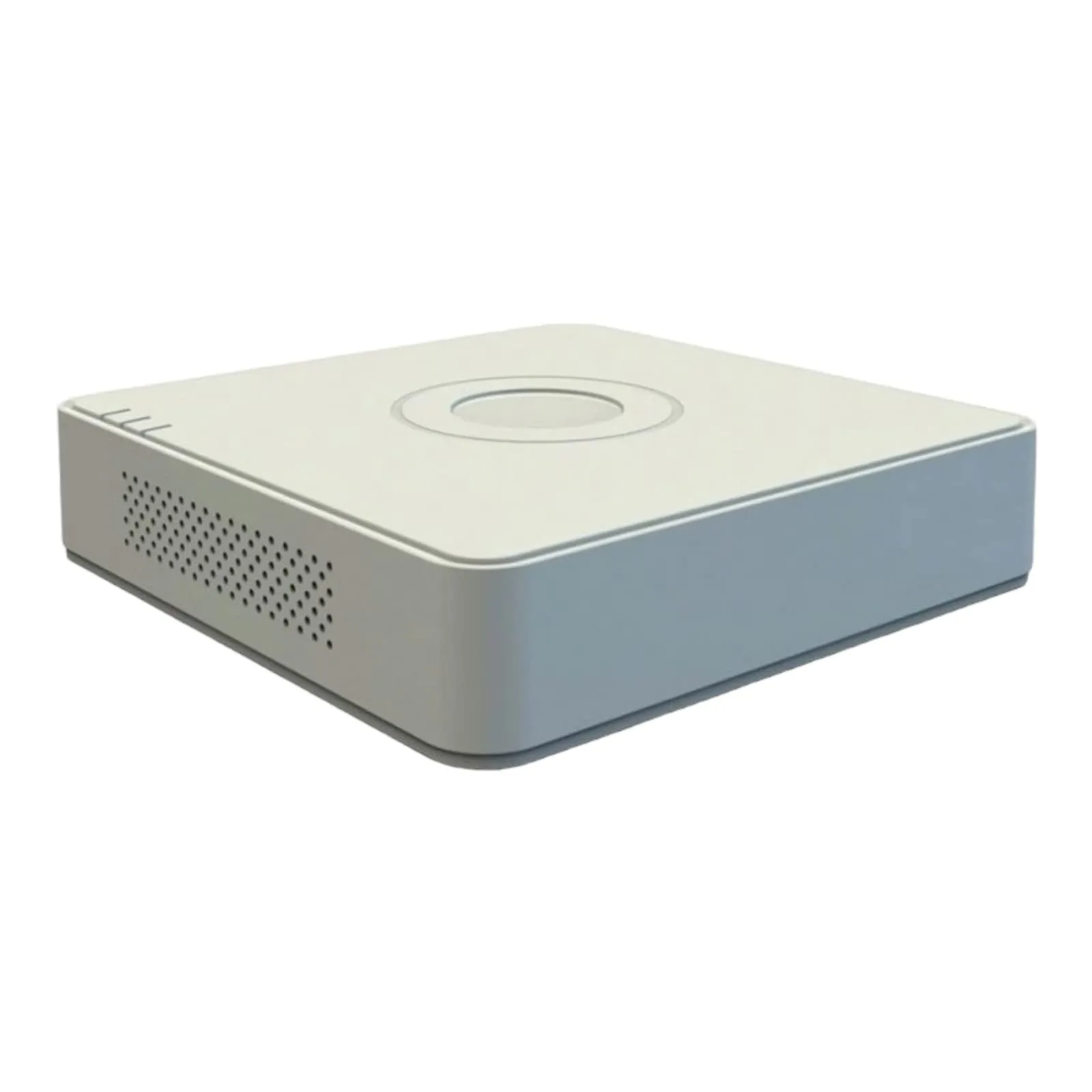

Hikvision iDS-7104HQHI-M1/S 4-Channel AcuSense Turbo HD DVR Recorder for CCTV Surveillance Systems

The Hikvision iDS-7104HQHI-M1/S is a compact 4-channel AcuSense Turbo HD digital video recorder designed for intelligent and reliable CCTV surveillance in homes, small businesses, offices, and retail environments. It supports multiple video input formats including HDTVI, AHD, HDCVI, CVBS, and IP cameras, allowing flexible integration of analog and hybrid security systems. With advanced H.265 Pro+ compression technology and AI-based Motion Detection 2.0, it reduces storage usage while improving detection accuracy. The DVR also supports remote access via mobile and desktop platforms, enabling users to monitor live footage and playback recordings from any location.

Product Features

4-Channel Hybrid Camera Support

The iDS-7104HQHI-M1/S supports up to 4 analog HD cameras and additional IP cameras depending on configuration. This makes it suitable for small surveillance setups that require reliable coverage with the ability to expand using IP technology.

H.265 Pro+ Video Compression Efficiency

It uses H.265 Pro+ compression to significantly reduce video file sizes and bandwidth usage. This allows longer recording duration on a single hard drive while maintaining efficient storage performance and clear video quality.

AcuSense Motion Detection 2.0 AI Technology

The system features deep learning-based Motion Detection 2.0, capable of distinguishing human and vehicle targets from irrelevant motion such as animals, shadows, or lighting changes. This reduces false alarms and improves event accuracy and search efficiency.

Flexible IP and Analog Integration

The DVR supports HDTVI, AHD, HDCVI, CVBS, and IP video inputs, allowing seamless integration of existing analog cameras with modern IP-based surveillance systems for flexible upgrades.

Remote Viewing and Mobile Access

It supports Hik-Connect for remote monitoring, allowing users to view live video, playback recordings, and receive alerts on smartphones, tablets, and computers. This ensures continuous surveillance access from any location with internet connectivity.

HDMI and VGA Output Display

The device includes HDMI and VGA outputs for direct connection to monitors or televisions, enabling real-time viewing and playback in home or professional monitoring environments.

Product Specifications

• Model: iDS-7104HQHI-M1/S
• Channels: 4 analog channels with hybrid IP camera support
• Supported Video Formats: HDTVI, AHD, HDCVI, CVBS, IP cameras
• Video Compression: H.265 Pro+, H.265, H.264
• Maximum Recording Resolution: Up to 1080p @ 15 fps
• Frame Rate: Up to 15 fps per channel depending on configuration
• IP Camera Support: Up to 6 IP channels (up to 6 MP depending on mode)
• Storage: 1 SATA interface supporting up to 10TB hard drive
• Video Outputs: HDMI and VGA simultaneous output
• Audio Support: 1 audio input (RCA) and audio over coaxial on compatible cameras
• Network Interface: RJ-45 Ethernet 10/100 Mbps
• Remote Access: Hik-Connect mobile and web platform support
• Power Supply: 12V DC, 1.5A
• Operating Conditions: Indoor CCTV surveillance installations
• Dimensions: 200 × 200 × 48 mm
• Weight: Approximately 1 kg (without hard drive)
