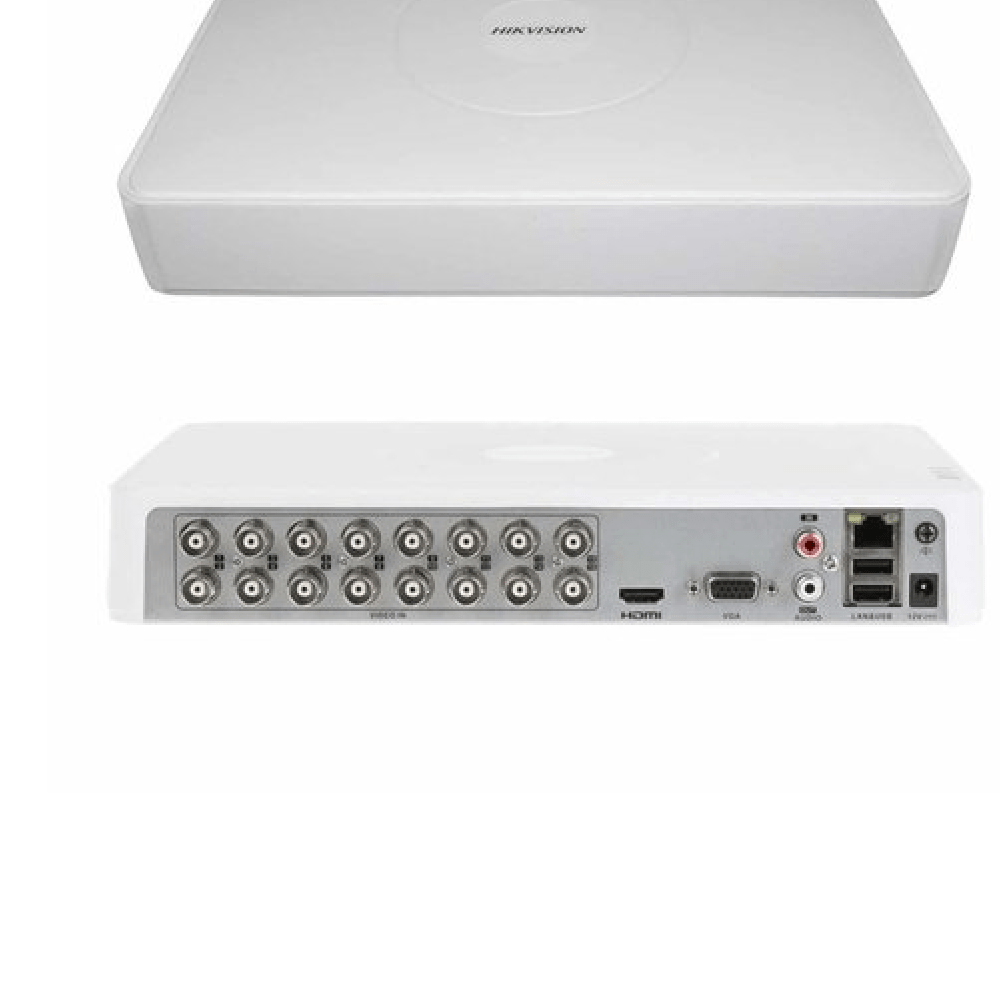

Hikvision DS-7116HGHI-M1/T 16-Channel Turbo HD DVR Recorder for CCTV Surveillance Systems

The Hikvision DS-7116HGHI-M1/T is a 16-channel Turbo HD digital video recorder designed for reliable and scalable CCTV surveillance in residential estates, commercial buildings, retail spaces, schools, and industrial environments. It supports multiple video input formats including HDTVI, AHD, HDCVI, CVBS, and IP cameras, making it suitable for both analog and hybrid surveillance systems. With H.265 Pro+ compression technology, it reduces storage consumption while maintaining clear and stable recording quality. The DVR also supports remote access through mobile and desktop applications, enabling users to monitor live video and playback recordings from any location.

Product Features

16-Channel Hybrid Camera Support

The DS-7116HGHI-M1/T supports up to 16 analog HD cameras and additional IP cameras in hybrid mode. This allows flexible system expansion for large installations that require wide-area surveillance coverage and mixed camera integration.

H.265 Pro+ Video Compression Efficiency

The DVR uses H.265 Pro+ compression to significantly reduce video file sizes and bandwidth usage. This enables longer recording durations on a single hard drive while maintaining efficient storage performance and clear video playback quality.

Motion Detection 2.0 Intelligent Analytics

The system features deep learning-based motion detection that classifies human and vehicle movement while filtering out irrelevant motion such as animals, shadows, or lighting changes. This improves alert accuracy and reduces false alarms.

Remote Viewing and Mobile Access

The DVR supports remote monitoring through Hik-Connect, allowing users to view live footage, access playback, and receive notifications on smartphones, tablets, and computers. This ensures continuous surveillance access from any location with internet connectivity.

HDMI and VGA Simultaneous Output

It includes HDMI and VGA ports that support simultaneous display output to monitors or televisions. This allows flexible installation for control rooms, offices, and standard security setups requiring real-time monitoring.

Product Specifications

• Model: DS-7116HGHI-M1/T
• Channels: 16 analog channels with hybrid IP camera support
• Supported Video Formats: HDTVI, AHD, HDCVI, CVBS, IP cameras
• Video Compression: H.265 Pro+, H.265, H.264
• Maximum Recording Resolution: Up to 1080p Lite @ 15 fps
• Frame Rate: Up to 15 fps per channel depending on configuration
• IP Camera Support: Up to 18 IP channels (varies by setup)
• Storage: 1 SATA interface supporting up to 6TB hard drive
• Video Outputs: HDMI and VGA simultaneous output
• Audio Support: 1 audio input (RCA), 1 audio output (RCA), and coaxial audio support on compatible cameras
• Network Interface: RJ-45 Ethernet 10/100 Mbps
• Remote Access: Hik-Connect mobile and web platform support
• Power Supply: 12V DC, 2A
• Operating Conditions: Indoor CCTV surveillance installations
• Dimensions: Approx. 285 × 210 × 48 mm
• Weight: Approx. 1.8 kg (without HDD)
