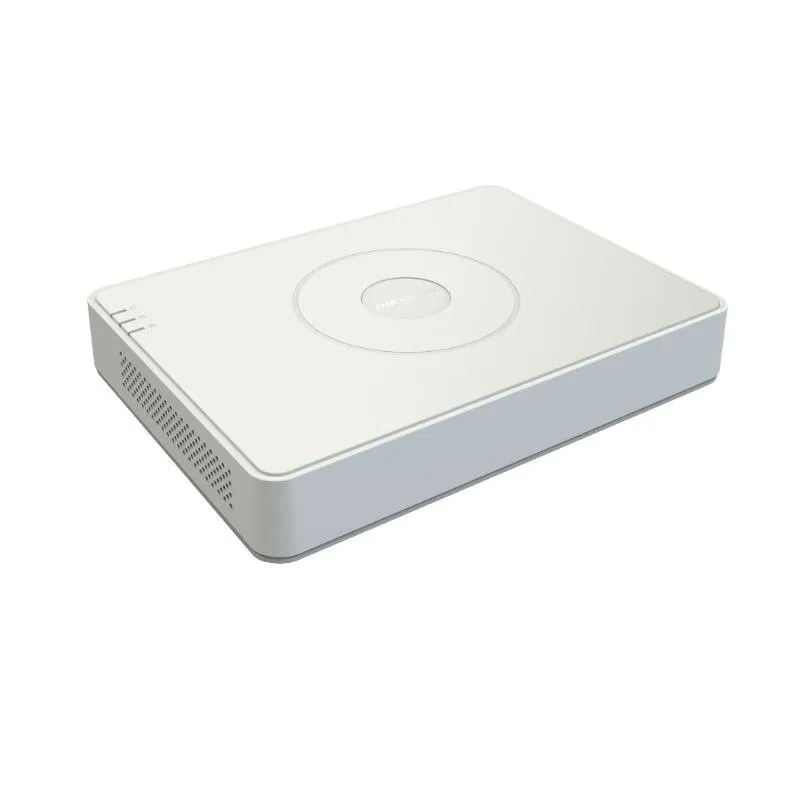

Hikvision iDS-7116HQHI-M1/S 16 Channel AcuSense DVR for CCTV Security Systems

The Hikvision iDS-7116HQHI-M1/S is a professional 16-channel AcuSense DVR designed for large-scale CCTV surveillance systems in Kenya, making it ideal for commercial buildings, institutions, warehouses, and multi-site security installations. Built with advanced deep learning technology, it provides intelligent detection of humans and vehicles, significantly reducing false alarms and improving monitoring accuracy. This hybrid DVR supports multiple analog and IP camera formats, offering flexible integration with existing systems. With H.265 Pro+ compression, high-resolution recording up to 3K and 5MP Lite, and remote access capabilities, it delivers a reliable, scalable, and efficient security solution for demanding environments.

Product Features

AcuSense AI human and vehicle detection

Uses deep learning algorithms to accurately identify real security threats by distinguishing humans and vehicles from irrelevant motion such as animals or environmental changes.

16 channel high-capacity DVR system

Supports up to 16 analog cameras, making it suitable for large properties and complex surveillance installations requiring wide coverage.

Expanded IP camera support

Allows integration of up to 24 IP cameras, providing flexible system expansion for growing security needs.

Motion detection 2.0 with smart search

Enhances recording accuracy and enables quick search and playback based on human or vehicle activity.

Perimeter protection with smart alerts

Supports intrusion detection and line crossing alerts with intelligent classification for improved perimeter security control.

Facial detection capability

Captures and analyzes facial images for enhanced identification and monitoring in sensitive security areas.

Multi-format camera compatibility

Works with HDTVI, AHD, CVI, CVBS, and IP cameras, ensuring seamless integration with different CCTV systems.

H.265 Pro+ compression technology

Reduces storage space and bandwidth usage while maintaining high-quality video recording performance.

High-resolution video recording

Supports recording up to 3K and 5MP Lite resolution, delivering clear and detailed surveillance footage.

Audio support and two-way communication

Provides audio input and output with support for two-way communication through compatible camera systems.

Remote viewing and mobile access

Enables live monitoring and playback through mobile apps and web platforms for convenient remote surveillance management.

HDMI 4K and VGA output

Offers high-definition display options for real-time monitoring on modern screens and monitors.

Product Specifications

• Model: iDS-7116HQHI-M1/S
• Video input: 16 channel analog (HDTVI, AHD, CVI, CVBS)
• IP camera support: Up to 24 channels (maximum 6 MP resolution)
• Video compression: H.265 Pro+, H.265, H.264+, H.264
• Recording resolution: Up to 3K Lite and 5MP Lite
• Video output: 1 HDMI (up to 4K resolution) and 1 VGA
• Audio input: 1 channel RCA plus up to 16 channels via coaxial cable
• Audio output: 1 channel RCA
• Two-way audio: Supported
• Storage: 1 SATA interface supporting up to 10 TB hard drive
• Network interface: 1 RJ-45 10/100/1000 Mbps Ethernet port
• Incoming bandwidth: Up to 96 Mbps
• USB ports: 2 USB 2.0 ports
• Network protocols: TCP/IP, DHCP, DNS, NTP, ONVIF, Hik-Connect
• Remote access: Mobile application and web browser support
• Maximum remote users: Up to 128 users
• Power supply: 12 V DC
• Power consumption: Up to 24 W
• Operating temperature: -10 degrees Celsius to 55 degrees Celsius
• Dimensions: 285 mm x 210 mm x 48 mm
• Application: Suitable for large commercial buildings, schools, warehouses, retail chains, and institutional CCTV installations
