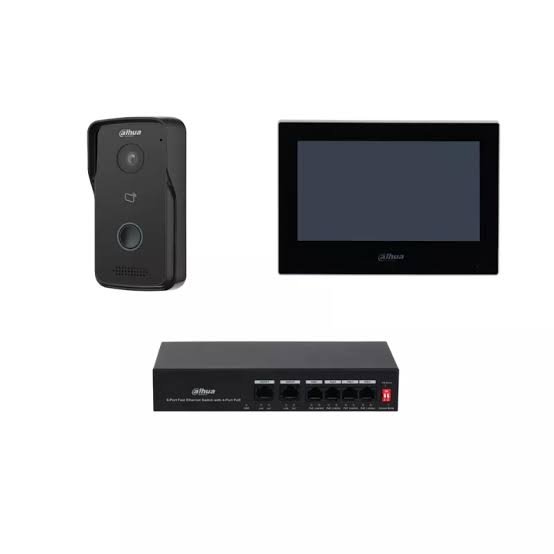

Dahua KTP03 IP Video Intercom Kit

The Dahua KTP03 IP Video Intercom Kit is a complete IP-based access control and visitor management solution designed for homes, villas, apartments, offices, and small commercial properties. The kit includes the Dahua DHI-VTO2111D-P-S3 IP Villa Door Station, the DHI-VTH2621G-P 7-inch Indoor Monitor, and the DH-PFS3006-4ET-36 PoE Switch for simple installation and reliable communication. Featuring a 2MP HD camera, two-way audio, remote door unlocking, IC card access, mobile app support, infrared night vision, and Standard PoE, the KTP03 provides secure and convenient visitor management while allowing users to monitor and control access from anywhere using the Dahua DMSS mobile application.

Product Features

Complete IP Video Intercom Kit

The kit includes a 2MP IP villa door station, a 7-inch IP indoor monitor, and a 4-Port PoE switch, providing a complete solution for residential and small business access control.

2MP HD Outdoor Camera

The outdoor station features a 2MP CMOS image sensor with Digital Wide Dynamic Range (DWDR), infrared illumination, and automatic day/night switching to provide clear video during both daytime and low-light conditions.

7-Inch Capacitive Touchscreen Monitor

The indoor monitor is equipped with a 7-inch TFT capacitive touchscreen with a resolution of 1024 × 600, delivering a clear live view and an intuitive user interface for visitor communication and door control.

Two-Way Audio Communication

Built-in microphones and speakers enable full-duplex two-way audio, allowing users to communicate clearly with visitors before granting access. Echo suppression and digital noise reduction ensure high-quality voice communication.

Multiple Door Unlock Methods

The system supports multiple access methods including IC card unlocking, indoor monitor unlocking, and remote unlocking through the Dahua DMSS mobile application for enhanced convenience and security.

Remote Monitoring with Dahua DMSS

Users can receive visitor calls, view live video, communicate with visitors, and unlock doors remotely using the Dahua DMSS mobile application from anywhere with an internet connection.

Standard PoE Support

Both the indoor monitor and outdoor station support Standard PoE, simplifying installation by delivering power and data over a single Ethernet cable. The included PoE switch further streamlines deployment.

Supports IP Camera Monitoring

The indoor monitor can display live video from compatible Dahua IP cameras, allowing users to monitor multiple areas of the property from a single interface.

Card Access Control

The outdoor station supports up to 10,000 IC cards, making it suitable for homes, gated communities, and offices that require secure card-based access.

Weatherproof Outdoor Station

The outdoor unit is IP65-rated for protection against dust and water and is suitable for outdoor installation. It also features IK04 impact resistance for enhanced durability.

Product Specifications

• Brand: Dahua
• Model: KTP03
• Product Type: IP Video Intercom Kit
• Kit Includes:
  • DHI-VTO2111D-P-S3 IP Villa Door Station
  • DHI-VTH2621G-P 7-Inch Indoor Monitor
  • DH-PFS3006-4ET-36 PoE Switch
• Door Station Camera: 2MP CMOS
• Indoor Monitor Display: 7-Inch TFT Capacitive Touchscreen
• Screen Resolution: 1024 × 600
• Video Compression:265, H.264
• Viewing Angle: 107° Horizontal, 60° Vertical, 122° Diagonal
• Audio: Full-Duplex Two-Way Audio
• Audio Features: Echo Suppression and Digital Noise Reduction
• Communication Protocol: SIP
• Network Protocols: IPv4, TCP, UDP, RTSP, RTP, DNS, CGI, ONVIF
• Network Port: 10/100 Mbps Ethernet
• Power Supply: Standard PoE or 12V DC
• Card Capacity: Up to 10,000 IC Cards
• Door Unlock Methods: IC Card, Indoor Monitor, Mobile App
• Alarm Inputs: 6
• Alarm Outputs: 1
• Storage: MicroSD Card (Up to 64GB on Indoor Monitor)
• Outdoor Protection Rating: IP65 and IK04
• Operating Temperature (Door Station): -30°C to +60°C
• Operating Temperature (Indoor Monitor): -10°C to +55°C
• Mobile Application: Dahua DMSS
• Applications: Homes, villas, apartments, offices, gated communities, residential estates, and small commercial buildings
