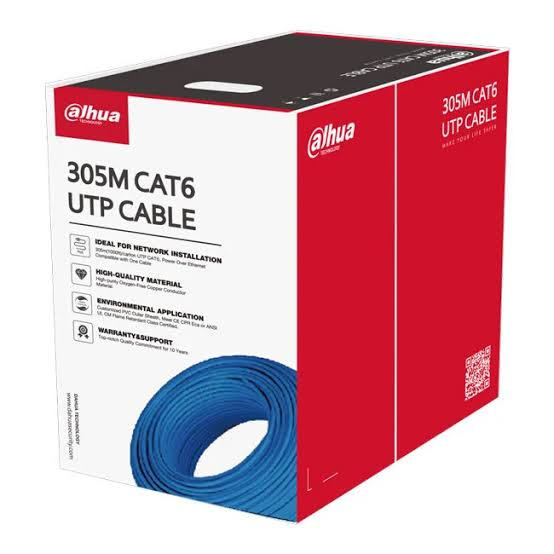

Dahua DH-PFM922-6UN 305m Outdoor CAT6 UTP Network Cable

The Dahua DH-PFM922-6UN 305m Outdoor CAT6 UTP Network Cable is a high-quality networking cable designed for professional IP surveillance systems, structured cabling, and outdoor Ethernet installations. With a 305-metre cable length, CAT6 performance, and support for Power over Ethernet (PoE), this cable provides reliable high-speed data transmission for IP cameras, NVRs, network switches, wireless access points, and other Ethernet-enabled devices. Featuring a durable PE outer sheath for enhanced weather resistance, 23 AWG CCA conductors, HDPE insulation, and compliance with RoHS standards, the DH-PFM922-6UN is ideal for commercial, industrial, and residential outdoor networking applications.

Product Features

305-Metre Cable Length

Supplied in a convenient 305-metre pull box, the cable is ideal for large-scale CCTV, networking, and structured cabling installations while minimizing cable joints.

CAT6 High-Speed Performance

The CAT6 UTP cable supports Gigabit Ethernet networking, providing stable and high-speed data transmission for modern network infrastructure.

Power over Ethernet (PoE) Support

Designed to support PoE applications, the cable allows both power and data to be transmitted through a single Ethernet cable, reducing installation costs and simplifying deployment.

Outdoor PE Jacket

The black polyethylene (PE) outer sheath offers excellent resistance to moisture, sunlight, and harsh outdoor conditions, making the cable suitable for external installations.

23 AWG Conductors

The cable uses 23 AWG Copper Clad Aluminium (CCA) conductors to provide dependable electrical performance for networking and surveillance applications.

HDPE Insulation

High-Density Polyethylene (HDPE) insulation improves signal integrity while reducing crosstalk and electromagnetic interference for reliable data transmission.

Durable Construction

A polyester rip cord, PE separator, PET wrapping tape, and robust outer sheath enhance durability, simplify installation, and protect the cable during long-term outdoor use.

Optimized for CCTV Systems

The cable is ideal for connecting IP cameras, NVRs, PoE switches, wireless access points, and other Ethernet devices used in surveillance and networking projects.

RoHS Compliant Materials

Manufactured using environmentally friendly materials that comply with RoHS requirements, ensuring safe and reliable operation.

10-Year Warranty

Dahua backs the cable with a 10-year warranty, demonstrating confidence in its manufacturing quality and long-term reliability.

Product Specifications

• Brand: Dahua
• Model: DH-PFM922-6UN
• Product Type: Outdoor CAT6 UTP Network Cable
• Cable Category: CAT6 U/UTP
• Cable Length: 305 metres
• Application: Outdoor Networking
• Conductor Material: Copper Clad Aluminium (CCA)
• Copper Content: 22%–31%
• Conductor Size: 23 AWG
• Conductor Diameter:57 ± 0.01 mm
• Insulation Material: HDPE
• Outer Sheath Material: MDPE (Black)
• Outer Diameter:6 ± 0.3 mm
• Characteristic Impedance: 100 ± 15 Ω
• Maximum DC Resistance:5 Ω/100 m
• Minimum Insulation Resistance: 5000 MΩ·km
• Power over Ethernet: Supported
• Operating Temperature: -20°C to +60°C
• Installation Temperature: 0°C to +50°C
• Storage Temperature: -10°C to +40°C
• Storage Humidity: Less than 60% RH
• Packaging: 305 m Pull Box
• Compliance: RoHS
• Applications: IP CCTV systems, structured cabling, Gigabit Ethernet networks, PoE installations, offices, schools, warehouses, factories, residential estates, and commercial networking
