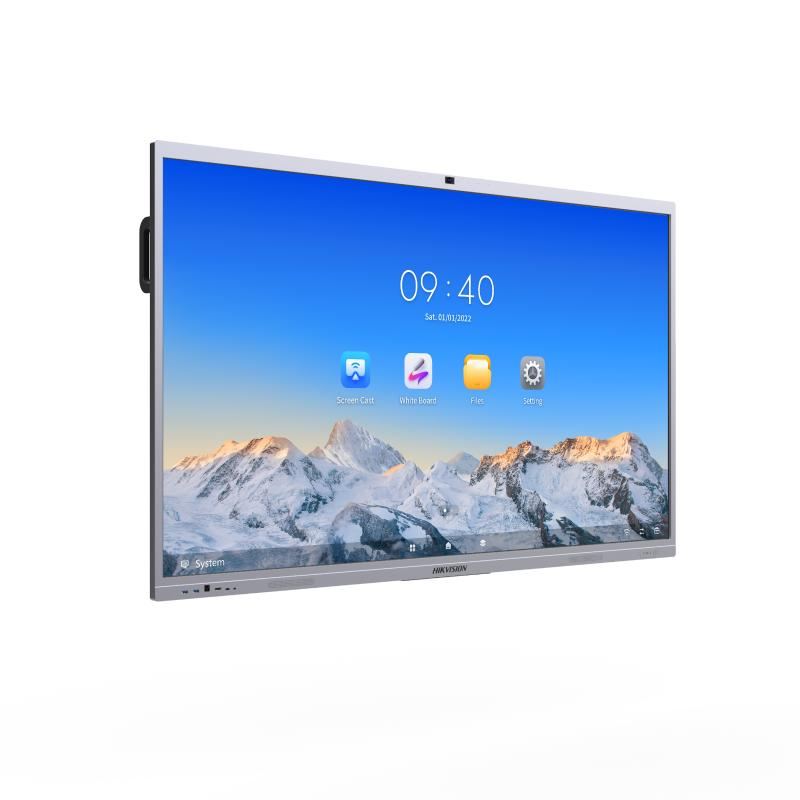

Hikvision DS-D5C86RB/B 86-Inch 4K Interactive Flat Panel Display (New Model)

The Hikvision DS-D5C86RB/B 86-inch 4K Interactive Flat Panel Display is a professional all-in-one collaboration screen designed for advanced meetings, classrooms, training centres, and control rooms. It combines ultra-high-definition 4K display technology with a highly responsive multi-touch system, allowing smooth writing, annotation, and interactive presentations. Built with an integrated Android smart system, it supports wireless collaboration, digital whiteboarding, and seamless content sharing without requiring external devices. Its large 86-inch anti-glare screen, powerful processing hardware, and commercial-grade durability make it suitable for continuous operation in demanding professional environments such as boardrooms and institutions in Kenya.

Product Features

Ultra HD 4K Large Display

The 86-inch screen delivers 3840 × 2160 resolution, ensuring sharp, detailed visuals suitable for presentations, video conferencing, and high-impact digital learning environments.

Advanced Multi-Touch Interaction

Supports up to 50-point infrared touch input, allowing multiple users to write, draw, and interact simultaneously with smooth and precise response.

Anti-Glare Tempered Glass

The display uses anti-glare tempered glass to reduce reflections and improve visibility in bright rooms while maintaining durability and scratch resistance.

Built-In Android Smart System

Integrated Android operating system allows direct access to apps, files, and collaboration tools without requiring a separate PC.

Optional Windows OPS Support

Supports OPS module integration for Windows-based environments, providing flexibility for enterprise software and advanced computing needs.

Built-In Network Switch Function

Integrated network switch capability reduces the need for external networking equipment, simplifying installation in professional setups.

Wireless Screen Sharing

Enables wireless projection from laptops, smartphones, and tablets, allowing quick and cable-free presentations.

Intelligent Temperature Control

Built-in thermal management system ensures stable performance during long hours of continuous operation.

Integrated Audio System

Comes with built-in stereo speakers for clear sound output during meetings, presentations, and video playback.

Commercial-Grade Build Quality

Designed for continuous professional use with durable construction suitable for classrooms, boardrooms, and control centres.

Product Specifications

• Brand: Hikvision
• Model: DS-D5C86RB/B
• Product Type: Interactive Flat Panel Display
• Screen Size: 86 inches
• Resolution: 3840 × 2160 (4K UHD)
• Display Type: DLED backlit LCD
• Panel Type: VA
• Touch Technology: Infrared multi-touch
• Touch Points: Up to 50-point touch
• Touch Response Time: ≤ 5 ms
• Brightness: 400 cd/m² (typical)
• Contrast Ratio: 5000:1 (static), 30,000:1 (dynamic)
• Color Depth: 10-bit
• Viewing Angle: 178° horizontal / 178° vertical
• Refresh Rate: 60 Hz
• Operating System: Android 14 (built-in system)
• RAM: 8 GB
• Internal Storage: 128 GB
• Processor: Multi-core ARM Cortex (A76 + A55 architecture)
• GPU: Mali-G610 MC4
• Camera: Built-in 8MP camera support (configuration dependent)
• Microphone: 8-array microphone system support (configuration dependent)
• Speakers: Built-in stereo speakers (2 × 20W + 25W system design)
• Connectivity Ports: HDMI IN, HDMI OUT, USB, Type-C, LAN, RS232
• Wireless Connectivity: Wi-Fi 6 supported
• Bluetooth: Supported (BLE 5.1)
• Network: Dual Gigabit Ethernet ports
• Glass Type: Anti-glare tempered safety glass
• Surface Hardness: 9H
• VESA Mount: 800 × 600 mm
• Power Supply: AC 100–240V, 50/60Hz
• Power Consumption: Approx. ≤205W
• Standby Power: ≤0.5W
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 10% to 90% non-condensing
• Installation Type: Wall-mounted or floor stand compatible
• Application: Boardrooms, classrooms, training centres, command rooms, and corporate collaboration spaces
• Condition: New genuine Hikvision product
