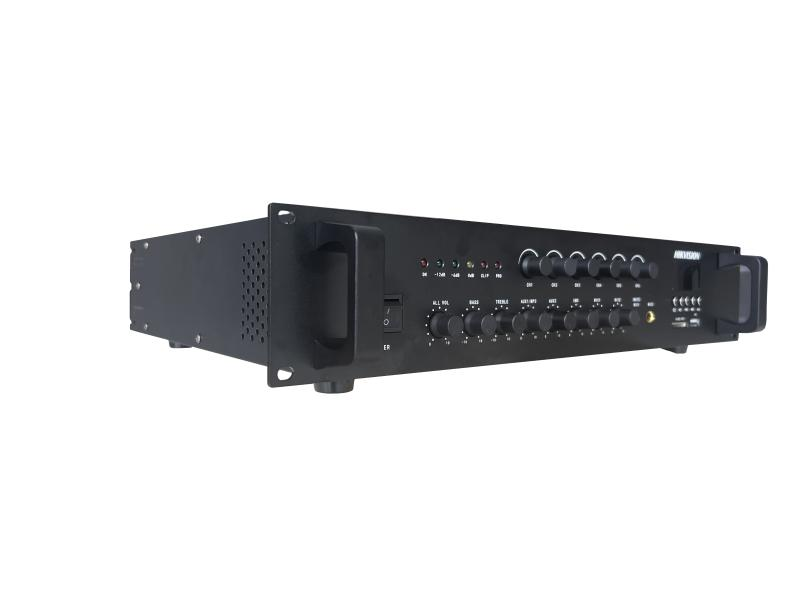

Hikvision DS-QAE0A120G1-VB6 120W 6-Zone Analog Public Address Amplifier with Bluetooth and USB Support

The Hikvision DS-QAE0A120G1-VB6 120W 6-Zone Analog Public Address Amplifier is a professional-grade sound system control unit designed for large commercial and institutional audio installations. It is ideal for schools, churches, factories, shopping centres, hospitals, transport hubs, offices, and public facilities requiring multi-zone audio distribution and clear voice announcements. With 120W rated output power and support for 6 independent output zones, this amplifier enables precise audio control across different areas of a building. It supports Bluetooth, USB, SD card playback, microphone input, and AUX connections, making it suitable for both live announcements and background music distribution. Its robust build, advanced audio processing, and flexible output options make it a reliable PA solution for demanding environments in Kenya.

Product Features

120W High Power Multi-Zone Output

The amplifier delivers 120W rated power with support for 6 independent zones, allowing users to control and distribute audio separately across different sections of a facility for efficient sound management.

Advanced 6-Zone Audio Control System

Each zone can be individually adjusted, enabling targeted announcements or background music in specific areas such as classrooms, corridors, departments, or retail sections.

Multiple Audio Input Options

The system supports microphone inputs, AUX inputs, EMC emergency input, Bluetooth wireless streaming, USB playback, and SD card support, offering maximum flexibility for different audio sources.

Priority Microphone and Emergency Input

Mic 1 and EMC inputs are assigned priority control, automatically overriding other audio sources to ensure emergency messages and important announcements are clearly broadcast.

Bluetooth and USB Media Playback

Built-in Bluetooth and USB functionality allows easy wireless streaming or playback of pre-recorded audio files, ideal for music, alerts, and scheduled announcements.

Independent Tone and Volume Control

The amplifier includes bass and treble adjustment controls, as well as individual zone volume knobs, allowing fine-tuning of sound quality and distribution.

Wide System Compatibility

Supports 100V, 70V constant voltage output and 4–16 ohm impedance output, making it compatible with a wide range of commercial PA speakers and installation setups.

Built-In Audio Protection System

Integrated protection features safeguard the amplifier against overheating, short circuits, and overload, ensuring stable long-term operation.

Clear Sound Performance

With low distortion and high signal-to-noise ratio, the system delivers clear, intelligible voice output and balanced music playback.

Durable Rack-Mount Design

Constructed with a strong metal chassis, the amplifier is designed for rack installation in control rooms, security offices, and audio distribution cabinets.

Product Specifications

• Brand: Hikvision
• Model: DS-QAE0A120G1-VB6
• Product Type: 6-Zone Analog Public Address Amplifier
• Rated Power Output: 120W
• Number of Zones: 6 Independent Zones
• Audio Inputs: Microphone (2 inputs), AUX inputs, EMC input
• Media Input Support: Bluetooth, USB 2.0, SD Card
• Audio Output Types: 100V, 70V, and 4–16 Ohm
• Frequency Response: 80Hz – 18kHz (±3dB)
• Signal-to-Noise Ratio: ≥83dB
• Total Harmonic Distortion: ≤0.5%
• Volume Controls: Master, zone, microphone, AUX, bass, and treble adjustment
• Priority Function: Mic 1 and EMC emergency input priority
• Power Supply: AC 200–230V, 50/60Hz
• Cooling System: Built-in ventilation design
• Protection Features: Overload, short circuit, and overheating protection
• Material: Metal housing construction
• Installation Type: Rack mount
• Color: Black
• Application: Public address, paging, emergency broadcasting, and background music
• Recommended Use: Schools, offices, churches, hospitals, factories, malls, hotels, transport terminals, and commercial buildings
• Operating Temperature: -10°C to 40°C
• Humidity Range: 20% – 80% non-condensing
• Condition: New genuine Hikvision product
• Dimensions: 484 mm × 88 mm × 360 mm
• Weight: Approximately 9.2 kg
