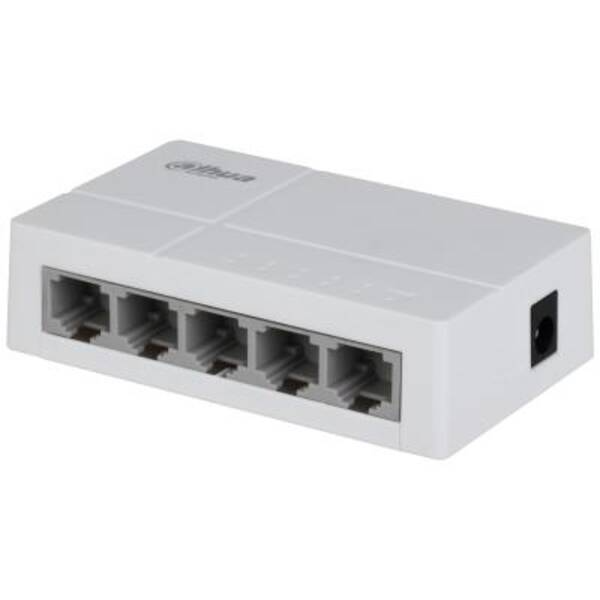

Dahua SF1005L5 5-Port 10/100Mbps Unmanaged Ethernet Switch

The Dahua SF1005L5 5-Port 10/100Mbps Unmanaged Ethernet Switch is a compact and reliable networking solution designed to provide stable wired connectivity for homes, small offices, retail stores, schools, and CCTV surveillance systems. Featuring five 10/100Mbps auto-negotiation Ethernet ports, this unmanaged switch offers plug-and-play operation without requiring any configuration. It supports auto MDI/MDIX, store-and-forward switching, and non-blocking data transmission to ensure efficient network performance. With its energy-efficient design, lightweight construction, and durable housing, the Dahua SF1005L5 is an ideal choice for expanding local area networks and connecting computers, IP cameras, printers, NVRs, routers, and other Ethernet-enabled devices.

Product Features

Five 10/100Mbps Ethernet Ports

The switch is equipped with five Fast Ethernet ports that automatically negotiate connection speeds, providing reliable network connectivity for multiple wired devices.

Plug-and-Play Installation

No software installation or configuration is required. Simply connect your devices, and the switch automatically establishes network communication for quick and hassle-free deployment.

Auto MDI/MDIX Support

Each Ethernet port supports Auto MDI/MDIX, eliminating the need for crossover cables and simplifying network installation.

Store-and-Forward Switching

The switch uses a store-and-forward architecture to verify data integrity before forwarding packets, improving network stability and reducing transmission errors.

Stable Network Performance

With a switching capacity of 1Gbps and a packet forwarding rate of 0.744 Mpps, the switch provides smooth and reliable data transmission for everyday networking applications.

Energy-Efficient Operation

Designed with low power consumption, the switch minimizes energy usage while maintaining dependable performance for continuous operation.

Compact Desktop Design

Its compact and lightweight design allows convenient placement on desks, shelves, or network cabinets, making it suitable for space-constrained environments.

Durable Construction

The switch is built with a robust enclosure for dependable long-term operation and includes protection against electrostatic discharge and lightning surges to enhance reliability.

Wide Device Compatibility

The Dahua SF1005L5 is compatible with IP cameras, NVRs, routers, wireless access points, desktop computers, printers, network storage devices, and other Ethernet-enabled equipment.

Ideal for CCTV and Office Networks

This unmanaged Ethernet switch is an excellent solution for expanding surveillance systems and wired business networks where reliable Fast Ethernet connectivity is required.

Product Specifications

• Brand: Dahua
• Model: SF1005L5
• Product Type: 5-Port Unmanaged Ethernet Switch
• Ethernet Ports: 5 × 10/100Mbps RJ45 Ports
• Port Speed: 10/100Mbps Auto-Negotiation
• Port Features: Auto MDI/MDIX
• Switching Capacity: 1Gbps
• Packet Forwarding Rate:744 Mpps
• MAC Address Table: 2K
• Packet Buffer: 768 Kbit
• Switching Method: Store-and-Forward
• Power Supply: 5V DC, 1A
• Power Consumption:5W (Maximum)
• Installation: Desktop
• Operating Temperature: 0°C to 45°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 5%–95% RH
• Protection: Electrostatic discharge and lightning protection
• Applications: Home networking, small offices, CCTV systems, IP camera installations, retail stores, schools, and wired LAN expansion
