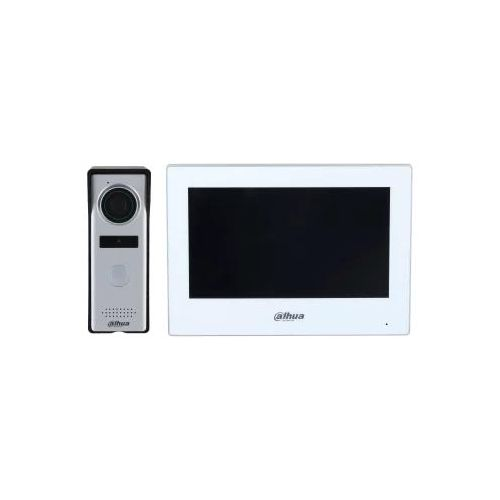

Dahua KTH01-IP Hybrid IP Video Intercom Kit

The Dahua KTH01-IP Hybrid IP Video Intercom Kit is a modern access control and visitor management solution designed for homes, villas, apartments, and small offices. The kit combines a 7-inch capacitive touchscreen indoor monitor with a weatherproof outdoor door station, providing crystal-clear video communication, remote door unlocking, and mobile app management. Supporting both digital IP and 4-wire hybrid communication, Wi-Fi connectivity, PoE, two-way audio, video calls, snapshot capture, and remote monitoring through the Dahua DMSS mobile application, the KTH01-IP delivers secure and convenient access management for residential and light commercial applications.

Product Features

7-Inch Capacitive Touchscreen Monitor

The indoor monitor features a responsive 7-inch TFT capacitive touchscreen with a resolution of 1024 × 600, delivering clear live video and an intuitive user experience for managing visitors and door access.

Hybrid IP and 4-Wire Communication

The KTH01-IP supports both digital IP and traditional 4-wire communication, making it ideal for upgrading existing intercom systems while providing the flexibility of modern IP networking.

Wi-Fi and Ethernet Connectivity

The indoor monitor supports both 2.4 GHz Wi-Fi and wired Ethernet connectivity, providing flexible installation options and stable communication with the door station and mobile devices.

Remote Management with DMSS App

Monitor visitors, receive calls, unlock doors remotely, and receive alarm notifications from anywhere using the Dahua DMSS mobile application.

Two-Way Audio Communication

Built-in microphones and speakers enable clear two-way conversations between the indoor monitor, outdoor station, and the mobile application, allowing convenient communication with visitors.

High-Quality Outdoor Camera

The outdoor door station features a 1.3MP CMOS camera with Digital Wide Dynamic Range (DWDR), delivering clear video in varying lighting conditions while automatically switching between day and night modes.

Snapshot and Video Recording

Capture visitor snapshots and record video calls directly to a microSD card (up to 64GB), allowing convenient review of missed visitors and access events.

Door Unlock Function

Users can unlock connected electric locks directly from the indoor monitor or remotely through the mobile application after verifying visitors.

Expandable Intercom System

The system supports up to two outdoor door stations and three additional indoor monitors, making it suitable for larger homes and multi-room installations.

Weatherproof Outdoor Station

The outdoor unit is IP66-rated for reliable performance in outdoor environments, providing protection against dust, rain, and harsh weather conditions.

Product Specifications

• Brand: Dahua
• Model: KTH01-IP
• Product Type: Hybrid IP Video Intercom Kit
• Indoor Monitor: DHI-VTH2624GW-WP
• Outdoor Door Station: DHI-VTO1000J
• Display Size: 7-inch TFT Capacitive Touchscreen
• Screen Resolution: 1024 × 600
• Camera Resolution:3MP CMOS
• Video Compression:264
• Communication: Hybrid IP and 4-Wire
• Wi-Fi: IEEE 802.11 b/g/n (2.4 GHz)
• Network Port: 1 × RJ45 10/100 Mbps Ethernet
• Audio: Two-Way Audio with Echo Cancellation and Noise Reduction
• Storage: microSD Card Support up to 64GB
• Door Unlock: Remote and Local Unlock
• Alarm Inputs: 6
• Alarm Outputs: 1
• RS-485: 1 Port
• Power Supply: 12V DC or Standard PoE (Indoor Monitor)
• Outdoor Protection Rating: IP66
• Indoor Operating Temperature: -10°C to +55°C
• Outdoor Operating Temperature: -30°C to +60°C
• Mobile Application: Dahua DMSS
• Applications: Homes, villas, apartments, residential estates, offices, gated communities, and small commercial buildings
