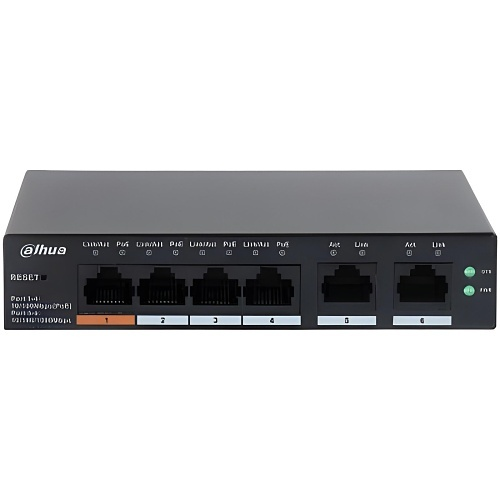

Dahua CS4006-4ET2GT-36 6-Port Cloud Managed PoE Ethernet Switch

The Dahua CS4006-4ET2GT-36 6-Port Cloud Managed PoE Ethernet Switch is a smart Layer 2 networking solution designed for IP surveillance systems, small business networks, and commercial installations. Featuring four 10/100Mbps PoE ports and two Gigabit uplink ports, this cloud-managed switch delivers reliable data transmission and power to compatible IP cameras, wireless access points, VoIP phones, and other PoE-enabled devices. With support for IEEE 802.3af/at standards, a total PoE budget of 36W, cloud management through the Dahua DoLynk platform, PoE Watchdog, Long Distance PoE transmission up to 250 metres, VLAN support, and robust lightning protection, the CS4006-4ET2GT-36 provides an efficient and dependable networking solution for professional surveillance and enterprise environments.

Product Features

6-Port Cloud Managed Switch

The switch includes four 10/100Mbps PoE Ethernet ports and two 10/100/1000Mbps Gigabit uplink ports, providing flexible connectivity for surveillance and business networks.

IEEE 802.3af/at PoE Support

All four PoE ports comply with IEEE 802.3af and IEEE 802.3at standards, supplying up to 30W per port with a total PoE power budget of 36W.

Cloud Management via DoLynk

The switch supports centralized cloud management through the Dahua DoLynk platform, enabling remote monitoring, device configuration, fault diagnosis, and network management from anywhere.

Long Distance PoE Transmission

Extend Mode enables PoE transmission distances of up to 250 metres at 10Mbps, making the switch ideal for connecting IP cameras in large compounds, warehouses, and parking areas.

PoE Watchdog

The built-in PoE Watchdog automatically detects unresponsive connected devices and restarts the corresponding PoE port, improving system reliability and minimizing maintenance.

VLAN and Loop Protection

Support for IEEE 802.1Q VLAN, loop prevention, multicast storm control, broadcast storm control, and port isolation enhances network security and stability.

High-Performance Layer 2 Switching

With a switching capacity of 4.8Gbps and a packet forwarding rate of 3.57Mpps, the switch delivers stable and efficient data transmission for multiple connected devices.

Gigabit Uplink Ports

The two Gigabit uplink ports provide high-speed connections to NVRs, routers, or core switches, helping prevent network bottlenecks.

Durable Metal Housing

The compact metal enclosure supports desktop or wall-mounted installation while providing improved durability and heat dissipation for continuous operation.

Built-In Lightning and ESD Protection

The switch features 6kV lightning protection and electrostatic discharge (ESD) protection, helping safeguard connected equipment in demanding environments.

Product Specifications

• Brand: Dahua
• Model: CS4006-4ET2GT-36
• Product Type: 6-Port Cloud Managed PoE Ethernet Switch
• Switch Type: Layer 2 Managed Switch
• PoE Ports: 4 × 10/100Mbps RJ45
• Uplink Ports: 2 × 10/100/1000Mbps Gigabit RJ45
• PoE Standard: IEEE 802.3af/at
• Maximum PoE Output per Port: 30W
• Total PoE Budget: 36W
• Switching Capacity:8Gbps
• Packet Forwarding Rate:57Mpps
• MAC Address Table: 2K
• Packet Buffer: 4Mbit
• Jumbo Frame: 9,216 Bytes
• VLAN Support: IEEE 802.1Q VLAN
• Network Management: Web management, DoLynk cloud management
• Special Features: PoE Watchdog, Long Distance PoE (250m), Loop Protection, Port Isolation
• Lightning Protection: 6kV
• Operating Temperature: -10°C to 55°C
• Power Supply: 53V DC external power adapter
• Installation: Desktop or wall-mounted
• Applications: IP surveillance systems, PoE IP cameras, offices, retail stores, schools, warehouses, hotels, and small business networks
