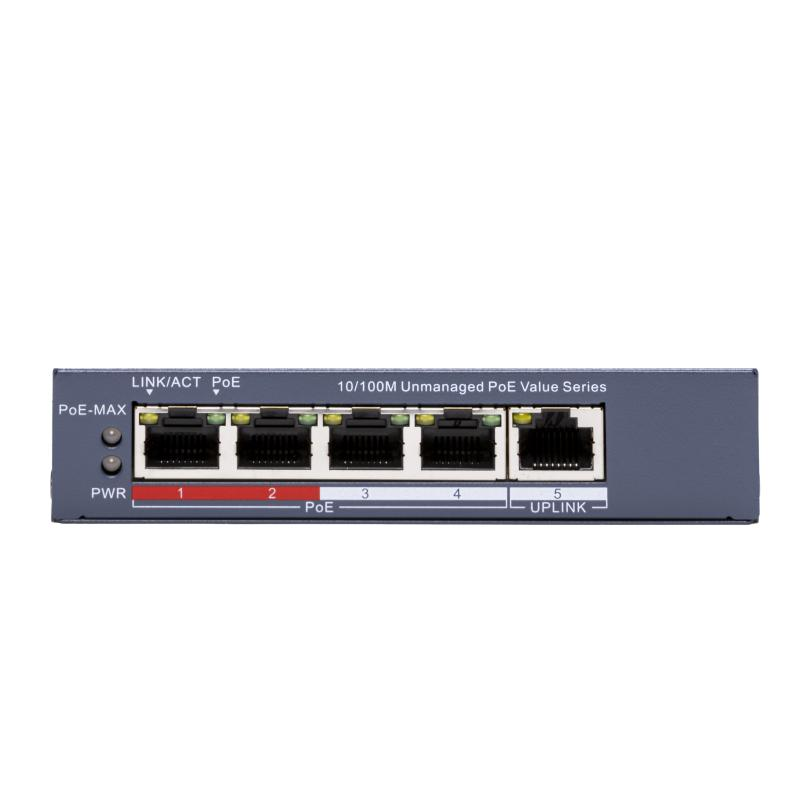

Hikvision DS-3E0107P-E/M Fast Ethernet PoE Switch

The Hikvision DS-3E0107P-E/M Fast Ethernet PoE Switch is a reliable unmanaged network switch designed for CCTV systems, IP surveillance installations, access control networks, and small office connectivity solutions in Kenya. It is built to deliver both data transmission and Power over Ethernet (PoE) through a single cable, making installation simple, clean, and cost-effective. The switch is ideal for powering IP cameras and other network devices in home and business security setups where stable performance is required.

The DS-3E0107P-E/M provides multiple PoE-enabled Fast Ethernet ports plus an uplink port for network expansion. It supports IEEE 802.3af/at PoE standards, ensuring compatibility with a wide range of IP devices. With intelligent power distribution, surge protection, and long-distance transmission capability, it is engineered for stable surveillance performance even in demanding outdoor or multi-camera environments.

Built with a durable metal casing and fanless design, the switch operates quietly and reliably. It supports plug-and-play installation, requiring no configuration, making it suitable for quick deployment in CCTV projects. Its extended transmission mode allows power and data delivery over longer distances, which is especially useful for perimeter security installations.

With strong reliability, efficient power delivery, and easy installation, the Hikvision DS-3E0107P-E/M is a practical networking solution for modern surveillance and security systems in Kenya.

Product Features

Multiple PoE Fast Ethernet Ports

The switch includes several PoE-enabled 10/100 Mbps ports that provide both network connectivity and power supply to connected devices such as IP cameras and intercom systems.

Uplink Port for Network Expansion

It features an additional uplink port that connects the switch to NVRs, routers, or larger network systems for expanded connectivity.

IEEE 802.3af/at PoE Support

The DS-3E0107P-E/M supports standard PoE protocols, ensuring compatibility with a wide range of powered network devices.

Long Distance Transmission Mode

The switch supports extended transmission mode, allowing power and data delivery over longer distances, ideal for perimeter surveillance installations.

Surge Protection for Device Safety

Built-in surge protection helps protect connected devices from electrical spikes and voltage instability, improving system reliability.

Auto MDI/MDIX Function

The switch automatically detects cable types, eliminating the need for crossover cables and simplifying installation.

Store-and-Forward Switching Technology

It uses store-and-forward architecture to ensure stable, error-checked data transmission across all connected devices.

Intelligent PoE Power Management

The switch distributes power efficiently to connected devices and prevents overload by managing total PoE output automatically.

Durable Metal Housing

The device is built with a strong metal casing that improves durability and ensures long-term reliability in security installations.

Fanless Silent Operation

Its fanless design ensures silent operation and reduces mechanical wear, improving long-term stability.

Plug-and-Play Installation

No configuration is required, allowing quick installation and immediate use after connection.

CCTV System Optimization

The switch is optimized for surveillance systems, making it suitable for IP cameras, DVRs, and NVR-based installations.

Suitable for Security Installations in Kenya

The Hikvision DS-3E0107P-E/M is ideal for homes, offices, shops, and CCTV installations requiring reliable PoE networking and stable connectivity.

Product Specifications

• Brand: Hikvision
• Model: DS-3E0107P-E/M
• Product Type: Unmanaged PoE Switch
• Ports: Multiple 10/100 Mbps PoE ports + 1 uplink port
• Port Speed: Fast Ethernet (10/100 Mbps)
• PoE Standard: IEEE 802.3af / IEEE 802.3at
• PoE Power Budget: Up to 35–58W (depending on configuration)
• Max Power Per Port: Up to 30W
• Switching Capacity: Up to 1.6 Gbps
• MAC Address Table: 4K entries
• Transmission Mode: Store-and-forward
• Extended Mode Distance: Up to 300 meters (reduced speed mode)
• Surge Protection: 6KV protection support
• Power Input: 48V DC external power supply
• Power Consumption: Approx. 38W maximum
• Installation Type: Desktop or wall-mounted
• Housing Material: Metal casing
• Cooling System: Fanless design
• Auto Features: Auto MDI/MDIX, MAC learning, auto aging
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10% to 90% non-condensing
• Application Areas: CCTV systems, IP cameras, small office networks, security installations
• Usage Environment: Indoor installations
