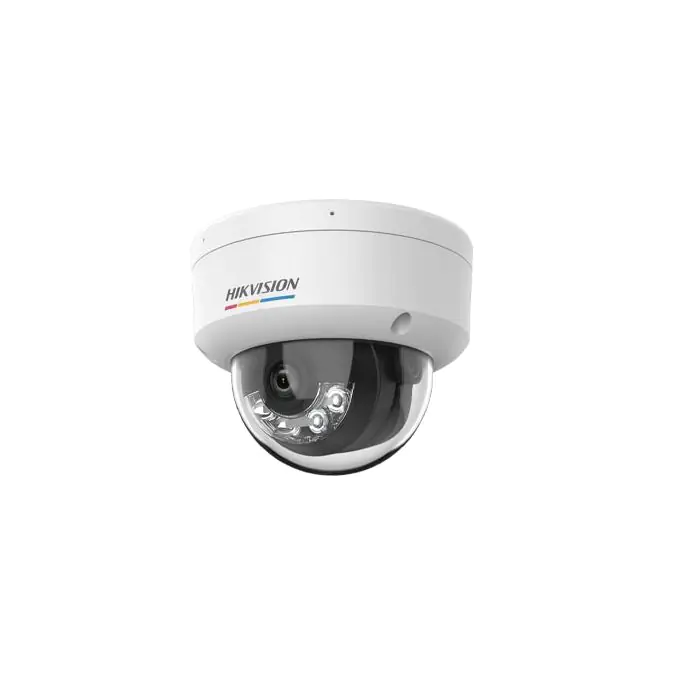

Hikvision DS-2CD1147G2H-LIU 4MP ColorVu Smart Hybrid Light Dome IP Security Camera

A 4MP dome IP security camera designed for reliable high-definition surveillance in residential, commercial, and public environments. It delivers sharp 2560 × 1440 resolution video powered by ColorVu smart hybrid light technology, ensuring clear full-color imaging even in very low-light or nighttime conditions. With AI-based human and vehicle detection, built-in audio capture, and a vandal- and weather-resistant housing, it supports continuous and accurate monitoring for modern CCTV security systems.

Product Features

4MP High-Definition Video Clarity

Delivers sharp 2560 × 1440 resolution footage that captures fine details for accurate identification of faces, vehicles, and security events in real time.

ColorVu Full-Color Night Vision Technology

Uses an advanced F1.0 aperture lens and high-sensitivity imaging sensor to produce bright full-color video even in near-total darkness without relying only on infrared lighting.

Smart Hybrid Light System

Automatically switches between infrared and white light depending on motion and ambient lighting conditions to maintain optimal night visibility while improving energy efficiency.

AI Human and Vehicle Detection

Advanced analytics distinguish between humans, vehicles, and irrelevant motion such as animals or shadows, reducing false alarms and improving detection accuracy.

Built-in Microphone Audio Capture

Integrated microphone records clear ambient sound to enhance surveillance detail with synchronized audio and video recording for improved incident review.

Motion Detection 3.0 Technology

Improved detection system focuses on relevant movement and supports intelligent event classification for faster and more accurate alerts.

IP67 Weatherproof and IK08 Vandal Resistant Housing

Constructed with a reinforced sealed enclosure that resists dust, rain, and impact, making it suitable for outdoor and high-risk installations.

Efficient H.265+ Video Compression

Reduces bandwidth and storage usage while maintaining high-quality video recording for longer retention and efficient system performance.

Product Specifications

• Image Sensor: 1/3 inch progressive scan CMOS
• Maximum Resolution: 2560 × 1440 (4MP)
• Lens Options: 2.8 mm or 4 mm fixed focal length
• Field of View: Wide-angle coverage depending on lens selection
• Aperture: F1.0 ultra-low light lens
• Minimum Illumination: 0.0005 lux (color mode), 0 lux with supplemental light
• Night Vision Range: Up to 30 meters with smart hybrid light system
• Video Compression: H.265+, H.265, H.264+, H.264
• Frame Rate: Up to 20–25 fps at 4MP resolution
• Audio: Built-in microphone
• AI Functions: Human and vehicle detection
• Motion Detection: Motion Detection 3.0
• Wide Dynamic Range: 120 dB
• Network Interface: RJ45 Ethernet
• Power Supply: 12V DC or Power over Ethernet (PoE)
• Power Consumption: Approximately 5–7W
• Protection Rating: IP67 weather resistance, IK08 vandal resistance
• Operating Temperature: -30°C to 60°C
• Material: Metal base with reinforced dome housing
• Installation Type: Dome ceiling or wall mounting design
