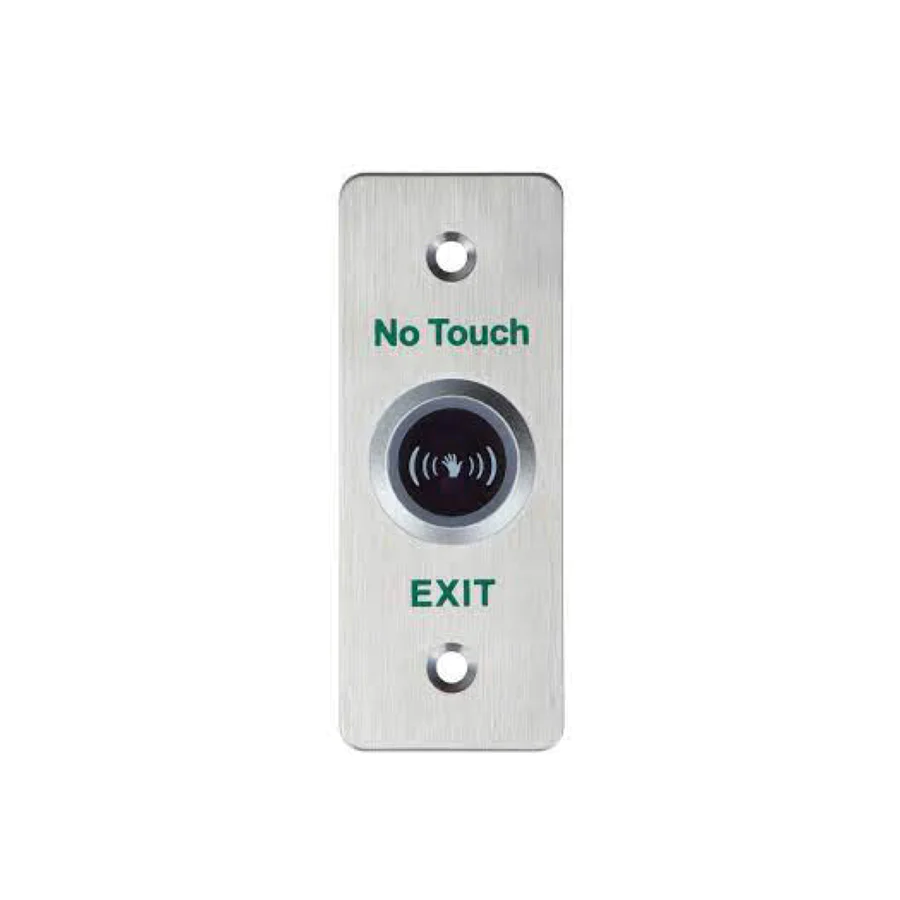

Hikvision DS-K7P04 Exit Button Kenya | Non-Touch Stainless Steel Access Control Exit Switch
The Hikvision DS-K7P04 is a non-touch exit button designed for modern access control systems, allowing users to safely trigger door release without physical contact. It is commonly used in offices, hospitals, commercial buildings, and institutional environments where hygiene, durability, and efficient access control are important. Built with a sturdy aluminum panel and engineered for reliable signal transmission, it ensures consistent performance in high-traffic installations across security systems in Kenya.
Product Features
Non-contact infrared activation
The DS-K7P04 uses infrared sensing technology to allow hands-free door release, improving hygiene and reducing wear caused by frequent physical pressing.
Strong aluminum alloy panel construction
It is built with a durable aluminum alloy housing that provides resistance to corrosion, scratches, and long-term usage in busy environments.
NO/NC/COM relay output support
The exit button supports Normally Open, Normally Closed, and Common output contacts, making it compatible with most access control systems and electric locks.
Adjustable sensing distance
The infrared detection range is adjustable between approximately 40 mm and 100 mm, allowing flexible installation depending on doorway conditions and user preference.
High durability switching system
Designed for heavy-duty use, the DS-K7P04 supports up to 1,000,000 activation cycles, making it suitable for high-traffic commercial and institutional environments.
LED status indication
It includes LED indicators that show operational status such as standby and active mode, improving user awareness and system monitoring.
Standard installation size
The device is designed to fit standard 86 × 86 mm back boxes, making installation easy and compatible with common electrical wall setups.
Wide operating temperature range
It operates reliably in temperatures ranging from -20°C to +50°C, ensuring stable performance in different indoor environments.
Product Specifications
- Model: DS-K7P04
- Brand: Hikvision
- Product type: Non-touch infrared exit button
- Panel material: Aluminum alloy
- Output contact: NO / NC / COM
- Input voltage: 12V DC
- Current consumption: Approximately 20 mA standby, 50 mA active
- Sensing method: Infrared proximity detection
- Detection range: 40 mm – 100 mm (adjustable)
- LED indicator: Multi-color status indication
- Installation type: Wall-mounted / standard 86 × 86 back box
- Dimensions: 90 mm × 35 mm × 37.7 mm
- Operating temperature: -20°C to +50°C
- Operating humidity: 0% to 95% (non-condensing)
- Service life: Up to 1,000,000 operations
- Application: Access control systems, offices, hospitals, commercial and institutional buildings
