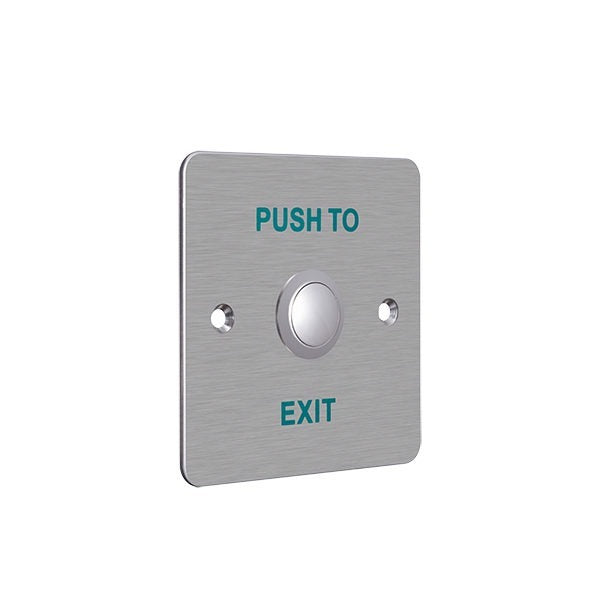

Hikvision DS-K7P01 Exit Button Kenya | Stainless Steel Access Control Door Release Button
The Hikvision DS-K7P01 is a high-quality mechanical exit button designed for use in access control systems to safely release electric locks and control door access in residential, commercial, and institutional buildings. It provides a simple and reliable door release solution, allowing users to exit secured areas easily while maintaining overall security on entry points. Built with a durable stainless steel panel and metal button, it ensures long service life, stable performance, and resistance to frequent use in high-traffic environments commonly found in offices, apartments, and commercial facilities in Kenya.
Product Features
Durable stainless steel panel construction
The DS-K7P01 is built with a robust stainless steel panel and metal button, providing high resistance to wear, corrosion, and continuous daily usage in demanding environments.
NO/NC/COM contact output support
It features flexible output contact options (Normally Open, Normally Closed, and Common), making it compatible with a wide range of access control systems and electric locks.
High durability switch mechanism
Engineered to withstand up to 500,000 operation cycles, ensuring long-term reliability in high-traffic installations such as offices, schools, and commercial buildings.
Easy wall-mounted installation
Designed for simple surface or wall mounting, it fits standard electrical back boxes, making installation quick and convenient for installers.
Stable electrical performance
Rated for up to 3A at 36VDC, ensuring stable signal transmission for door release operations without performance degradation.
Compact and standard design
With a standard 86×86 mm form factor, it integrates easily with modern switch panels and access control installations.
Wide operating temperature range
Designed to operate reliably in temperatures from -10°C to +55°C, making it suitable for varied indoor environments.
Clean and silent operation
The mechanical button provides smooth and silent operation, improving user experience in professional environments.
Product Specifications
- Model: DS-K7P01
- Brand: Hikvision
- Product type: Exit / door release button
- Panel material: Stainless steel with metal button
- Output contact: NO / NC / COM
- Current rating: 3A at 36VDC maximum
- Installation type: Wall-mounted / standard back box compatible
- Dimensions: 86 mm × 86 mm × 28.9 mm
- Operating temperature: -10°C to +55°C
- Operating humidity: 0% to 95% (non-condensing)
- Service life: Up to 500,000 operations
- Application: Access control systems, electric locks, offices, apartments, commercial and institutional buildings
