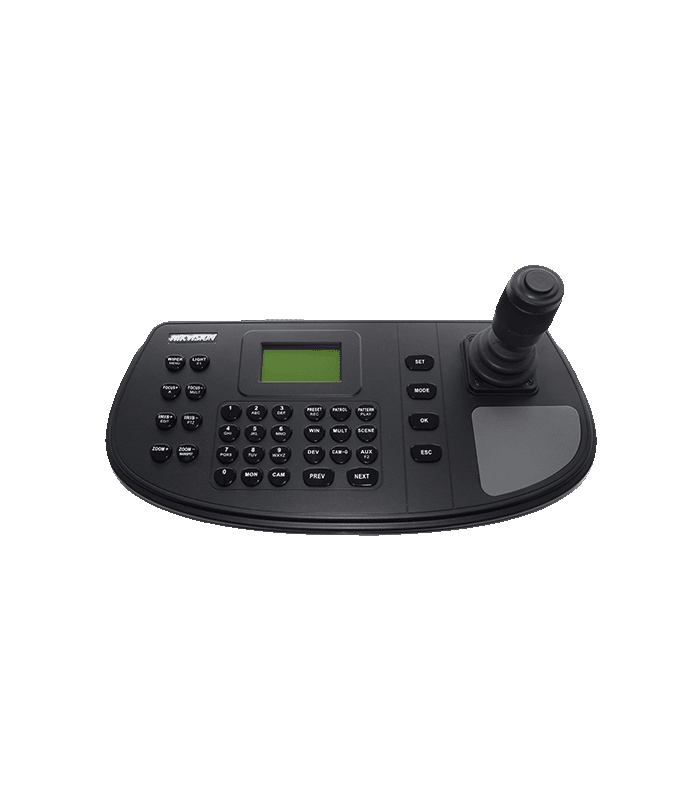

Hikvision DS-1200KI Network Keyboard Controller

The Hikvision DS-1200KI Network Keyboard Controller is a professional-grade PTZ and video management control device designed for centralized operation of CCTV systems in control rooms, security centers, commercial buildings, and large surveillance installations. It provides precise and efficient control of IP cameras, DVRs, NVRs, decoders, and video wall systems through a combination of a 4-axis joystick, shortcut keys, and a built-in display. Designed for security operators, the DS-1200KI simplifies real-time camera management, PTZ control, and system navigation, making it ideal for large-scale surveillance environments in Kenya where multiple cameras and devices require centralized control.

Product Features

4-Axis Joystick Control

The DS-1200KI features a high-precision 4-axis joystick that enables smooth and accurate PTZ camera control, including pan, tilt, zoom, and focus operations for real-time surveillance management.

Multi-Device System Compatibility

It supports integration with IP cameras, NVRs, DVRs, decoders, video wall controllers, and matrix systems, allowing centralized control of complex security infrastructures.

128 x 64 LCD Display Screen

The built-in LCD screen displays real-time system information, device status, and operational feedback, improving usability for security operators in control room environments.

Multiple Communication Interfaces

The controller supports USB, RS-232, RS-422, RS-485, and Ethernet interfaces, ensuring flexible connectivity with a wide range of surveillance and control systems.

Network-Based Control Operation

With a 10/100 Mbps Ethernet interface, the DS-1200KI enables network-based control of security devices, making it suitable for modern IP surveillance systems.

Shortcut Key Functionality

Dedicated buttons allow quick access to camera groups, preset positions, and system functions, improving operational efficiency in live monitoring environments.

System Management Capability

The keyboard supports management of multiple devices within a surveillance network, allowing operators to switch, control, and configure cameras efficiently.

USB Data Support

The built-in USB interface allows configuration backup, firmware upgrades, and import/export of system settings for easier maintenance and deployment.

Durable Professional Design

Built for continuous use in security control rooms, the device features a robust structure designed for long operational hours and stable performance.

Suitable for Security Control Rooms

The DS-1200KI is ideal for CCTV monitoring centers, city surveillance systems, corporate security rooms, transport hubs, and large facility monitoring setups.

Product Specifications

• Brand: Hikvision
• Model: DS-1200KI
• Product Type: Network Keyboard Controller
• Display: 128 × 64 LCD Screen
• Joystick: 4-Axis Joystick
• Network Interface: 10/100 Mbps Ethernet (Self-adaptive)
• USB Interface: 1 × USB 2.0
• Serial Interfaces: RS-232, RS-422, RS-485
• Power Supply: 12 VDC
• Power Consumption: ≤ 4.5 W
• Operating Temperature: -10°C to +55°C
• Operating Humidity: 10% to 90%
• Net Weight: ≤ 1 kg
• Dimensions: 435 mm × 110 mm × 193 mm
• Device Control Support: IP Cameras, NVRs, DVRs, Decoders, Video Wall Controllers, Matrix Systems
• Functionality: PTZ Control, Camera Switching, Preset Control, System Navigation
• Installation Environment: Indoor Use
• Suitable Applications: CCTV Control Rooms, Security Monitoring Centers, Enterprise Surveillance Systems, Command Centers, Public Surveillance Systems
• Recommended Usage Areas: Offices, Airports, Banks, Institutions, Industrial Facilities, Commercial Buildings, and Smart City Surveillance Installations in Kenya
