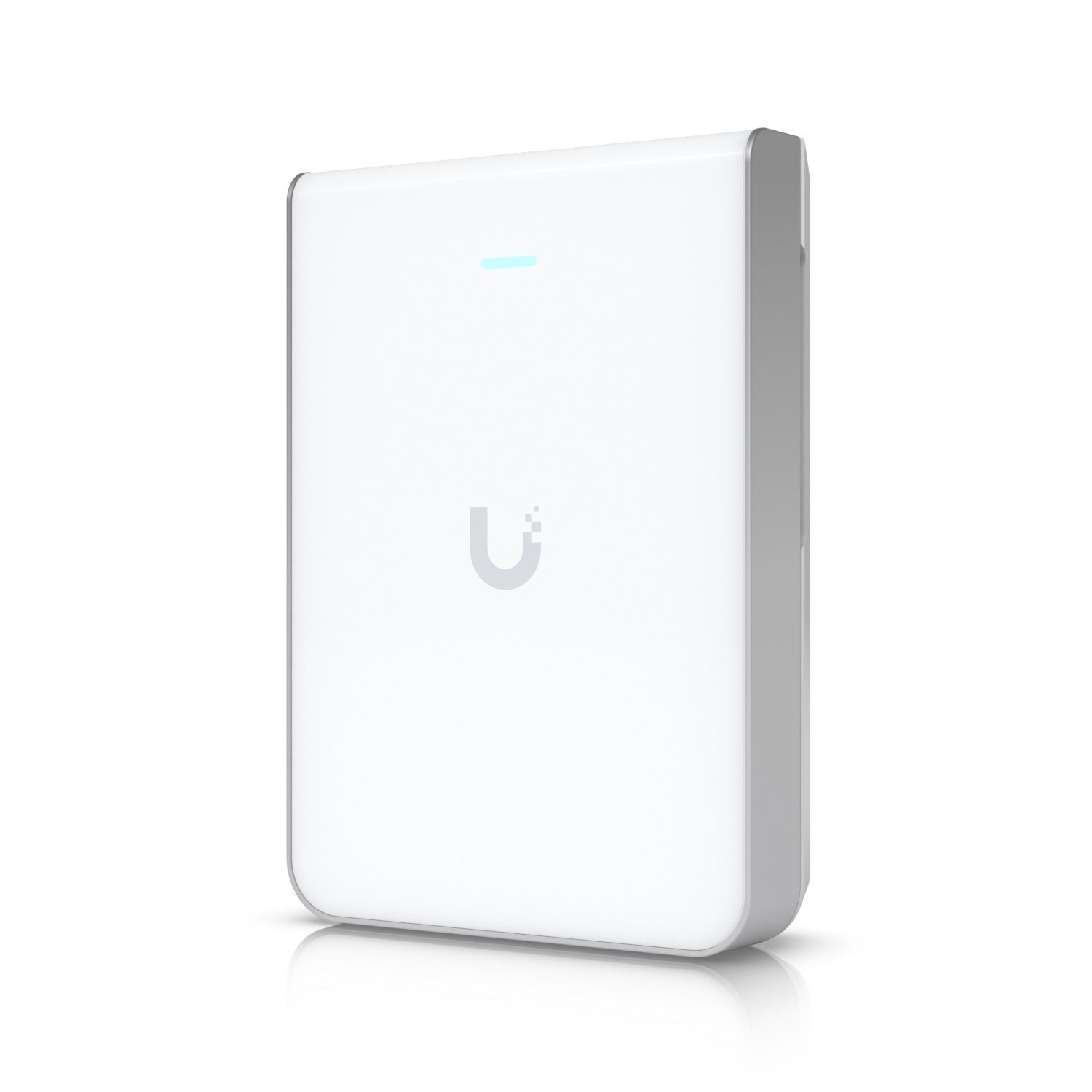

Ubiquiti UniFi U7 Pro Wall WiFi 7 Access Point (U7-Pro-Wall)

The Ubiquiti UniFi U7 Pro Wall WiFi 7 Access Point (U7-Pro-Wall) is a high-performance tri-band wireless access point designed to deliver fast, reliable, and low-latency connectivity in homes, offices, hospitality environments, and other indoor spaces. Built with WiFi 7 technology, it supports the 2.4 GHz, 5 GHz, and 6 GHz bands, providing high wireless capacity for modern devices while supporting 6 GHz connectivity for compatible WiFi 6E and WiFi 7 clients. Its compact wall-mounted design provides discreet installation, while a 2.5 GbE Ethernet port enables a high-speed wired uplink. The U7 Pro Wall is managed through the UniFi Network platform, making it suitable for centrally managed networks that require advanced wireless configuration, VLAN support, guest networking, roaming, security controls, and scalable deployment.

Product Features

WiFi 7 Tri-Band Connectivity

The U7 Pro Wall uses WiFi 7 technology to provide high-speed wireless connectivity across the 2.4 GHz, 5 GHz, and 6 GHz frequency bands. This enables compatible devices to take advantage of newer WiFi capabilities while maintaining support for a broad range of existing wireless clients.

6 GHz Wireless Support

The dedicated 6 GHz band provides access to additional wireless spectrum with less congestion than many traditional 2.4 GHz and 5 GHz networks. WiFi 6E and WiFi 7 compatible devices can use the 6 GHz band for high-speed, low-latency connections.

High Wireless Throughput

The U7 Pro Wall supports high theoretical data rates across all three wireless bands, making it suitable for demanding applications such as high-resolution streaming, large file transfers, cloud applications, video conferencing, and high-density device environments.

2.5 GbE Ethernet Uplink

A 2.5 Gigabit Ethernet port provides a high-speed wired connection between the access point and the network. The multi-gigabit uplink helps reduce the bottleneck that can occur with a standard 1 GbE connection when using high-performance WiFi 7 clients.

PoE+ Powered

The access point is powered through Power over Ethernet Plus (PoE+), allowing both power and network connectivity to be delivered through a single Ethernet cable. This simplifies installation and eliminates the need for a separate power cable at the access point location.

Wall-Mounted Design

The U7 Pro Wall is designed for wall installation, making it a practical choice for rooms, offices, corridors, hospitality spaces, and other areas where a wall-mounted access point is preferred over a ceiling-mounted design.

UniFi Network Management

The U7 Pro Wall integrates with the UniFi Network platform, allowing administrators to configure and manage wireless networks from a centralized interface. Network features can include multiple SSIDs, VLAN configuration, guest networks, access controls, traffic management, and wireless optimization.

Support for Multiple Wireless Clients

With support for a large number of connected devices, the U7 Pro Wall is designed for environments where multiple smartphones, laptops, tablets, smart devices, IoT equipment, and other wireless clients need reliable network access.

Advanced WiFi 7 Features

WiFi 7 introduces technologies such as 320 MHz channel support, 4096-QAM modulation, and Multi-Link Operation on compatible clients. These technologies can improve wireless throughput, efficiency, and responsiveness when supported by both the access point and connected devices.

Product Specifications

• Product: Ubiquiti UniFi U7 Pro Wall
• Model: U7-Pro-Wall
• Wireless standard: WiFi 7 (802.11be)
• Wireless bands: 2.4 GHz, 5 GHz, and 6 GHz
• Spatial streams: 6
• 2.4 GHz maximum data rate: Up to 688 Mbps
• 5 GHz maximum data rate: Up to 4.3 Gbps
• 6 GHz maximum data rate: Up to 5.8 Gbps
• Ethernet interface: 1 x 2.5 GbE
• Power method: PoE+
• Maximum power consumption: Up to 22 W
• Mounting: Wall mount
• Management platform: UniFi Network
• Wireless security: Supports modern enterprise and personal wireless security configurations through UniFi Network
• Client capacity: 300+ connected clients under suitable deployment conditions
• Coverage: Up to approximately 1,500 ft² (140 m²), depending on environment and installation
• Dimensions: 150 x 103 x 36 mm
• Weight: Approximately 580 g
• Intended environment: Indoor
• Recommended use: Homes, offices, hospitality, retail, and other managed wireless networks
• Compatible clients: WiFi 7, WiFi 6E, WiFi 6, and legacy WiFi devices, subject to supported standards and configuration
• Management: Centralized UniFi Network management
• Power and network connectivity: Ethernet cable through PoE+
