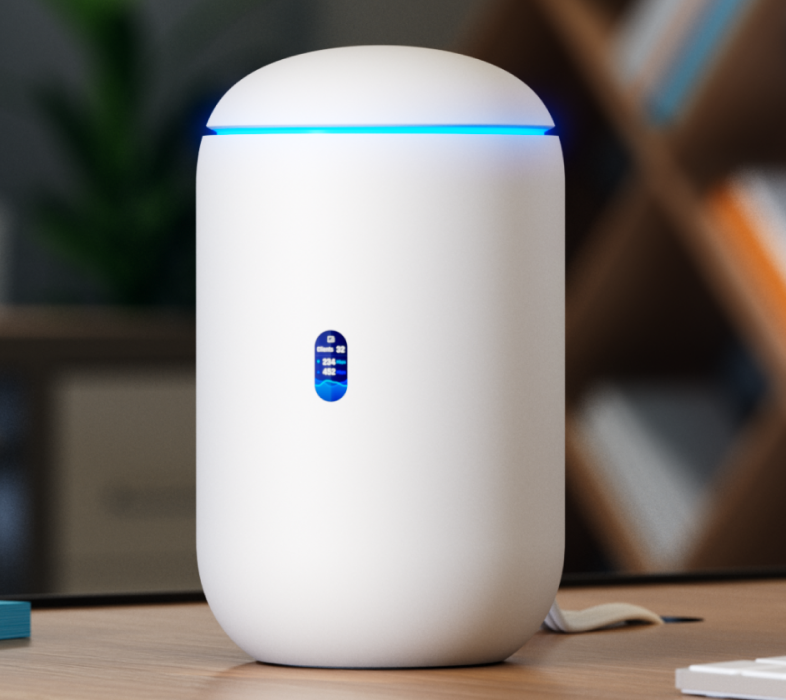

Ubiquiti UniFi Dream Router 7 (UDR7) WiFi 7 Cloud Gateway

The Ubiquiti UniFi Dream Router 7 (UDR7) is an all-in-one WiFi 7 cloud gateway that combines high-speed wireless networking, 10G connectivity, advanced routing, firewall security, VPN, UniFi device management, and UniFi Protect support in one compact desktop appliance. It features tri-band WiFi 7 with 2.4 GHz, 5 GHz, and 6 GHz radios, a 10G SFP+ WAN port, four 2.5 GbE RJ45 ports including one PoE port, 64 GB of pre-installed microSD storage, and up to 2.3 Gbps IDS/IPS throughput. The UDR7 can manage 30+ UniFi devices and support 300+ connected users, making it well suited for high-speed homes, home offices, small businesses, retail environments, and professional UniFi network deployments.

Product Features

WiFi 7 Tri-Band Connectivity

The UDR7 includes an integrated tri-band WiFi 7 access point operating on the 2.4 GHz, 5 GHz, and 6 GHz bands. It supports modern WiFi 7 devices while maintaining compatibility with WiFi 6, WiFi 6E, WiFi 5, and earlier wireless standards.

High-Speed 6 GHz WiFi

The 6 GHz radio supports theoretical wireless throughput of up to 5.7 Gbps and uses 2×2 DL/UL MU-MIMO. The additional 6 GHz spectrum provides greater wireless capacity for compatible WiFi 6E and WiFi 7 devices.

High-Performance 5 GHz WiFi

The 5 GHz radio supports theoretical throughput of up to 4.3 Gbps and 2×2 DL/UL MU-MIMO, providing fast wireless connectivity for streaming, video conferencing, cloud applications, gaming, and large file transfers.

Reliable 2.4 GHz Wireless Connectivity

The 2.4 GHz radio provides up to 688 Mbps of theoretical throughput and offers broad compatibility with smart home equipment, IoT devices, mobile devices, and other wireless clients.

10G SFP+ WAN Connectivity

The integrated 10G SFP+ port provides a high-speed WAN interface for compatible SFP+ modules and transceivers. This makes the UDR7 suitable for multi-gigabit internet services and high-performance network infrastructure.

2.5 GbE Multi-Gigabit Networking

The UDR7 provides four 2.5 GbE RJ45 ports, supporting 2.5 GbE, 1 GbE, 100 Mbps, and 10 Mbps Ethernet connections. This allows compatible computers, switches, access points, cameras, and other network devices to operate at multi-gigabit speeds.

Integrated PoE Output

One 2.5 GbE RJ45 port provides PoE output with a 15.4 W power budget. A compatible UniFi device can therefore receive both power and network connectivity through a single Ethernet cable.

Advanced IDS and IPS Security

The UDR7 provides up to 2.3 Gbps of IDS/IPS throughput, allowing intrusion detection and prevention features to operate alongside high-speed routing and network traffic management.

UniFi Application Suite

The Dream Router 7 supports UniFi Network, UniFi Protect, UniFi Access, UniFi Talk, and UniFi Connect. This allows compatible networking, surveillance, access control, communication, and connected devices to be managed from a centralized UniFi interface.

Support for 30+ UniFi Devices

The UDR7 can manage more than 30 UniFi devices, providing room to expand a network with additional UniFi access points, switches, cameras, and other compatible equipment.

Support for 300+ Connected Users

The gateway supports more than 300 simultaneous connected users, making it suitable for busy homes, offices, small businesses, retail environments, and other networks with many connected devices.

Built-In UniFi Protect Storage

A 64 GB microSD card is pre-installed for NVR storage, allowing compatible UniFi Protect surveillance deployments to store recordings locally. The device also includes a microSD expansion slot.

Advanced Firewall Protection

The UDR7 includes a stateful firewall and application-aware Layer 7 firewall, together with deep packet inspection, traffic identification, content filtering, intrusion detection and prevention, ad blocking, and zone-based firewall filtering.

VLAN and Network Segmentation

802.1Q VLAN support allows administrators to separate guest, employee, IoT, surveillance, and management traffic into dedicated logical networks for improved security and network organization.

Multi-WAN Connectivity

The UDR7 supports multiple WAN connections, load balancing, policy-based WAN routing, and failover capabilities, providing greater flexibility and resilience for networks with multiple internet services.

VPN and SD-WAN

VPN support includes WireGuard, OpenVPN, L2TP, and IPsec, while Teleport and Identity Endpoint provide remote-access options. Site Magic provides license-free SD-WAN connectivity between compatible UniFi locations.

Advanced Network Management

The UDR7 supports OSPF dynamic routing, advanced QoS, multicast DNS, advanced NAT, integrated RADIUS, RADIUS over TLS, IPv6, IGMP proxy, customizable DHCP, and policy-based WAN and VPN routing.

Compact Desktop Design

The cylindrical desktop enclosure measures 110 mm in diameter and 184.1 mm in height, providing a compact footprint for homes, offices, retail spaces, and other network installations.

Built-In Status Display

A 0.96-inch LCM status display provides useful device information directly on the gateway, while the integrated system LED provides additional visual status information.

Product Specifications

• Brand: Ubiquiti
• Product Family: UniFi
• Product Name: UniFi Dream Router 7
• Model: UDR7
• Product Type: Cloud gateway with integrated WiFi 7
• Form Factor: Compact desktop
• UniFi Applications: Network, Protect, Access, Talk, Connect
• Managed UniFi Devices: 30+
• Simultaneous Connected Users: 300+
• Managed Cameras: 5 HD, 2 2K, or 1 4K
• Wireless Standard: WiFi 7
• Supported Wireless Standards: 802.11a/b/g/n/ac/ax/be
• Wireless Bands: 2.4 GHz, 5 GHz, 6 GHz
• 6 GHz Throughput: Up to 5.7 Gbps
• 5 GHz Throughput: Up to 4.3 Gbps
• 2.4 GHz Throughput: Up to 688 Mbps
• 6 GHz MIMO: 2×2 DL/UL MU-MIMO
• 5 GHz MIMO: 2×2 DL/UL MU-MIMO
• 2.4 GHz MIMO: 2×2 DL/UL MU-MIMO
• 6 GHz Antenna Gain: 6 dBi
• 5 GHz Antenna Gain: 7 dBi
• 2.4 GHz Antenna Gain: 5 dBi
• Maximum 6 GHz TX Power: 24 dBm
• Maximum 5 GHz TX Power: 26 dBm
• Maximum 2.4 GHz TX Power: 23 dBm
• Wireless Security: WPA-PSK, WPA-Enterprise, WPA2, WPA3, PPSK
• Maximum BSSIDs: 4 per radio
• 10G SFP+ Port: 1
• 2.5 GbE RJ45 Ports: 4
• WAN Ports: 1 x 10G SFP+ and 1 x 2.5 GbE RJ45
• LAN Ports: 3 x 2.5 GbE RJ45, including 1 PoE port
• Ethernet Speeds: 2.5 GbE, 1 GbE, 100 Mbps, 10 Mbps
• PoE Port: 1 x 2.5 GbE
• PoE Budget: 15.4 W
• Maximum PoE Output: 15.4 W per port
• PoE Voltage Range: 44-57V
• IDS/IPS Throughput: 2.3 Gbps
• Firewall: Stateful firewall
• Layer 7 Firewall: Application-aware
• Deep Packet Inspection: Supported
• Traffic Identification: Supported
• Zone-Based Firewall: Supported
• Content Filtering: Supported
• Intrusion Detection: Supported
• Intrusion Prevention: Supported
• Ad Blocking: Supported
• VLAN: 802.1Q
• Guest Traffic Isolation: Supported
• Traffic Segmentation: VLAN and subnet-based
• Multi-WAN: Supported
• WAN Load Balancing: Supported
• WAN Failover: Supported
• Dynamic Routing: OSPF
• Advanced QoS: Supported
• Multicast DNS: Supported
• Advanced NAT: Supported
• RADIUS Server: Integrated
• RADIUS over TLS: RadSec
• IPv6: Supported
• IGMP Proxy: Supported
• VPN: WireGuard, OpenVPN, L2TP, IPsec
• Remote Access VPN: Teleport, Identity Endpoint VPN
• Site-to-Site VPN: Site Magic, IPsec, OpenVPN
• SD-WAN: Site Magic
• VPN Client: WireGuard, OpenVPN
• NVR Storage: 64 GB pre-installed microSD
• Storage Expansion: microSD card slot
• Processor: Quad-core ARM Cortex-A53 at 1.5 GHz
• System Memory: 3 GB
• Power Method: Universal AC input
• Input Voltage: 100-240V AC
• Maximum Input Current: 1.5 A
• Input Frequency: 50/60 Hz
• Power Supply: Internal 50 W AC/DC
• Maximum Power Consumption: 26 W, excluding PoE output
• Dimensions: 110 mm diameter x 184.1 mm height
• Weight: 1.1 kg
• Enclosure Material: Polycarbonate
• Status Display: 0.96-inch LCM
• Management: Ethernet and Bluetooth
• System LED: Yes
• Reset: Factory reset button
• ESD/EMP Protection: Air ±8 kV, contact ±4 kV
• Operating Temperature: -10 to 40 °C
• Operating Humidity: 5% to 95%, non-condensing
• Certifications: CE, FCC, IC
• NDAA Compliant: Yes
• UniFi Network Requirement: Version 9.0.108 or later
• Typical Applications: Home networking, home offices, small businesses, offices, retail environments, multi-gigabit internet, WiFi 7 deployments, network security, VPN, SD-WAN, UniFi device management, and UniFi Protect surveillance.
