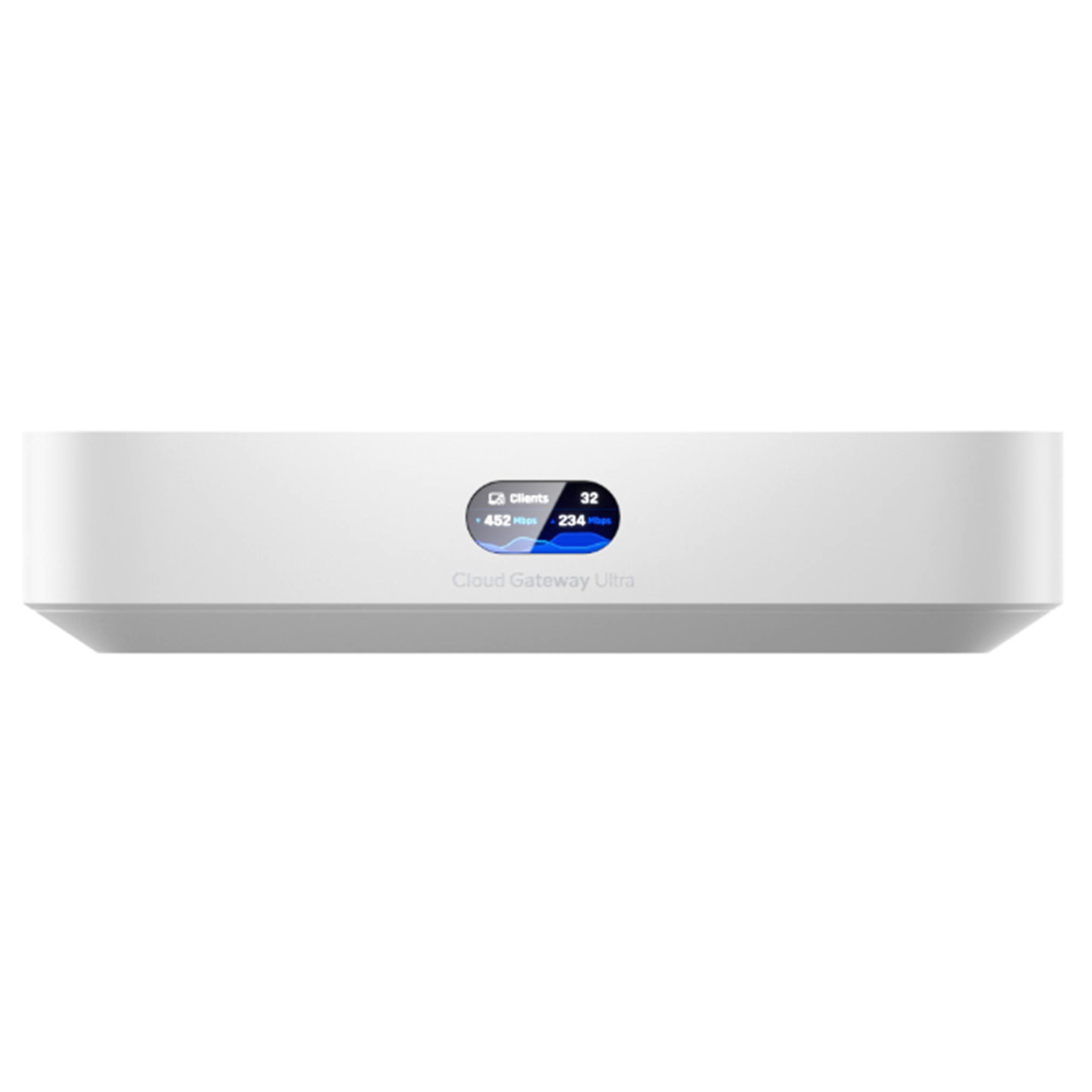

Ubiquiti UniFi Cloud Gateway Ultra (UCG-Ultra) Multi-Gigabit Cloud Gateway

The Ubiquiti UniFi Cloud Gateway Ultra (UCG-Ultra) is a compact and efficient UniFi cloud gateway designed to provide high-performance routing, network security, VPN connectivity, and centralized UniFi network management for homes, offices, and small businesses. It delivers up to 1 Gbps routing with IDS/IPS enabled, supports more than 30 UniFi devices and 300 connected clients, and includes five Gigabit Ethernet ports with multi-WAN capability. With integrated UniFi Network management, advanced firewall features, VLAN support, VPN services, and a compact desktop design, the UCG-Ultra provides a complete and easy-to-manage networking solution without requiring a separate UniFi Cloud Key or controller.

Product Features

High-Performance UniFi Cloud Gateway

The UCG-Ultra combines a router, security gateway, and UniFi Network controller in one compact device, reducing the need for separate network management hardware.

1 Gbps IDS/IPS Routing

The Cloud Gateway Ultra provides up to 1 Gbps routing throughput with IDS/IPS enabled, allowing advanced security features to operate without significantly limiting network performance.

Centralized UniFi Network Management

Built-in UniFi Network software allows administrators to configure and manage compatible UniFi access points, switches, gateways, and other network devices from a centralized management interface.

Support for 30+ UniFi Devices

The UCG-Ultra is designed to manage more than 30 UniFi devices, making it suitable for small businesses, offices, homes, retail locations, and other growing network environments.

Support for 300+ Connected Clients

The gateway supports more than 300 connected clients, providing sufficient capacity for environments with multiple users, computers, mobile devices, IoT equipment, and network peripherals.

Five Gigabit Ethernet Ports

The UCG-Ultra includes five Gigabit Ethernet ports supporting 10/100/1000 Mbps connectivity. These ports provide flexible options for WAN and LAN configurations.

Multi-WAN Support

The gateway supports up to four WAN connections, providing flexibility for multiple internet service providers, WAN failover, and internet redundancy configurations.

Advanced Firewall Security

Built-in security features include a stateful firewall, application-aware Layer 7 firewall, intrusion detection and prevention, deep packet inspection, traffic identification, and customizable firewall rules.

VLAN and Network Segmentation

VLAN support allows administrators to create separate logical networks for employees, guests, IoT devices, surveillance equipment, and other network resources.

VPN Connectivity

The UCG-Ultra supports WireGuard, OpenVPN, L2TP, and IPsec site-to-site VPN capabilities for secure remote access and connections between different network locations.

Site Magic SD-WAN

Site Magic provides simplified site-to-site connectivity between compatible UniFi locations, helping organizations connect multiple offices or sites without complex manual VPN configuration.

Compact and Fanless Design

The compact fanless design operates quietly and is suitable for desktop installations in offices, homes, retail spaces, and other environments where low noise and minimal equipment footprint are important.

USB Type-C Power

The UCG-Ultra uses USB Type-C power, providing a convenient and efficient power connection for the compact gateway.

Integrated Bluetooth Management

Bluetooth support simplifies initial device setup and management, while Ethernet connectivity provides the primary network management interface.

Product Specifications

• Brand:Ubiquiti
• Product Family:UniFi
• Product Name:Cloud Gateway Ultra
• Model:UCG-Ultra
• Product Type:Cloud gateway, router, security gateway, and UniFi Network controller
• UniFi Application:UniFi Network
• Managed UniFi Devices:30+
• Connected Clients:300+
• IDS/IPS Routing Throughput:Up to 1 Gbps
• Ethernet Ports:5 x Gigabit RJ45
• Ethernet Speeds:10/100/1000 Mbps
• WAN Ports:Up to 4 configurable WAN ports
• LAN Connectivity:Gigabit Ethernet
• Firewall:Stateful firewall
• Layer 7 Firewall:Application-aware
• Intrusion Detection:Supported
• Intrusion Prevention:Supported
• Deep Packet Inspection:Supported
• Traffic Identification:Supported
• VLAN Support:Supported
• Network Segmentation:Supported
• VPN Server:WireGuard, OpenVPN, L2TP
• Site-to-Site VPN:IPsec, Site Magic
• SD-WAN:Site Magic
• Remote VPN:Teleport
• VPN Client:WireGuard, OpenVPN
• Power Method:USB Type-C
• Power Supply:USB Type-C power adapter
• Cooling:Fanless
• Management:Ethernet, Bluetooth
• Form Factor:Compact desktop
• Operating Temperature:-10 to 40 °C
• Operating Humidity:5% to 95%, non-condensing
• Typical Applications:Home networks, small businesses, offices, retail environments, professional networking, multi-WAN deployments, and UniFi network management
• Network Management:Centralized UniFi Network management
• Installation:Desktop
• Controller Function:Built-in UniFi Network controller
• Recommended Use:Networks requiring centralized UniFi management, routing, firewall security, VLANs, VPN connectivity, and multi-WAN support
