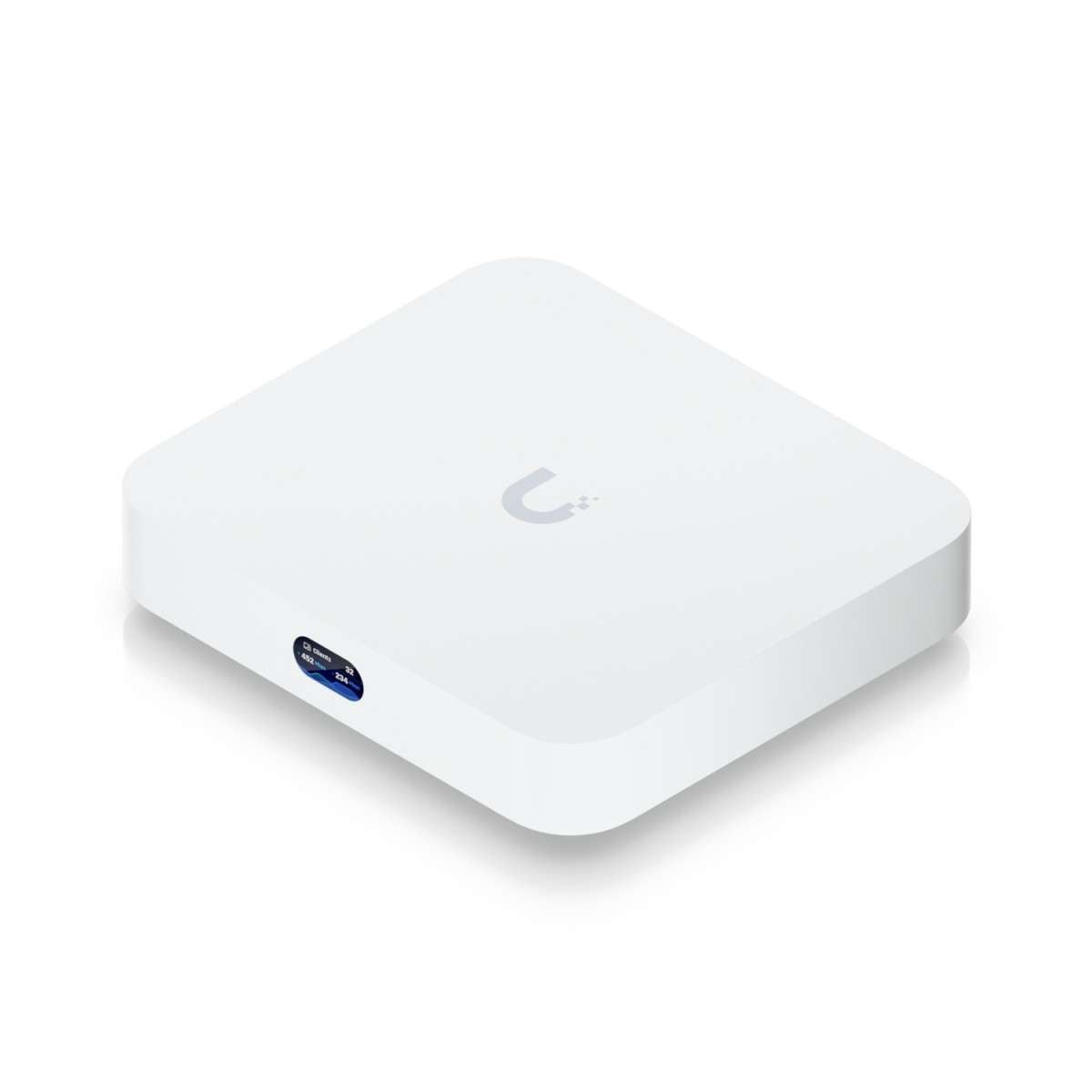

Ubiquiti UniFi Cloud Gateway Max (UCG-Max) 2.5 GbE Cloud Gateway

The Ubiquiti UniFi Cloud Gateway Max (UCG-Max) is a compact, high-performance cloud gateway that combines network routing, firewall security, UniFi device management, VPN connectivity, and UniFi Protect video management in a single appliance. It features five 2.5 GbE Ethernet ports, up to 2.3 Gbps IDS/IPS throughput, support for 30+ UniFi devices and 300+ connected users, and up to four WAN connections. With selectable NVMe SSD storage up to 2 TB, the UCG-Max can also provide local storage for UniFi Protect surveillance, making it a versatile solution for small and medium-sized businesses, offices, professional home networks, retail environments, and multi-site deployments.

Product Features

2.5 GbE Multi-Gigabit Connectivity

The UCG-Max features five 2.5 GbE RJ45 ports supporting 2.5G, 1G, 100M, and 10M Ethernet speeds. This provides high-speed connectivity for modern multi-gigabit internet and local network deployments.

2.3 Gbps IDS/IPS Throughput

With up to 2.3 Gbps of intrusion detection and prevention throughput, the Cloud Gateway Max provides advanced network security while maintaining high-speed routing performance.

Complete UniFi Application Suite

The UCG-Max supports UniFi Network, UniFi Protect, UniFi Access, UniFi Talk, and UniFi Connect, allowing compatible UniFi applications and devices to be managed from a single gateway.

Support for 30+ UniFi Devices

The gateway can manage more than 30 UniFi devices, making it suitable for expanding networks that include UniFi access points, switches, cameras, access control equipment, and other compatible devices.

Support for 300+ Connected Users

The UCG-Max is designed to support more than 300 simultaneously connected users, making it suitable for offices, businesses, hospitality environments, and advanced residential networks.

Multi-WAN Support

The Cloud Gateway Max supports up to four WAN ports, providing flexibility for multiple internet connections, WAN failover, and network resilience.

Advanced Firewall Security

Built-in security features include a stateful firewall, application-aware Layer 7 firewall, deep packet inspection, traffic identification, content filtering, ad blocking, intrusion prevention, and intrusion detection.

VLAN and Traffic Segmentation

VLAN and subnet-based traffic segmentation allows administrators to separate users, devices, guest networks, security systems, and other network resources for improved organization and security.

VPN and SD-WAN Connectivity

The UCG-Max supports WireGuard, OpenVPN, L2TP, IPsec site-to-site VPN, Teleport VPN, and license-free Site Magic SD-WAN, providing secure remote access and connectivity between multiple locations.

NVMe SSD Storage for UniFi Protect

The UCG-Max supports selectable NVMe SSD storage of up to 2 TB. The storage can be used with UniFi Protect for local video recording and management of compatible UniFi cameras.

Compact Desktop Design

With dimensions of 141.8 x 127.6 x 30 mm, the Cloud Gateway Max has a compact desktop form factor that is suitable for offices, network rooms, desks, and space-constrained installations.

Efficient USB-C Power

The gateway uses USB Type-C power with a 5V DC/5A input and has a maximum power consumption of 16.1W, providing an efficient power solution for the compact appliance.

Built-In Status Display

A 0.96-inch status display provides device information directly on the gateway, while Ethernet LEDs provide visual connectivity status.

Bluetooth and Ethernet Management

The UCG-Max supports management through Ethernet and Bluetooth, providing flexible options for device setup and administration.

Product Specifications

• Brand:Ubiquiti
• Product Family:UniFi
• Product Name:Cloud Gateway Max
• Model:UCG-Max
• Product Type:Cloud gateway, router, security gateway, and UniFi controller
• Form Factor:Compact desktop
• UniFi Applications:Network, Protect, Access, Talk, Connect
• Managed UniFi Devices:30+
• Managed Cameras:15 HD, 8 2K, 5 4K
• Managed Access Hubs:Up to 50
• Simultaneous Connected Users:300+
• Maximum WAN Port Count:4
• Ethernet Ports:5 x 2.5 GbE RJ45
• Ethernet Speeds:5G / 1G / 100M / 10M
• IDS/IPS Throughput:3 Gbps
• Firewall:Stateful firewall
• Layer 7 Firewall:Application-aware
• Deep Packet Inspection:Supported
• Content Filtering:Supported
• Intrusion Detection and Prevention:IDS/IPS
• Ad Blocking:Supported
• Traffic Segmentation:VLAN/subnet-based
• SD-WAN:License-free Site Magic
• Site-to-Site VPN:Site Magic, IPsec, OpenVPN
• VPN Server:WireGuard, OpenVPN, L2TP
• Remote VPN:Teleport, Identity Endpoint one-click VPN
• VPN Client:OpenVPN, WireGuard
• NVR Storage:Selectable NVMe SSD up to 2 TB
• Processor:Quad-core ARM Cortex-A53 at 1.5 GHz
• System Memory:3 GB
• Power Method:USB Type-C, 5V DC/5A
• Power Supply:USB Type-C 5V DC/5A adapter included
• Supported Voltage Range:100-240V AC
• Maximum Power Consumption:1W
• Heat Dissipation:55 BTU/hr
• Dimensions:8 x 127.6 x 30 mm
• Weight Without SSD:460 g
• Weight With SSD:519 g
• Enclosure Material:Polycarbonate
• Status Display:96-inch LCM display
• Management:Ethernet, Bluetooth
• LED Indicators:Ethernet
• Reset:1 x factory reset button
• ESD/EMP Protection:Air ±8 kV, contact ±4 kV
• Operating Temperature:-10°C to 40°C
• Operating Humidity:5% to 95%, non-condensing
• Typical Applications:Business networks, office networks, professional home networks, retail locations, multi-site networks, UniFi device management, and UniFi Protect surveillance
• Certifications:CE, FCC, IC, Anatel, SRRC
• Mobile App Compatibility:UniFi iOS and Android applications
• Storage Note:NVMe SSD storage is selectable and supports capacities up to 2 TB.
