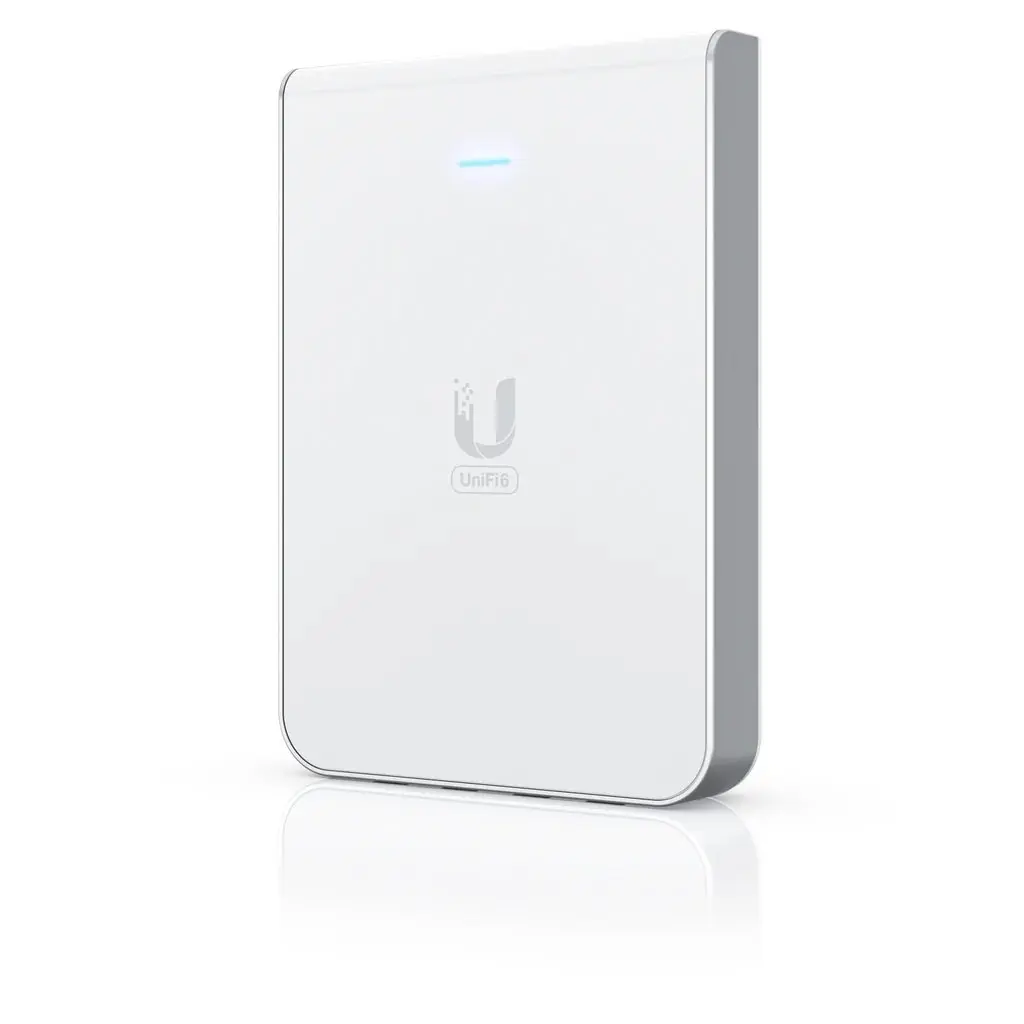

Ubiquiti UniFi 6 In-wall access point – U6-IW

Wall-mounted WiFi 6 AP with 6 spatial streams and a built-in 4-port switch ideal for single-room coverage in hospitality environments.

Features

• WiFi 6
• 6 spatial streams
• 115 m² (1,250 ft²) coverage
• 300+ connected devices
• Powered using PoE/PoE+*
•  GbE ports with (1) PoE output
• GbE uplink

Technical Specifications

• Dimensions         139.7 x 96 x 31.2 mm (5.5 x 3.8 x 1.3″)
• Weight  460 g (1 lb)
• Enclosure material           Plastic, aluminum
• Mount material Aluminum

Hardware

Networking interface

• Data-in: GbE RJ45 port
• Data-out: GbE RJ45 ports
• Management interface   Ethernet

Bluetooth

PoE interface

•  PoE in (PoE output not used)
• PoE out (Requires a PoE+ switch)
• Power method  PoE
• PoE+ (Required for PoE output)
• Power supply     UniFi PoE switch
• 48V, 0.5A PoE adapter (Optional)

Max. power consumption             13.5W (Excluding PoE output)

Max PoE wattage per port by PSE              15.4W*

Requires a PoE+ switch

Voltage range PoE mode                44—57V DC

Max. TX power

• 2.4 GHz
• 5 GHz
• 6 GHz
• 22 dBm
• 26 dBm
• –
• MIMO
• 2.4 GHz
• 5 GHz
• 6 GHz
• 2 x 2 (UL MU-MIMO)
• 4 x 4 (DL/UL MU-MIMO)

Throughput rate

• 2.4 GHz
• 5 GHz
• 6 GHz
• 573.5 Mbps
• 4.8 Gbps

Antenna gain

• 2.4 GHz
• 5 GHz
• 6 GHz
• 5 dBi
• 5.9 dBi

LED         White/blue

Button  Factory reset

Mounting            Wall (Included)

Operating temperature  -30 to 60° C (-22 to 140° F)

Operating humidity         5 to 95% noncondensing

Certifications      CE, FCC, IC

Software

• WiFi standards  802.11a/b/g/n/ac/ax
• Wireless security              WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
• BSSID    8 per radio
• VLAN     802.1Q
• Advanced QoS   Per-user rate limiting
• Guest traffic isolation      Supported
• Concurrent clients            300+
• Zero-wait DFS    Yes

Supported with upcoming firmware versions.

Supported Data Rates

• 802.11a               6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b               1, 2, 5.5, 11 Mbps
• 802.11g               6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11n (WiFi 4)               6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40)
• 802.11ac (WiFi 5)             6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160)
• 802.11ax (WiFi 6)             7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160)

Application Requirements

UniFi Network   Version 6.4.52 and later
