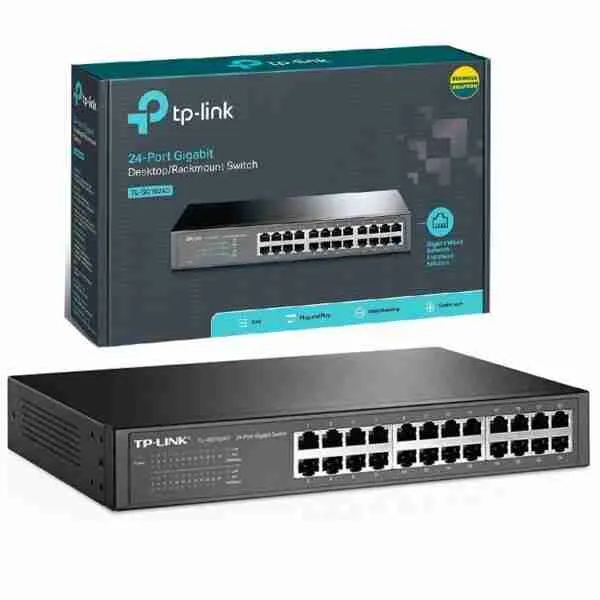

TP-Link 24-Port 10/100/1000Mbps Gigabit Desktop Rackmount Switch – TL-SG1024D

Featured with 24 10/100/1000Mbps ports, TL-SG1024D greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

The TL-SG1024D 24-Port Gigabit switch provides an easy way to make the transition to Gigabit Ethernet. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1024D can save up to 20%* of the power consumption, making it an eco-friendly solution for your business network.

You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG1024D 24-Port Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Power down Idle Ports

When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG1024D can automatically detect the link status of each port and reduce the power consumption of ports that are idle.

Power Budget According to Cable Length

Ideally, shorter cables would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of whether it is 10 or 50 meters (32.8 or 164.0 feet )in length. The TL-SG1024D analyzes the length of the Ethernet cable connected and adjusts the power usage accordingly, rather than keeping the power consumption in a conventional solution.

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100 Mbps or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

TL-SG1024D Specifications

HARDWARE FEATURES

Standards and Protocols                IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x

Interface              24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)

Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)

Fan Quantity      Fanless

Physical Security Lock     No

Power Supply     100-240VAC, 50/60Hz

Power Consumption       Maximum: 13.1W (220V/50Hz)

Dimensions ( W x D x H )               11.6*7.1*1.7 in. (294*180*44 mm)

Mounting            Rack Mountable

Max Power Consumption             13.62W(220V/50Hz)

Max Heat Dissipation      46.44BTU/h

PERFORMANCE

Switching Capacity           48Gbps

Packet Forwarding Rate 35.7Mpps

MAC Address Table          8K

Advanced Functions        • Isolation Mode: Ports 1-22

• Loop Prevention: Ports 1-24

Jumbo Frame     10KB

Green Technology            Yes

Transfer Method               Store-and-Forward

Package Contents             24-Port Gigabit Desktop/Rackmount Switch

Power Cord

Installation Guide

Rackmount Kits

Rubber Feet

Environment      Operating Temperature: 0℃~40℃ (32℉~104℉);

Storage Temperature: -40℃~70℃ (-40℉~158℉);

Operating Humidity: 10%~90% non-condensing;

Storage Humidity: 5%~90% non-condensing
