Merlin 4I Energizer With Keypad

KSh 30,000.00

Category: Electric & Perimeter Fencing

Description
Reviews (0)

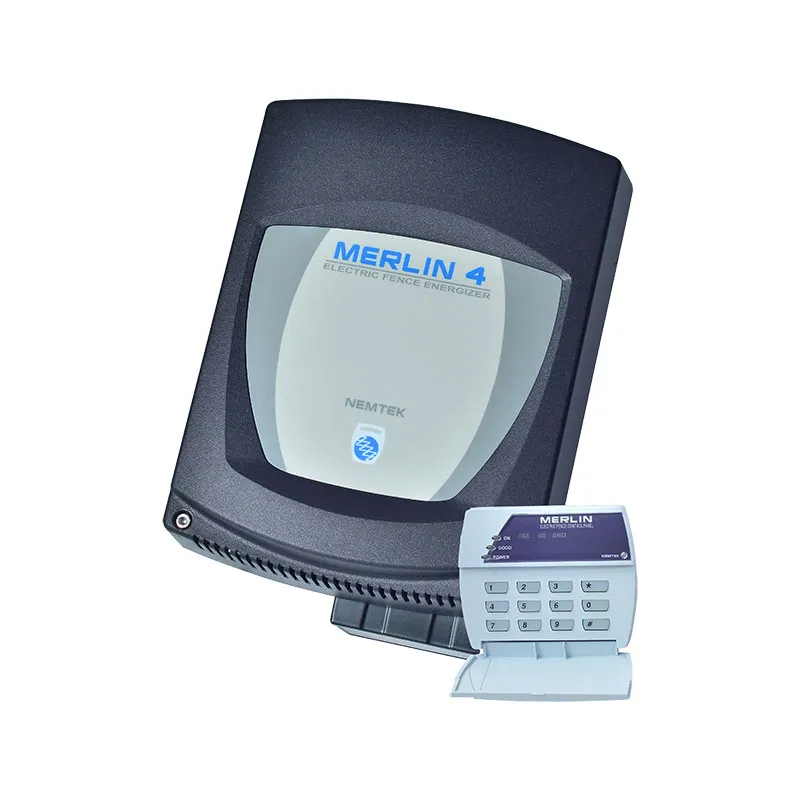

Merlin 4I Energizer With Keypad

Merlin 4i energizer with keypad includes a keypad for controlling and programming the energizer. The energizer can be installed near the fence and the keypad can be located where it is most convenient for the user. This allows the user to control the energizer remotely, with up to four keypads.

Merlin 4i Energizer with keypad Features:-

3.7 Joule output energy (single zone)
Robust and flexible design for home and commercial security
Built-in alarm monitors tampering or faults on the high voltage and earth fence wires
Connectable to armed response radio or GSM module
Lightning and power surge protection
Intelligent power saving to extend battery life
Powered by 230V mains and includes a built-in battery for backup power
Built-in gate alarm input to monitor if the gate is open or closed
A gate chime is available to alert that the gate has been opened or closed
The fence voltage outputs can be adjusted using the keypad
The siren and gate outputs can be bypassed using the keypad

Specifications:

Enclosure size	285(L) x 212(W) x 120(D)mm
Weight	3.1kg excluding battery (7AH) 5.3kg including battery (7AH)
IP rating	IPx4
Operating temperature	-10°C to 50°C
Operating humidity	< 80% non-condensing
Electrical supply voltage	240V
Typical power consumption	18VA (normal operating conditions)
Standby Time	24hrs (fully charged battery)
Energy output	3.7 Joule per zone (500 Ohms load)
Open circuit voltage	8000V
