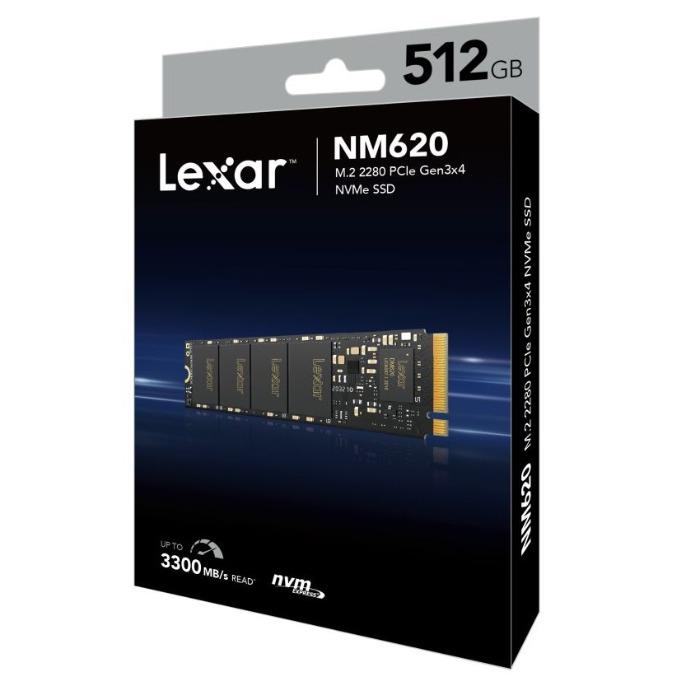

Lexar LNM620 Internal SSD M.2 PCIe Gen 3×4 NVMe 2280 512GB – LNM620X512G-RNNNG

The Lexar LNM620 512GB Internal SSD is a high-performance NVMe solid-state drive designed to improve system responsiveness, boot times, application loading, gaming, and file transfer performance. It uses a PCIe Gen 3×4 interface with NVMe technology and a compact M.2 2280 form factor, making it suitable for compatible laptops, desktop computers, and workstations. With 512GB of storage capacity and 3D NAND flash memory, it provides ample space for operating systems, applications, games, documents, multimedia files, and other digital content. Its solid-state construction has no moving mechanical parts, providing reliable performance and resistance to everyday shock and vibration.

Product Features

512GB Storage Capacity

Provides 512GB of storage space for operating systems, applications, games, documents, photos, videos, and other digital files.

PCIe Gen 3×4 Interface

Uses a PCIe Gen 3×4 interface to provide high-speed data transfer and responsive storage performance on compatible systems.

NVMe 1.4 Technology

Supports NVMe 1.4 technology for efficient communication between the SSD and the host computer, helping improve data access and system responsiveness.

M.2 2280 Form Factor

The compact M.2 2280 design is approximately 80 mm long and 22 mm wide, making it suitable for compatible laptops, desktop computers, and workstations with an M.2 PCIe NVMe slot.

3D NAND Flash Memory

Uses 3D NAND flash technology to provide efficient solid-state storage without the moving mechanical components found in traditional hard disk drives.

High-Speed Storage Performance

The LNM620 series is designed for fast sequential data transfers, helping reduce system boot times, application loading times, and large file transfer times. Actual performance depends on the computer configuration and workload.

LDPC Error Correction

Low-Density Parity Check technology helps detect and correct data errors, supporting data integrity and consistent storage performance.

Shock and Vibration Resistance

The solid-state design contains no moving mechanical parts, providing greater resistance to shock and vibration than conventional mechanical hard drives.

Efficient Power Consumption

Designed for efficient operation, the SSD is suitable for both desktop and compatible laptop systems where responsive and energy-efficient storage is required.

Product Specifications

• Brand: Lexar
• Series: LNM620
• Model: LNM620X512G-RNNNG
• Product Type: Internal solid-state drive
• Storage Capacity: 512GB
• Storage Technology: 3D NAND
• Form Factor: M.2 2280
• Interface: PCIe Gen 3×4
• Protocol: NVMe 1.4
• Sequential Read Speed: Up to 3300 MB/s
• Sequential Write Speed: Up to 3000 MB/s
• Installation Type: Internal
• Dimensions: Approximately 80 x 22 x 2.25 mm
• Weight: Approximately 9 g
• Shock Resistance: Up to 1500 G at 0.5 ms
• Vibration Resistance: Up to 20 G
• Operating Temperature: 0 degrees C to 70 degrees C
• Storage Temperature: -40 degrees C to 85 degrees C
• Compatibility: Systems with a compatible M.2 PCIe NVMe slot
• Primary Uses: Operating system installation, applications, gaming, file storage, system upgrades, and data transfer
• Power: Supplied through the M.2 interface

• Warranty: 5-year limited warranty
