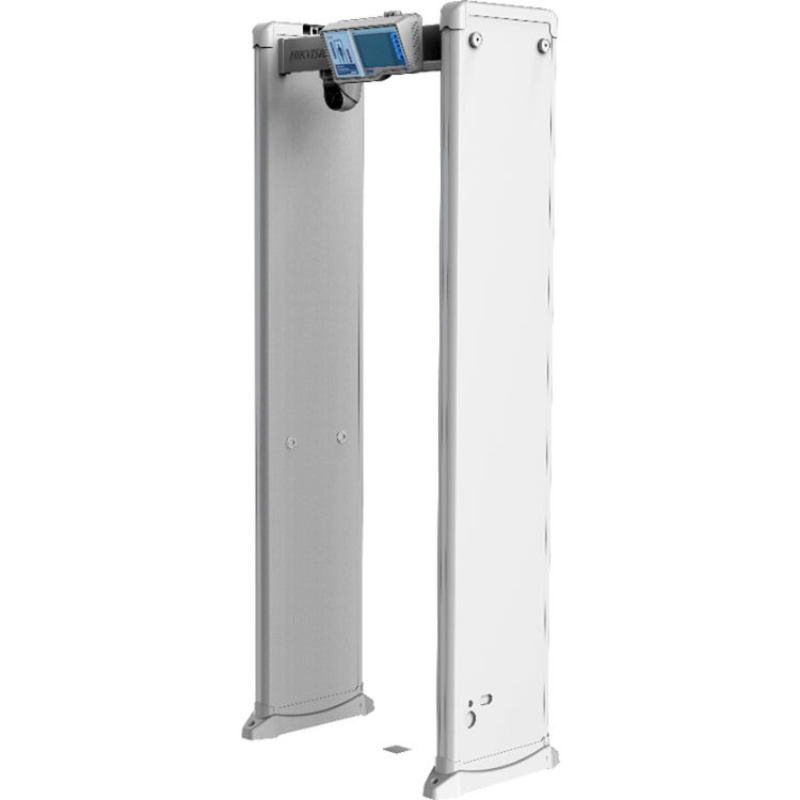

Hikvision ISD-SMG318LT-F Temperature Measurement Walkthrough Metal Detector with Thermal Imaging

The Hikvision ISD-SMG318LT-F is a professional security inspection system that combines a walkthrough metal detector, thermal temperature screening, and integrated surveillance camera in one unified unit. It is designed for high-security entry points such as airports, government buildings, schools, hospitals, stadiums, and corporate facilities where both security screening and health monitoring are required. The system provides contactless body temperature measurement, intelligent metal detection with multi-zone alarm identification, and real-time video monitoring for enhanced entry control. Its advanced dual-sensor design improves safety, operational efficiency, and access control in busy environments across Kenya.

Product Features

Integrated Metal Detection and Thermal Screening

The system combines a walkthrough metal detector with thermal imaging technology to simultaneously detect metallic objects and measure body surface temperature without physical contact.

High-Resolution Thermal Imaging Sensor

Uses a vanadium oxide uncooled thermal sensor with 160 × 120 resolution to detect body temperature variations accurately within controlled entry environments.

AI-Based Temperature Measurement

Supports intelligent multi-target detection and temperature screening, enabling fast and efficient processing of individuals passing through the gate.

Multi-Zone Metal Detection System

Capable of identifying metal objects across up to 18 detection zones, providing precise location-based alerts for improved security inspection.

Visible Light Surveillance Camera

Includes a built-in 4MP optical camera that captures high-definition video for real-time monitoring and recording of entry points.

Dual-Spectrum Imaging Fusion

Combines thermal and visible light imaging to provide clearer situational awareness and improved detection accuracy in entry environments.

Audible and Visual Alarm System

Features strobe lights and sound alerts that activate when metal objects or abnormal temperature readings are detected.

High Sensitivity Adjustment Levels

Supports up to 255 sensitivity levels, allowing customization based on security requirements and environmental conditions.

IP-Rated Durable Construction

Designed with IP-rated protection for both the detector and camera components, ensuring reliable operation in controlled indoor environments.

Network and Remote Monitoring Support

Allows integration with surveillance systems and remote management platforms for centralized monitoring and reporting.

Product Specifications

• Brand: Hikvision
• Model: ISD-SMG318LT-F
• Product Type: Walkthrough Metal Detector with Thermal Imaging System
• Thermal Sensor Type: Uncooled vanadium oxide microbolometer
• Thermal Resolution: 160 × 120
• Temperature Measurement Range: 30°C to 45°C
• Temperature Accuracy: ±0.5°C (without blackbody), ±0.3°C (with blackbody)
• Optical Camera: 4MP CMOS sensor (1/2.7″)
• Optical Resolution: 2688 × 1520
• Lens: 4 mm fixed lens
• Field of View (Thermal): 50° × 37.2°
• Field of View (Optical): 84° × 44.8°
• Detection Zones: Up to 18 zones
• Sensitivity Levels: Up to 255 adjustable levels
• Alarm System: Audible alarm and strobe light indicator
• Video Compression: H.265 / H.264 / MJPEG
• IR Illumination: Up to 15 m (optical module)
• Storage: Supports microSD card up to 256 GB
• Network Support: Ethernet connectivity for remote monitoring
• Operating Temperature: Indoor controlled environments (approx. 0°C to 40°C recommended)
• Power Supply: AC input with low-power consumption design
• Installation Type: Floor-standing walkthrough gate system
• Application: Airports, schools, hospitals, offices, stadiums, government buildings, and secure facilities
• Condition: New genuine Hikvision product
