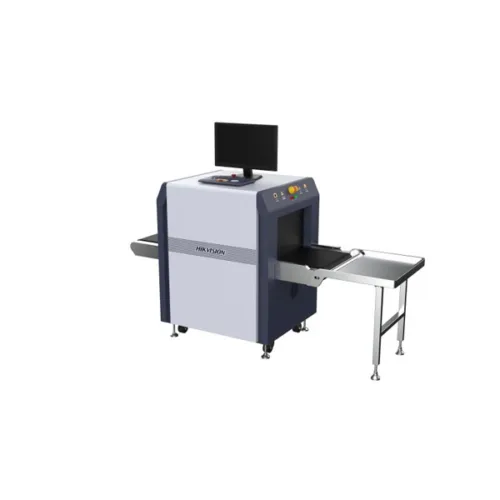

Hikvision ISD-SC5030S-2CVL Intelligent X-Ray Baggage Security Inspection System

The Hikvision ISD-SC5030S-2CVL Intelligent X-Ray Baggage Security Inspection System is an advanced security screening solution designed for airports, government buildings, courts, schools, logistics centers, hotels, commercial facilities, and other high-security environments. Powered by intelligent image analysis and deep learning technology, this X-ray scanner delivers high-resolution imaging for accurate detection of prohibited items, suspicious objects, and concealed threats. Its compact design, efficient screening capabilities, and reliable continuous operation make it an ideal choice for organizations seeking professional baggage and parcel inspection solutions in Kenya.

Product Features

Intelligent Threat Detection

Equipped with advanced deep learning algorithms that assist operators in identifying prohibited items and suspicious objects, improving screening accuracy and operational efficiency.

High-Resolution X-Ray Imaging

Generates detailed X-ray images that enable operators to clearly inspect baggage contents and identify concealed items with greater confidence.

Advanced Material Classification

Automatically differentiates organic, inorganic, and metallic materials using color-coded imaging technology, simplifying object identification during inspections.

High Penetration Capability

Provides excellent penetration performance for scanning dense baggage and packages, helping security personnel detect hidden threats and prohibited items.

Continuous Duty Operation

Designed for uninterrupted operation in busy security checkpoints, ensuring reliable performance in high-traffic environments.

Dual Video Monitoring System

Features integrated video monitoring channels that enhance operational awareness and support comprehensive security management.

User Authentication Security

Supports fingerprint and password-based authentication to improve system security and operator accountability.

Large Full HD Display

Equipped with a high-definition display that provides clear image visualization and detailed inspection results for operators.

Low Radiation Leakage Design

Built with advanced radiation shielding technology to ensure safe operation while complying with industry safety requirements.

Centralized Security Management

Supports integration with security management platforms for centralized monitoring, event tracking, and inspection data management.

Product Specifications

• Brand: Hikvision
• Model: ISD-SC5030S-2CVL
• Product Type: Intelligent X-Ray Baggage Security Inspection System
• Tunnel Size: 500 mm × 300 mm
• Maximum Conveyor Load: 100 kg
• Conveyor Speed: 0.2 to 0.22 m/s
• Steel Penetration: Up to 30 mm
• Wire Resolution: Up to 40 AWG
• Spatial Resolution: 1.0 mm
• X-Ray Generator Voltage: 140 kV
• X-Ray Tube Current: Adjustable up to 0.8 mA
• X-Ray Generator Cooling: Oil-cooled system
• Operating Mode: Continuous operation
• Radiation Leakage: Less than 1 μGy/h
• Single Inspection Dose: Less than 5 μGy
• Display Size: 21.5 inches
• Display Resolution: 1920 × 1080
• Camera Type: Progressive Scan CMOS
• Video Compression: H.265, H.264, MJPEG
• Maximum Video Resolution: 1920 × 1080
• Frame Rate: Up to 25 fps
• Authentication Methods: Fingerprint and password
• Storage Retention: Up to 30 days
• Power Supply: 220 VAC ±10%, 50 Hz
• Power Consumption: Less than 0.56 kVA
• Operating Temperature: 0°C to 45°C
• Operating Humidity: 10% to 90% non-condensing
• Dimensions: 1586 × 760 × 1160 mm
• Weight: Approximately 340 kg
• Material Identification: Organic, inorganic, and metallic object recognition
• Intelligent Analysis: Deep learning-assisted threat detection
• Application: Baggage inspection, parcel screening, and security checkpoint operations
• Suitable for airports, government institutions, logistics facilities, educational institutions, hotels, commercial buildings, and critical infrastructure sites
• Supports centralized security management integration
• Designed for professional security screening environments and high-throughput inspection operations
