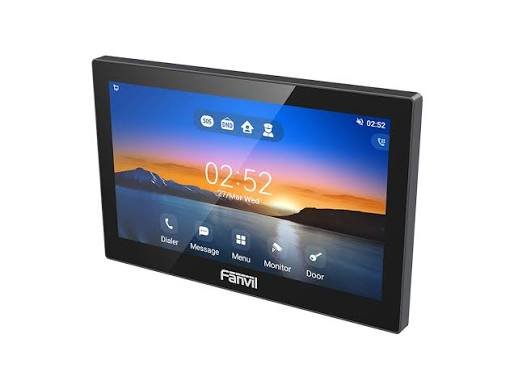

Fanvil i505W Android Indoor Station

The Fanvil i505W Android Indoor Station is a 7-inch SIP video intercom designed for residential communities, apartments, villas, hotels, and office buildings. Powered by Android 9.0, it combines video intercom, remote door unlocking, security monitoring, alarm integration, and third-party application support in a compact wall-mounted unit. Its 1024 x 600 capacitive touchscreen provides a clear and intuitive interface, while dual-band 2.4 GHz and 5 GHz Wi-Fi, 10/100 Mbps Ethernet, and PoE support provide flexible installation options. The i505W also supports full-duplex hands-free communication with Acoustic Echo Cancellation, video decoding up to 1080p, third-party IP camera monitoring, and multiple alarm and control interfaces for integration with wider security and access control systems.

Product Features

7-Inch Color Touchscreen

The Fanvil i505W features a 7-inch color capacitive touchscreen with a 1024 x 600 resolution. The responsive display provides convenient access to intercom, monitoring, door access, and device functions.

Android 9.0 Operating System

Running Android 9.0, the indoor station supports compatible third-party applications and provides flexibility for customized industry applications and system integration.

SIP Video Intercom

The i505W supports SIP 2.0 over UDP, TCP, and TLS, enabling IP-based audio and video communication with compatible SIP intercom and access control systems.

Two-Way Hands-Free Communication

A built-in 2 W multimedia speaker and Acoustic Echo Cancellation support full-duplex hands-free communication for clear conversations between the indoor station and entrance or door stations.

HD Video Monitoring

The indoor station supports hardware video decoding for H.264 and optional H.265, with supported video resolutions ranging from QVGA and CIF to VGA, 4CIF, 720p, and 1080p. It can also display live video feeds from compatible third-party IP cameras.

Remote Door Unlocking

The Fanvil i505W can be integrated with compatible access control systems to provide convenient remote door unlocking from the indoor station.

Dual-Band Wi-Fi

The i505W supports 2.4 GHz and 5 GHz Wi-Fi, providing flexible wireless connectivity for installations where wired network cabling may be less convenient.

Multiple Security Interfaces

Eight alarm inputs, a short-circuit output, a doorbell input, and a reserved RS-485 interface allow the indoor station to connect with compatible sensors and security devices.

PoE and DC Power Support

The device supports IEEE 802.3af PoE as well as a 12 V DC power supply, giving installers greater flexibility when planning the network and power infrastructure.

Third-Party IP Camera Integration

Compatible third-party IP cameras can be monitored from the indoor station, allowing users to view additional areas of a property from the touchscreen.

Customizable Communication Functions

The i505W supports customizable incoming call ringtones, Do Not Disturb scheduling, message sending and receiving, and compatible third-party application installation.

Wall-Mounted Design

The compact ABS housing is designed for wall-mounted installation, making the indoor station suitable for apartments, homes, offices, hotels, villas, and other indoor environments.

Product Specifications

• Brand: Fanvil
• Model: i505W
• Product type: Android SIP video indoor station
• Operating system: Android 9.0
• Display: 7-inch color capacitive touchscreen
• Display resolution: 1024 x 600 pixels
• Body material: ABS
• Speaker: 2 W multimedia speaker
• Communication protocol: SIP 2.0
• SIP transport: UDP, TCP, TLS
• Audio codecs: G.711A/U, G.729AB, iLBC, G.722, Opus
• Hands-free communication: Full-duplex with Acoustic Echo Cancellation (AEC)
• Video codecs: H.264; H.265 optional
• Supported video resolutions: QVGA, CIF, VGA, 4CIF, 720p, 1080p
• Wi-Fi: Dual-band 2.4 GHz and 5 GHz
• Ethernet: 1 x 10/100 Mbps adaptive Ethernet port
• PoE: IEEE 802.3af
• Power supply: DC 12 V / 1 A or PoE
• Power consumption via PoE: 2.83 to 7.64 W
• Power consumption via adapter: 2.46 to 6.51 W
• Alarm inputs: 8
• Short-circuit output: 1
• Doorbell input: 1
• RS-485: 1 reserved interface
• DTMF: In-band and out-of-band via RFC2833 and SIP INFO
• Additional functions: Remote door unlocking, third-party IP camera monitoring, customizable ringtones, DND scheduling, message sending and receiving, third-party application support
• Installation: Wall-mounted
• Dimensions: 177.38 x 113.99 x 22.5 mm
• Operating temperature: -10°C to +50°C
• Storage temperature: -40°C to +80°C
• Operating humidity: 10% to 90% RH
• Applications: Residential communities, villas, apartments, hotels, offices, and other access control and security environments
