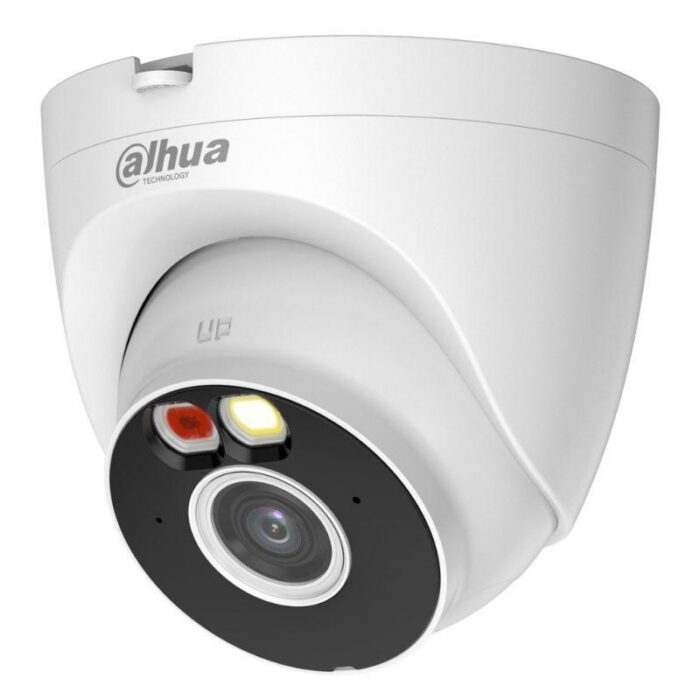

Dahua IPC-HDW1230DT-STW 2MP IR Fixed-Focal Wi-Fi Eyeball Network Camera

The Dahua IPC-HDW1230DT-STW 2MP IR Fixed-Focal Wi-Fi Eyeball Network Camera is a high-performance wireless surveillance solution designed for homes, offices, retail stores, warehouses, and small business environments. Equipped with a 2MP Full HD CMOS image sensor, this Wi-Fi network camera delivers clear 1080p video with efficient H.265 video compression for reduced bandwidth and storage usage. Featuring built-in dual-band Wi-Fi antennas, two-way audio with an integrated microphone and speaker, infrared night vision up to 30 metres, and remote monitoring through the Dahua DMSS mobile app, the IPC-HDW1230DT-STW offers reliable 24/7 security with simple installation. Its IP67-rated weather-resistant housing makes it suitable for both indoor and outdoor applications.

Product Features

2MP Full HD Video Resolution

The camera captures crisp 1920 × 1080 Full HD video, providing clear images for monitoring people, vehicles, and property with excellent detail.

Fixed-Focal Lens

Available with a 2.8 mm or 3.6 mm fixed-focal lens, the camera offers a wide viewing angle suitable for entrances, corridors, offices, parking areas, and residential properties.

Built-in Dual-Antenna Wi-Fi

The integrated 2.4 GHz dual-antenna Wi-Fi provides a stable wireless connection with coverage of up to 120 metres in open areas, allowing flexible installation without extensive network cabling.

Infrared Night Vision up to 30 Metres

Built-in infrared illumination enables clear monitoring in complete darkness with a night vision range of up to 30 metres, ensuring continuous surveillance around the clock.

Two-Way Audio Communication

The built-in microphone and speaker allow users to communicate remotely with visitors or family members through the Dahua DMSS mobile application.

Smart Motion Detection

The camera supports intelligent motion detection and abnormal event detection, sending instant notifications whenever movement or unusual activity is detected.

H.265 Smart Video Compression

Support for Smart H.265 and H.264 compression significantly reduces bandwidth usage and storage requirements while maintaining high-quality video.

Remote Monitoring via DMSS App

View live video, receive alerts, manage settings, and play back recordings remotely using the Dahua DMSS application on Android and iOS devices.

Flexible Storage Options

The camera supports microSD cards of up to 256 GB for local recording and is compatible with ONVIF-supported NVRs for centralized video management.

IP67 Weather-Resistant Housing

Built to withstand rain, dust, and harsh outdoor conditions, the IP67-rated housing ensures dependable performance throughout the year.

Product Specifications

• Brand: Dahua
• Model: IPC-HDW1230DT-STW
• Product Type: Wi-Fi Eyeball Network Camera
• Resolution: 2MP (1920 × 1080)
• Image Sensor: 1/2.8-inch CMOS
• Lens Options:8 mm or 3.6 mm fixed-focal lens
• Connectivity:4 GHz Wi-Fi and 10/100 Mbps Ethernet
• Night Vision Range: Up to 30 metres
• Audio: Built-in microphone and speaker with two-way audio
• Video Compression: Smart H.265, H.265, Smart H.264, H.264
• Motion Detection: Yes
• Storage: Supports microSD card up to 256 GB
• Mobile App: Dahua DMSS
• Network Compatibility: ONVIF Profile S/Profile T, CGI, P2P
• Power Supply: 12 V DC
• Weather Protection: IP67
• Operating Temperature: -30°C to +60°C
• Applications: Homes, offices, retail stores, warehouses, schools, parking areas, entrances, and perimeter security
