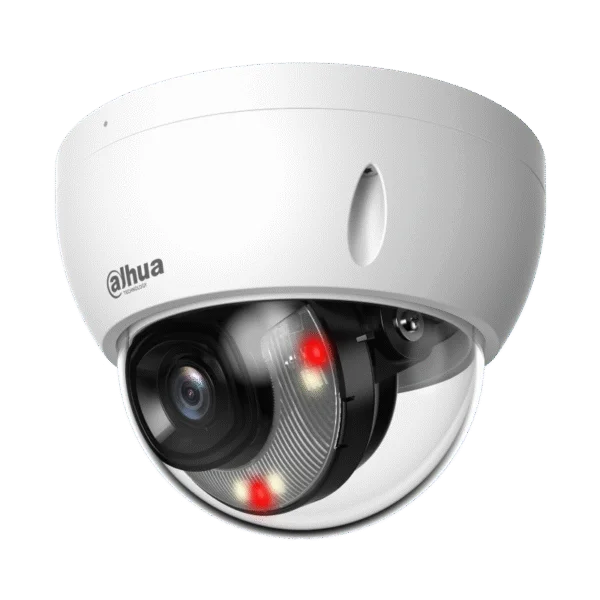

Dahua IPC-HDBW2449E-S-IL 4MP Smart Dual Light Dome IP Camera

The Dahua IPC-HDBW2449E-S-IL 4MP camera is a high-definition dome IP camera designed for homes, offices, shops, schools, warehouses, and perimeter surveillance where sharper image detail and reliable day-and-night monitoring are important. It records in 4MP 2688 × 1520 resolution, supports Smart Dual Light technology with both infrared and warm light illumination, and uses H.265 compression to reduce bandwidth and storage usage. As part of Dahua’s WizSense range, this camera also supports human and vehicle classification for smarter event detection, includes a built-in microphone for audio recording, supports microSD edge storage up to 256GB, and features IP67 weather protection with IK10 vandal resistance for dependable indoor and outdoor CCTV installations.

Product Features

4MP High-Definition Video Quality

The camera captures footage at 2688 × 1520 resolution, delivering sharper and more detailed video than a standard 2MP CCTV camera. This makes it suitable for entrances, retail spaces, office areas, compounds, corridors, and business premises where clearer subject detail is needed.

Smart Dual Light for Improved Night Monitoring

The Smart Dual Light system combines infrared illumination up to 30 metres with warm light up to 30 metres, helping the camera maintain visibility in darkness while supporting clearer night-time monitoring. It can intelligently switch lighting modes based on detected targets to improve usable footage while reducing unnecessary light pollution.

Human and Vehicle Classification

As a WizSense model, the IPC-HDBW2449E-S-IL supports deep learning-based human and vehicle classification for functions such as tripwire and intrusion detection. This helps reduce false alarms caused by general movement and makes surveillance alerts more relevant for homes and businesses.

Built-In Microphone for Audio Recording

The camera includes a built-in microphone, allowing it to capture audio together with video for more complete surveillance records. This is useful for shop counters, reception areas, entrances, and office monitoring points.

H.265 Compression for Lower Storage and Bandwidth Usage

Support for H.265, H.264, Smart H.265+, and Smart H.264+ helps reduce network bandwidth and storage requirements while maintaining good image quality. This makes the camera efficient for continuous recording on compatible NVR systems.

Supports microSD Card Storage up to 256GB

The IPC-HDBW2449E-S-IL supports microSD cards up to 256GB, allowing local edge recording directly on the camera. This is useful for standalone installations, backup recording, or smaller surveillance setups without constant NVR dependency.

IP67 Weatherproof and IK10 Vandal-Resistant Design

With IP67 weather protection and IK10 vandal resistance, the camera is built to handle both outdoor exposure and harsh environments. This makes it suitable for gates, walkways, shop exteriors, parking areas, school compounds, and other exposed installation points.

Flexible Installation with PoE and 12V DC Power

The camera supports 12V DC power and Power over Ethernet (PoE), giving installers flexible deployment options and helping simplify cabling in IP surveillance systems.

Product Specifications

• Brand: Dahua
• Model: IPC-HDBW2449E-S-IL
• Product Type: 4MP Smart Dual Light Fixed-Focal Dome WizSense Network Camera
• Resolution: 4MP, up to 2688 × 1520
• Image Sensor: 1/2.9-inch CMOS
• Lens Type: Fixed-focal lens
• Lens Options: 2.8mm / 3.6mm depending on model version
• Maximum Aperture: F1.6
• Frame Rate: Up to 20fps at 2688 × 1520, up to 25/30fps at 2560 × 1440
• Video Compression: H.265, H.264, Smart H.265+, Smart H.264+
• Night Vision: IR illumination up to 30m
• Warm Light Distance: Up to 30m
• Audio: Built-in microphone
• Smart Features: Human and vehicle classification, intrusion detection, tripwire, motion detection, video tampering, audio detection
• Image Enhancement: WDR, 3D NR, HLC, BLC, ROI, rotation mode, digital watermarking
• Storage: Supports microSD card up to 256GB
• Network Interface: RJ45 10/100 Mbps Ethernet
• Power Supply: 12V DC / PoE
• Ingress Protection: IP67
• Impact Protection: IK10
• Use Environment: Indoor and outdoor
• Application: Home security, office surveillance, retail monitoring, warehouse monitoring, school security, and perimeter protection
