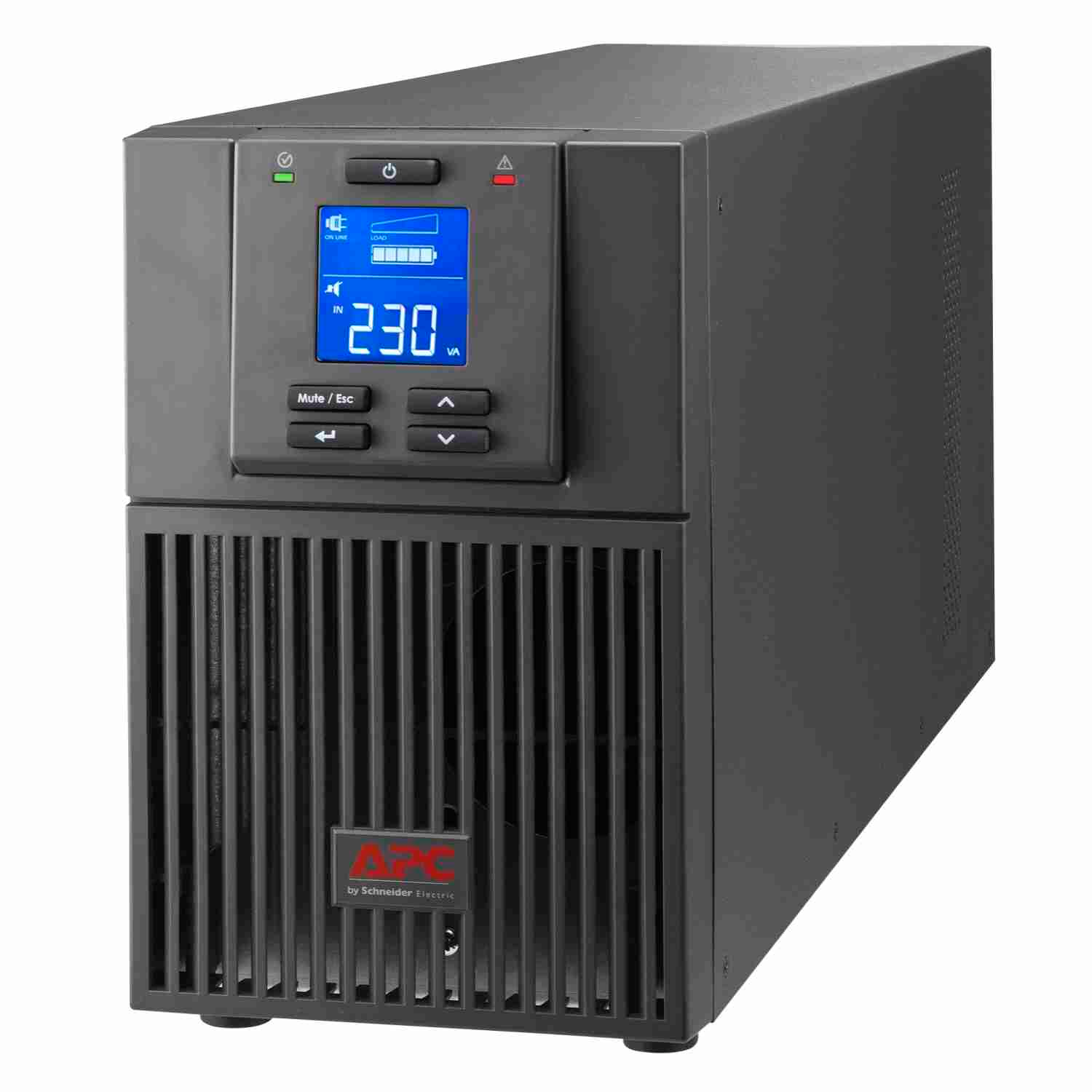

APC Easy UPS SRV1Ki 1000VA Online UPS

The APC Easy UPS SRV1Ki 1000VA is a double-conversion online UPS designed to provide continuous, stable, and reliable power protection for servers, networking equipment, storage devices, telecommunications systems, and other sensitive electronic equipment. With a 1000VA/800W capacity, pure sine wave output, automatic voltage and frequency regulation, and a tower design, the APC SRV1Ki provides consistent power quality while protecting connected equipment from power interruptions and electrical disturbances. It also features an easy-to-read LCD interface, energy-saving ECO mode, temperature-compensated battery charging, and an intelligent card slot for optional network management.

Product Features

Double-Conversion Online UPS

The APC SRV1Ki uses double-conversion online technology to continuously regulate incoming power and supply connected equipment with stable output power. This design provides a high level of power protection for sensitive IT and electronic equipment.

1000VA / 800W Power Capacity

With a rated capacity of 1000VA and 800W, the UPS can support a range of professional IT and networking equipment. The actual supported load depends on the power requirements of the connected devices.

Pure Sine Wave Output

The SRV1Ki delivers pure sine wave output when operating on battery power. This provides clean power suitable for sensitive equipment and devices that require stable electrical power.

Continuous Power Protection

Online UPS technology helps protect connected equipment from power interruptions, voltage fluctuations, electrical noise, and other common power disturbances by continuously conditioning the incoming power.

Automatic Voltage and Frequency Regulation

The UPS regulates voltage and frequency to help maintain consistent power for connected equipment. This reduces the impact of variations in the utility supply on sensitive electronic devices.

LCD Status Display

An easy-to-read LCD interface provides detailed information about UPS operating status, power conditions, battery status, and other key operating parameters. This makes it easier to monitor the system locally.

ECO Energy-Saving Mode

The APC SRV1Ki includes an ECO mode designed to improve operating efficiency when appropriate power conditions are available. This can help reduce energy consumption during suitable operating conditions.

Intelligent Battery Charging

Temperature-compensated battery charging helps manage the charging process according to battery conditions. This feature is designed to support reliable battery operation and help extend battery service life.

Intelligent Card Slot

The UPS includes an intelligent card slot for optional management accessories. A compatible network management card can provide additional monitoring and management capabilities for supported installations.

Tower Configuration

The SRV1Ki uses a tower form factor, making it suitable for standalone installation in server rooms, network closets, offices, and other IT environments where rack-mounted installation is not required.

Product Specifications

• • Brand: APC by Schneider Electric
  • Product Series: Easy UPS On-Line
  • Model: SRV1Ki
  • Product Type: Online UPS
  • UPS Topology: Double-conversion online
  • Rated Capacity: 1000VA
  • Power Capacity: 800W
  • Output Waveform: Pure sine wave
  • Nominal Input Voltage: 230V
  • Nominal Output Voltage: 230V
  • Output Frequency: 50/60 Hz
  • Frequency Regulation: Automatic
  • Output Configuration: 3 x IEC C13 outlets
  • Display: LCD
  • Energy-Saving Mode: ECO mode
  • Battery Charging: Intelligent temperature-compensated charging
  • Battery Type: Sealed lead-acid battery
  • Replacement Battery: Available
  • Communication Interfaces: USB and RS-232
  • Intelligent Card Slot: Supported
  • Form Factor: Tower
  • Voltage Regulation: Automatic
  • Power Protection: Online power conditioning, battery backup, and protection against power disturbances
  • Typical Applications: Servers, networking equipment, storage devices, telecommunications equipment, security systems, and other sensitive electronic equipment
  • Installation: Tower / standalone installation
