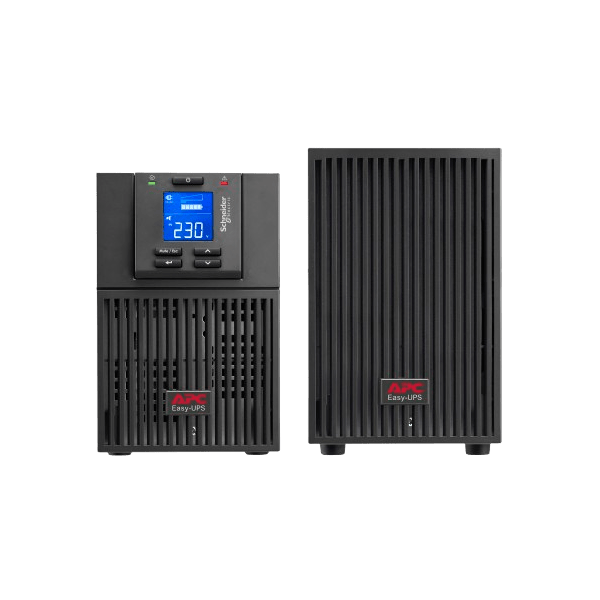

APC Easy UPS SRV1Ki 1000VA Online UPS

The APC Easy UPS SRV1Ki 1000VA Online UPS is a double-conversion power protection solution designed to deliver clean, stable, and uninterrupted power to servers, networking equipment, storage systems, telecommunications devices, security equipment, and other sensitive electronics. With a 1000VA / 800W capacity, pure sine wave output, zero transfer time, automatic voltage and frequency regulation, and a compact tower design, the APC SRV1Ki helps protect critical equipment from power outages, voltage fluctuations, surges, electrical noise, and other power disturbances. Its LCD display, ECO mode, intelligent battery management, USB and RS-232 communication, and optional network management support make it suitable for professional IT and business environments.

Product Features

Double-Conversion Online Technology

The APC SRV1Ki uses double-conversion online UPS technology to continuously regulate incoming power and provide stable output power to connected equipment. This design provides zero transfer time during power interruptions, helping connected devices remain operational without a switching delay.

1000VA / 800W Power Capacity

With a 1000VA capacity and 800W power rating, the UPS provides backup power for compatible servers, network equipment, storage devices, workstations, and other IT equipment. The connected load should remain within the rated capacity of the UPS.

Pure Sine Wave Output

The SRV1Ki delivers pure sine wave AC output, including during battery operation. This clean waveform makes it suitable for sensitive electronic equipment and IT devices that require stable power.

Wide Input Voltage Range

The UPS accepts a broad range of incoming voltage conditions, helping it operate in environments where mains power is subject to fluctuations. This reduces unnecessary battery usage during moderate voltage variations.

Configurable Output Voltage

The output voltage can be configured to 220V, 230V, or 240V, providing flexibility for installations with different supported voltage requirements.

Zero Transfer Time

Because the SRV1Ki operates using online double-conversion technology, it provides zero transfer time when switching between utility power and battery operation. This helps protect sensitive equipment from interruptions caused by conventional transfer switching.

Intelligent Battery Management

The UPS uses intelligent battery charging and temperature-compensated charging to help maintain battery performance. Its sealed lead-acid battery system provides backup power when utility electricity is unavailable.

LCD Status Display

The front-panel LCD provides real-time information about UPS operation, input and output conditions, battery status, load level, and alarms, making local monitoring and troubleshooting easier.

ECO Energy-Saving Mode

ECO mode provides an energy-saving operating option for applications where full online power conditioning is not required. This can help improve energy efficiency under suitable operating conditions.

Automatic and Manual Bypass

The SRV1Ki includes internal automatic and manual bypass functionality. The bypass provides an alternative power path under supported operating and maintenance conditions.

USB and RS-232 Communication

USB and RS-232 communication ports allow the UPS to connect to compatible computers and management systems. Supported software can be used to monitor UPS status and manage power events.

Intelligent Card Slot

An intelligent card slot supports an optional compatible management card, providing additional monitoring and network management capabilities for professional IT environments.

Three IEC C13 Outputs

The UPS features three IEC C13 output sockets for connecting compatible servers, networking equipment, storage devices, and other IT equipment while keeping the combined load within the UPS’s rated capacity.

Compact Tower Design

The tower configuration allows the UPS to be installed as a standalone unit without requiring a rack enclosure. It is suitable for server rooms, offices, network closets, telecommunications areas, and other professional environments.

Product Specifications

• • Brand: APC by Schneider Electric
  • Product Series: Easy UPS On-Line
  • Model: SRV1Ki
  • Product Type: Online UPS
  • UPS Topology: Double-conversion online
  • Rated Capacity: 1000VA
  • Rated Power: 800W
  • Output Waveform: Pure sine wave
  • Nominal Input Voltage: 230V
  • Input Voltage Range: 110V to 285V at half load; 160V to 280V at full load
  • Configurable Output Voltage: 220V / 230V / 240V
  • Output Frequency: 50/60 Hz
  • Input Frequency: 40 to 70 Hz
  • Transfer Time: Zero
  • Output Connections: 3 x IEC 60320 C13
  • Input Connection: IEC 60320 C14
  • Bypass: Internal automatic and manual bypass
  • ECO Mode: Supported
  • Display: LCD
  • Battery Type: Maintenance-free sealed lead-acid
  • Battery Voltage: 24V
  • Battery Recharge Time: Approximately 4 hours
  • Communication Ports: USB and RS-232
  • Intelligent Card Slot: 1
  • Battery Replacement: Supported
  • Form Factor: Tower
  • Dimensions: 223 x 145 x 288 mm
  • Net Weight: Approximately 9.3 kg
  • Operating Temperature: 0°C to 40°C
  • Storage Temperature: -20°C to 50°C
  • Operating Altitude: Up to 3,000 m
  • Relative Humidity: 0% to 95%, non-condensing
  • Noise Level: Approximately 50 dBA
  • Protection Rating: IP20
  • Primary Applications: Servers, networking equipment, storage systems, telecommunications equipment, security systems, workstations, and sensitive electronics
  • Installation: Tower / standalone installation
