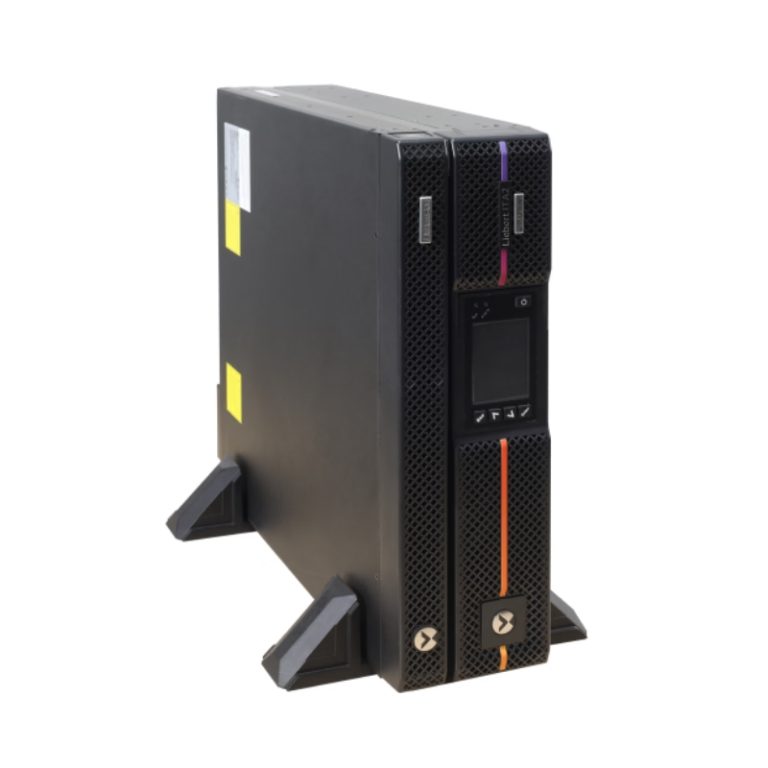

Vertiv ITA2 1kVA 1-Phase Double-Conversion Power Online UPS

This Vertiv Liebert ITA2 1kVA 1-Phase Online UPS is a high-efficiency, true online double-conversion UPS designed to deliver clean, uninterrupted, and regulated power for critical IT equipment, network devices, and edge computing environments.

With a unity output power factor (1.0 PF), compact 2U rack/tower convertible design, and advanced remote management capabilities, the Vertiv ITA2 1kVA UPS is ideal for IT racks, network closets, branch offices, and small data centers.

Key Features & Benefits

• True Online Double-Conversion Technology: Provides continuous power conditioning, fully isolating connected equipment from voltage fluctuations, electrical noise, surges, and outages.
• Capacity: 1kVA / 1kW, delivering maximum usable power with a unity power factor (PF 1.0)—eliminating the need for UPS oversizing.
• High Energy Efficiency: Achieves up to 94% efficiency in double-conversion mode and up to 98% efficiency in ECO mode, reducing power losses and operating costs (OPEX).
• Rack/Tower Convertible Design: 2U rackmount or tower configuration allows flexible deployment in server racks or floor-standing installations.
• Wide Input Voltage Range: Operates from 100 Vac to 288 Vac, supporting unstable utility power conditions while extending battery life.
• Robust & Reliable Construction: Features dust-resistant design and supports high ambient operating temperatures up to 50°C, making it suitable for harsh environments.
• Advanced Battery System:
  • Internal sealed lead-acid (VRLA), maintenance-free batteries
  • Optional support for external Lithium-ion batteries for extended runtime
• Intelligent Monitoring & Management:
  • Gravity-sensing color LCD display for real-time system status
  • Built-in Ethernet port supporting HTTP and SNMP protocols
  • Additional USB, RS-232, and dry contact interfaces
  • Compatible with Vertiv Power Insight software for remote monitoring and graceful shutdown
• Transformer-Free Design: Improves efficiency, power density, and thermal performance.

Technical Specifications

• Model: Vertiv™ Liebert® ITA2 (1kVA)
• Capacity: 1kVA / 1kW
• Phase: Single Phase (1-Phase)
• Topology: True Online Double-Conversion, Transformer-Free
• Input Voltage Range: 100–288 Vac (linear derating at half load)
• Output Voltage: 220 / 230 / 240 Vac (configurable)
• Efficiency:
  • Up to 94% (Double-Conversion Mode)
  • Up to 98% (ECO Mode)
• Form Factor: 2U Rack / Tower Convertible
• Battery Type: Internal VRLA, maintenance-free
• External Battery Support: Optional Lithium-ion batteries
• Communication Interfaces: Ethernet (HTTP/SNMP), USB, RS-232, Dry Contacts
• Operating Temperature: 0°C to 50°C (with derating)
• Dimensions (W × D × H): 430 × 400 × 85 mm
• Weight: 15.6 kg

Ideal Applications

The Vertiv ITA2 1kVA Online UPS is ideal for:

• IT racks and edge computing nodes
• Network switches and routers
• Branch offices and retail IT systems
• Small server rooms and data centers
• Critical business and enterprise IT infrastructure
