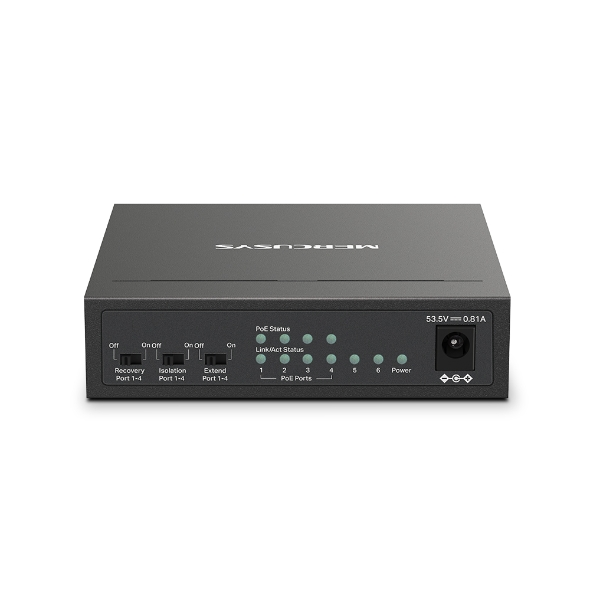

MERCUSYS 6‑Port 10/100Mbps Desktop Switch with 4‑Port PoE+ – TL‑MS106LP
The MERCUSYS 6‑Port 10/100Mbps Desktop Switch with 4‑Port PoE+ (TL‑MS106LP) is a versatile networking solution designed to expand wired and powered connectivity for homes, offices, surveillance systems, and small businesses in Kenya. With six Fast Ethernet ports, including four PoE+ capable ports, this switch can deliver both data and power over a single cable to compatible devices such as IP cameras, access points, and VoIP phones. Its durable metal design, long-range PoE support, traffic isolation, and auto-recovery features make it a reliable choice for stable network performance with minimal setup.
Product Features
Four PoE+ Enabled Ports
Four RJ45 ports support Power over Ethernet Plus (PoE+), providing up to 30 W per port with a total PoE budget of 40 W, powering connected devices without additional adapters.
Dual Uplink Ports
Two non-PoE ports serve as uplinks for routers, modems, or network video recorders, enabling seamless integration into your network.
Long-Range PoE Transmission
Extend Mode allows PoE transmission up to 250 m, ideal for distant IP cameras or access points without the need for extra power lines.
Traffic Isolation Mode
Prevents broadcast storms and reduces cross-traffic interference by isolating traffic on selected ports, enhancing network stability and security.
Plug‑and‑Play Operation
Auto‑negotiation and Auto‑MDI/MDIX enable simple setup without configuration—just connect your devices and power on the switch.
PoE Auto Recovery
Automatically detects and restarts unresponsive PoE devices, ensuring continuous operation and network reliability.
Durable and Quiet Design
Rugged metal housing provides heat dissipation and long-term durability, while the fanless design ensures silent operation suitable for offices and surveillance setups.
Product Specifications
- Brand: MERCUSYS
- Model: TL‑MS106LP
- Ports: 6 × 10/100 Mbps RJ45 Ethernet
- PoE Standards: IEEE 802.3af/at compatible
- PoE Ports: 4 PoE+ capable
- Maximum PoE Power per Port: Up to 30 W
- Total PoE Power Budget: 40 W
- Uplink Ports: 2 non-PoE RJ45
- Data Rates: 10/100 Mbps half/full duplex
- Auto‑Negotiation: Supported
- Auto‑MDI/MDIX: Supported
- PoE Extend Mode: Yes (up to 250 m)
- Traffic Isolation Mode: Yes
- PoE Auto Recovery: Yes
- Housing: Metal, fanless design
- Power Supply: External adapter
- Operating Temperature: 0 °C to 40 °C
- Operating Humidity: 10 %–90 % non-condensing
- Suitable For: IP cameras, access points, VoIP phones, small office and home networks in Kenya
The MERCUSYS TL‑MS106LP is an energy-efficient, easy-to-install desktop switch that provides both power and data to connected devices, making it a practical choice for reliable networking in Kenya.
