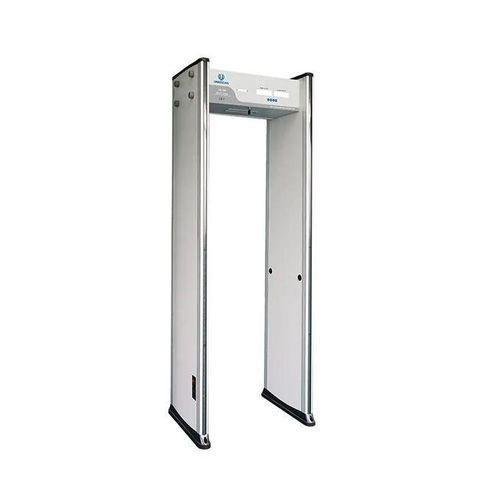

Hikvision ISD-SMG1118L Walk-Through Metal Detector (18-Zone Security Screening Gate)

The Hikvision ISD-SMG1118L is a professional walk-through metal detector designed for high-accuracy security screening in public and institutional environments. It is used in places such as airports, schools, government buildings, hospitals, corporate offices, and large events to detect concealed metallic objects on individuals passing through controlled entry points. With advanced multi-zone detection, high sensitivity, and strong anti-interference technology, it ensures reliable security inspection while maintaining smooth pedestrian flow. Its intelligent design also supports people counting, network management, and real-time alarm indication, making it suitable for modern security systems in Kenya.

Product Features

18-Zone Precise Metal Detection System

The detector is divided into up to 18 independent detection zones, allowing accurate identification of the exact body area where a metal object is detected.

High Sensitivity Detection Capability

Capable of detecting even small metal objects, including coin-sized items, ensuring effective identification of concealed prohibited materials.

Advanced Anti-Interference Technology

Designed with strong electromagnetic interference resistance to maintain stable performance even in environments with multiple electronic devices.

Smart Networking and Remote Configuration

Supports network connectivity, allowing administrators to configure settings, manage parameters, and monitor performance through a web-based interface.

Built-In LCD Display Interface

Features a 7-inch color LCD screen that displays system settings, alarm counts, and people flow statistics for easy monitoring and control.

Intelligent People Counting Function

Includes dual infrared sensors to count the number of individuals passing through, helping manage traffic flow in busy entry points.

Multi-Zone Alarm Indication

Provides visual and audible alerts with LED indicators showing the exact location of detected metal on the body.

Power-On Self-Diagnosis System

Automatically performs system checks during startup to ensure all components are functioning correctly before operation.

Flying Object Detection Alarm

Capable of detecting and alarming when metallic objects are thrown through the gate area, improving security coverage.

Modular Design for Easy Installation

Built with a modular structure that simplifies transport, installation, and maintenance in different deployment environments.

Product Specifications

• Brand: Hikvision
• Model: ISD-SMG1118L
• Product Type: Walk-Through Metal Detector
• Detection Zones: Up to 18 zones
• Detection Capability: Coin-sized metal object detection
• Sensitivity: Adjustable multi-level sensitivity settings
• Display: 7-inch LCD color screen
• Configuration Method: Web interface and remote control
• Networking: Supported (LAN-based management)
• People Counting: Dual infrared sensors integrated
• Alarm System: Audible alarm + LED visual zone indicators
• Self-Diagnosis: Power-on automatic system check
• Anti-Interference: High resistance to electromagnetic interference
• Flying Object Detection: Supported
• Power Supply: AC 100–240V, 50/60Hz
• Power Consumption: Less than 25W
• Operating Temperature: -20°C to 55°C
• Operating Humidity: 10% to 95% non-condensing
• Protection Level: IP41
• Material: High-strength PVC and industrial-grade components
• Dimensions: 2200 mm (H) × 840 mm (W) × 600 mm (D)
• Passage Size: 2000 mm (H) × 710 mm (W) × 500 mm (D)
• Weight: Less than 75 kg
• Installation Type: Floor-standing walkthrough gate
• Application: Airports, schools, hospitals, government facilities, offices, and public events
• Condition: New genuine Hikvision product
