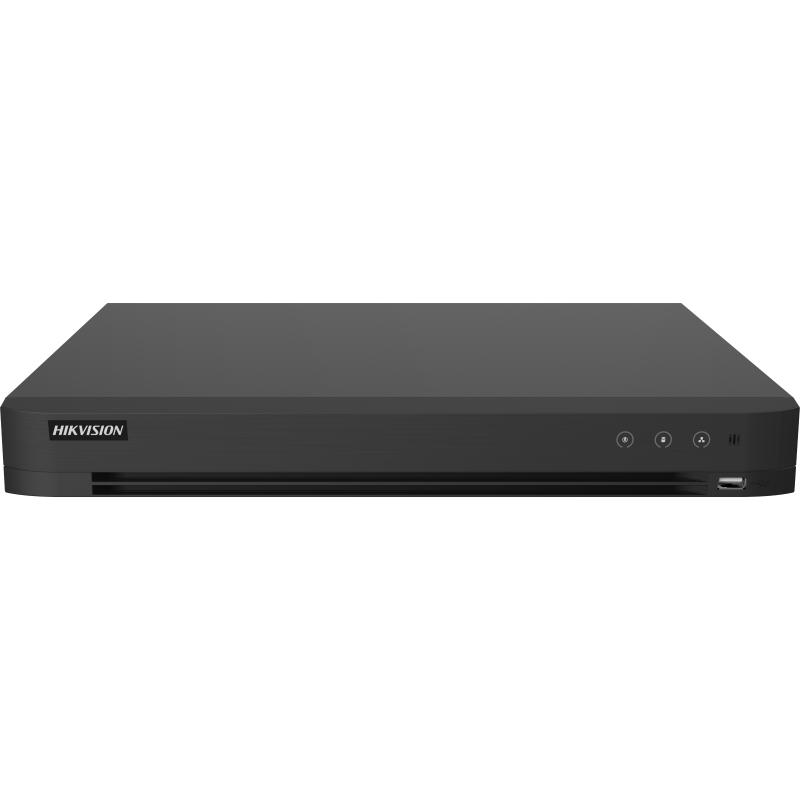

Hikvision iDS-7232HQHI-M2/S 32 Channel AcuSense DVR with AI-Powered CCTV Surveillance

The Hikvision iDS-7232HQHI-M2/S is a high-performance 32-channel AcuSense Turbo HD DVR designed for advanced CCTV surveillance systems that require intelligent monitoring, flexible camera integration, and efficient long-term recording. It is suitable for commercial buildings, industrial sites, institutions, warehouses, retail environments, and multi-site security installations. This hybrid DVR supports both analog and IP cameras, making it ideal for system expansion or upgrading existing CCTV setups. With H.265 Pro+ compression, deep learning AI features, and high-definition output support, it delivers reliable performance, accurate threat detection, and optimized storage efficiency for continuous 24/7 surveillance.

Product Features

32 channel high-capacity surveillance system

Supports up to 32 analog cameras, providing extensive coverage for large properties with multiple monitoring zones and critical entry points.

AcuSense AI human and vehicle detection

Uses deep learning algorithms to accurately distinguish humans and vehicles from irrelevant motion such as animals, shadows, or environmental changes, reducing false alarms.

Hybrid camera compatibility

Supports HDTVI, AHD, CVI, CVBS, and IP cameras, enabling flexible integration with both modern and existing CCTV systems.

Expanded IP camera support

Supports up to 24 IP channels depending on system configuration, allowing scalable expansion beyond analog inputs.

H.265 Pro+ compression technology

Reduces storage usage and bandwidth consumption while maintaining high-quality video recording for longer retention periods.

4K HDMI high-resolution output

Provides ultra-clear 4K video output for detailed live viewing and professional surveillance monitoring environments.

Motion detection 2.0 intelligent analytics

Improves event accuracy by classifying motion into human or vehicle activity and enabling fast playback search.

Perimeter protection system

Detects intrusion and line crossing events with intelligent filtering to ensure only real security threats trigger alerts.

Facial detection and capture

Supports face image detection and search functions for improved identification and monitoring in restricted areas.

Smart playback and video search

Allows quick retrieval of recorded footage based on time or event-based filtering for efficient investigations.

Dual SATA storage support

Equipped with 2 SATA interfaces supporting large-capacity hard drives for extended video recording storage.

Remote access and mobile monitoring

Enables live viewing and playback through mobile applications and web-based platforms for remote surveillance management.

Product Specifications

• Model: iDS-7232HQHI-M2/S
• Video input: 32 channel analog (HDTVI, AHD, CVI, CVBS)
• IP camera support: Up to 24 channels depending on configuration
• Video compression: H.265 Pro+, H.265, H.264+, H.264
• Recording resolution: Up to 3K / 5MP Lite depending on channel configuration
• Video output: 1 HDMI (up to 4K resolution) and 1 VGA
• Audio input: 1 channel RCA audio input
• Audio output: 1 channel RCA audio output
• Two-way audio: Supported
• Storage: 2 SATA interfaces supporting up to 10 TB per HDD
• Network interface: 1 RJ-45 10/100/1000 Mbps Ethernet port
• USB ports: 1 USB 2.0 (front) and 1 USB 3.0 (rear)
• Network protocols: TCP/IP, DHCP, DNS, NTP, Hik-Connect, ONVIF
• Smart features: AcuSense AI, motion detection 2.0, perimeter protection, facial detection
• Frame rate: Real-time recording depending on configuration
• Power supply: 12 V DC
• Power consumption: Up to 40 W (without HDD)
• Operating temperature: -10 degrees Celsius to 55 degrees Celsius
• Dimensions: 380 mm x 320 mm x 48 mm
• Weight: Approximately 2 kg (without HDD)
• Application: Suitable for large commercial facilities, institutions, warehouses, retail environments, and multi-zone CCTV surveillance systems
