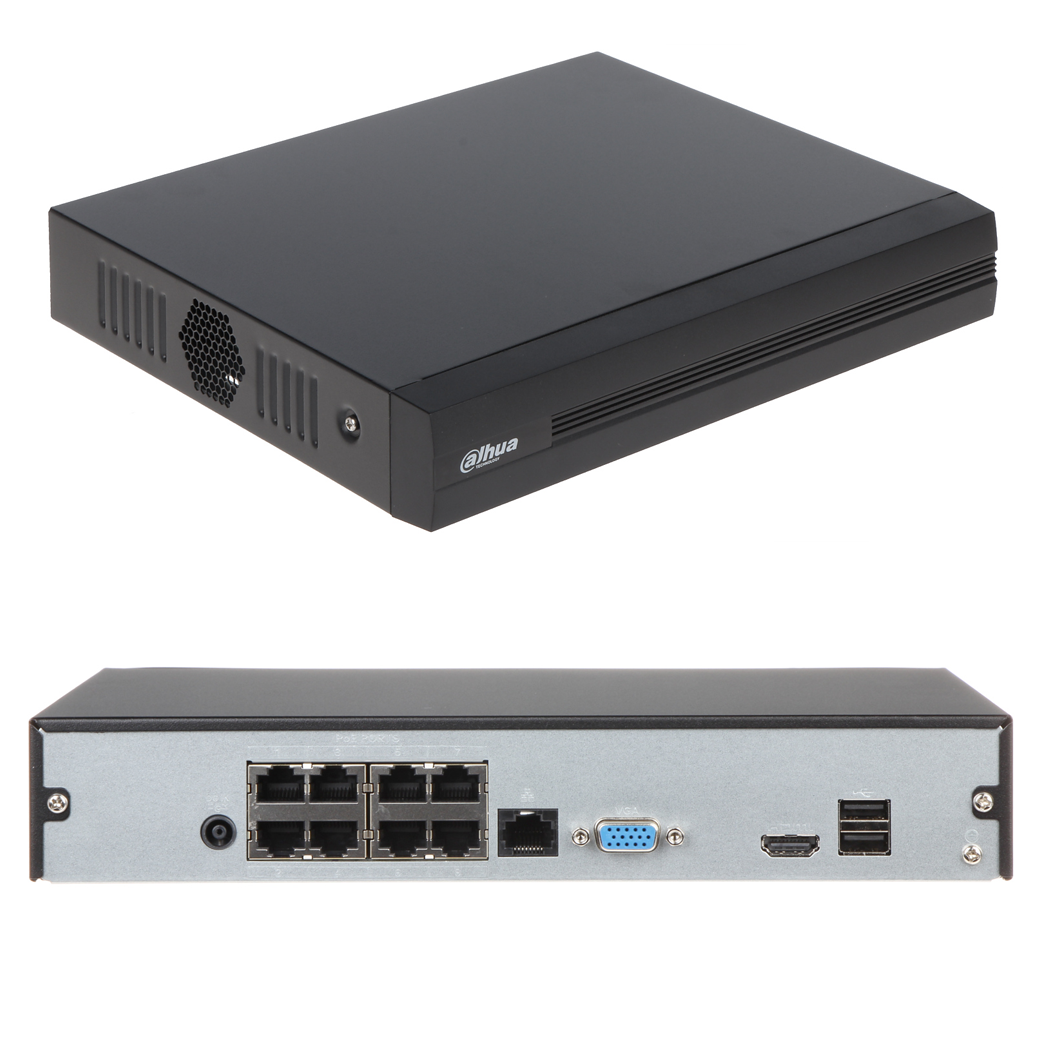

Dahua NVR1108HS-8P-S3/H 8-Channel PoE Network Video Recorder

The Dahua NVR1108HS-8P-S3/H 8-Channel PoE Network Video Recorder (NVR) is a professional IP surveillance recording solution designed for homes, offices, retail stores, schools, warehouses, and small to medium-sized businesses. Featuring eight built-in Power over Ethernet (PoE) ports, this NVR simplifies installation by supplying both power and network connectivity to compatible IP cameras through a single Ethernet cable. Supporting up to 8MP IP cameras, Smart H.265+ video compression, HDMI and VGA simultaneous video output, ONVIF compatibility, and remote monitoring through the Dahua DMSS mobile application, the NVR1108HS-8P-S3/H delivers reliable, high-quality video recording while minimizing storage and bandwidth usage. Its compact design and user-friendly interface make it an ideal solution for new CCTV installations and surveillance system upgrades.

Product Features

8-Channel IP Camera Support

The recorder supports up to eight IP cameras with resolutions of up to 8MP, delivering high-definition surveillance for residential and commercial security applications.

Eight Built-in PoE Ports

Eight integrated PoE ports provide both power and data transmission over a single Ethernet cable, reducing installation time, cabling costs, and the need for separate power supplies.

Smart H.265+ Video Compression

Smart H.265+, H.265, Smart H.264+, and H.264 compression technologies reduce bandwidth consumption and storage requirements while maintaining excellent image quality.

Supports Up to 8MP Recording

The recorder supports high-resolution IP cameras up to 8MP, enabling detailed video capture for improved identification of people, vehicles, and important events.

HDMI and VGA Simultaneous Video Output

Built-in HDMI and VGA outputs allow simultaneous display on multiple monitors, providing convenient live viewing, playback, and system configuration.

ONVIF and RTSP Compatibility

The NVR supports ONVIF Profile S, Profile T, Profile G, and RTSP protocols, allowing seamless integration with Dahua and compatible third-party IP cameras.

Remote Monitoring via Dahua DMSS

View live video, play back recordings, receive event notifications, and manage the surveillance system remotely using the Dahua DMSS mobile application from anywhere with an internet connection.

Intelligent Playback and Recording

The recorder supports multi-channel playback, scheduled recording, motion detection recording, and event-based recording, making it easier to locate important surveillance footage.

Large Storage Capacity

A built-in SATA interface supports one hard drive with a capacity of up to 6TB, providing reliable storage for continuous surveillance recording.

Reliable Embedded Linux Platform

Built on an industrial-grade embedded Linux operating system, the recorder delivers stable performance, quick startup, and an intuitive user interface for efficient day-to-day operation.

Product Specifications

• Brand: Dahua
• Model: NVR1108HS-8P-S3/H
• Product Type: 8-Channel PoE Network Video Recorder (NVR)
• Operating System: Embedded Linux
• IP Camera Channels: 8
• Built-in PoE Ports: 8 × RJ45 PoE (10/100 Mbps)
• Maximum Camera Resolution: 8MP
• Incoming Bandwidth: 80 Mbps
• Outgoing Bandwidth: 60 Mbps
• Video Compression: Smart H.265+, H.265, Smart H.264+, H.264
• Video Outputs: 1 × HDMI and 1 × VGA
• Audio Input: 1 × RCA
• Audio Output: 1 × RCA
• Network Interface: 1 × RJ45 10/100 Mbps Ethernet
• USB Ports: 2 × USB 2.0
• Storage: 1 × SATA HDD, supporting up to 6TB
• Camera Compatibility: Dahua IP cameras, ONVIF, RTSP
• Mobile Application: Dahua DMSS
• Power Supply: DC 48V
• Maximum PoE Power Budget: 72W
• Maximum PoE Output per Port:5W
• Applications: Homes, offices, schools, retail stores, warehouses, hotels, and small to medium-sized IP surveillance systems
