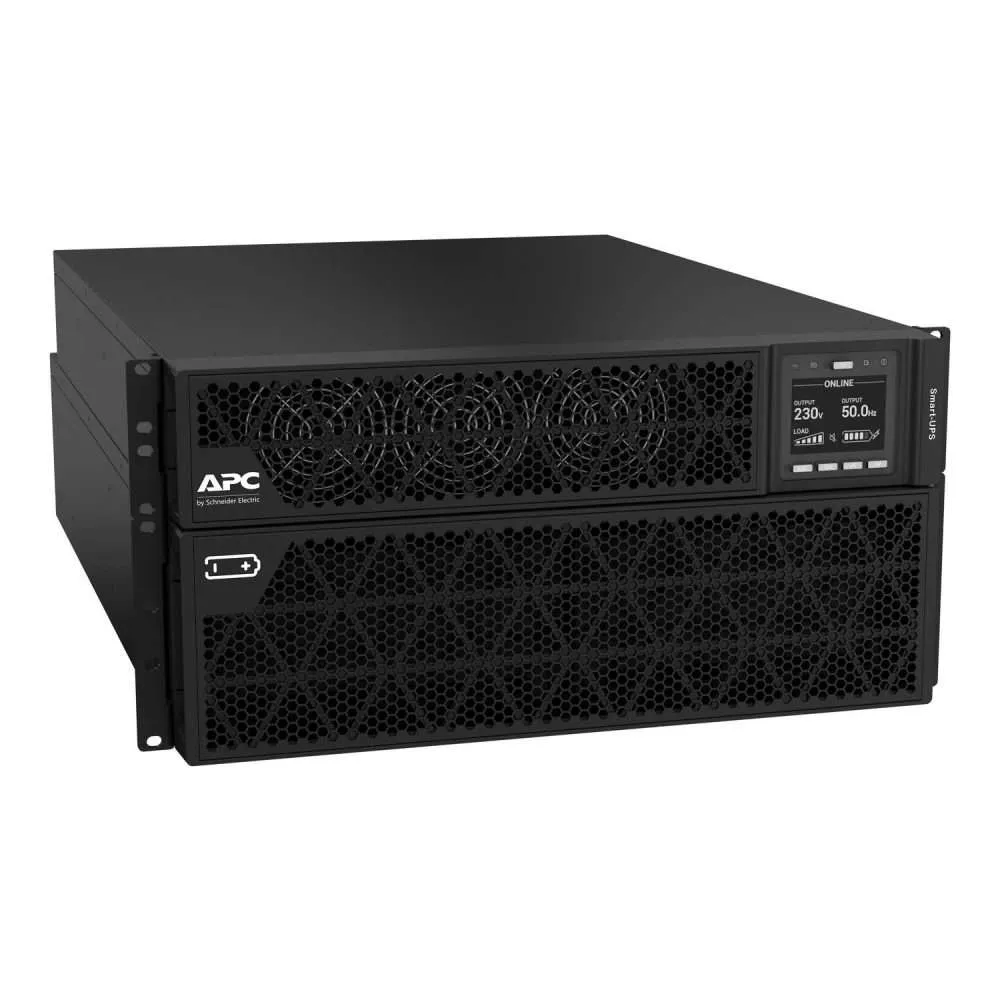

APC SMART-UPS RT 10KVA 230V (SRTG10KXLI)

The APC Smart-UPS RT SRTG10KXLI is a robust and scalable double-conversion online uninterruptible power supply (UPS) designed to provide 10kVA (10,000VA) / 10kW of reliable, continuous power for critical IT equipment and industrial applications. It features advanced power conditioning, extended runtime options, and seamless integration with SmartSlot accessories for enhanced management. Its high efficiency ensures optimal performance in high-density environments, such as data centers, server rooms, and industrial facilities, while protecting connected equipment from power disturbances, including surges, brownouts, and outages.

Product Features

True Double-Conversion Online Technology

The SRTG10KXLI ensures consistent and reliable power by isolating connected equipment from power disturbances, providing seamless switchover during outages, and maintaining clean, stable output voltage.

High Power Density

Offering a full 10kW output, this UPS delivers maximum power in a compact footprint, suitable for space-constrained environments.

Scalable Runtime with External Battery Packs

Extendable runtime options via external battery packs allow you to customize backup power duration to meet your specific needs, ideal for long-duration critical operations.

Intuitive LCD Interface

A multifunction LCD display provides real-time information on UPS status, battery health, and power conditions, enabling easy monitoring and management.

SmartSlot Expandability

The SmartSlot feature allows integration of APC management cards to enhance monitoring, network manageability, and functionality.

Energy-Efficient Operation

Operating at high efficiency, the SRTG10KXLI reduces heat generation and energy consumption, lowering operational costs.

Flexible Installation Options

Designed for rack or tower installation, this UPS adapts to your setup preferences and space constraints with ease.

Network-Grade Power Protection

Protects connected equipment from surges, spikes, and other electrical anomalies, ensuring the longevity and reliability of critical systems.

Product Specifications

• Power Capacity: 10kVA / 10kW
• Topology: Double-Conversion Online
• Input Voltage: 230V AC
• Output Voltage: 230V AC
• Output Connections: Configurable (supports customizable output distribution through SmartSlot options)
• Waveform Type: Pure sine wave
• Runtime at Full Load: Configurable with external battery packs
• Battery Type: Lead-Acid, replaceable and hot-swappable
• Battery Recharge Time: Typically 3 hours (internal)
• Efficiency: Up to 95% in online mode
• Display: Advanced LCD for status and diagnostics
• Communications: Serial, USB, and SmartSlot for network management
• Noise Level: Approximately 55 dBA
• Form Factor: Convertible for rack or tower use
• Weight: ~100 kg (including internal battery modules)
• Dimensions (HxWxD): ~17.5 cm x 43.2 cm x 71.4 cm (rack configuration)
• Operating Environment: 0°C to 40°C, 0-95% relative humidity (non-condensing)
• Certifications: CE, IEC 62040-1, IEC 62040-2
• Warranty: 2-year repair or replace
