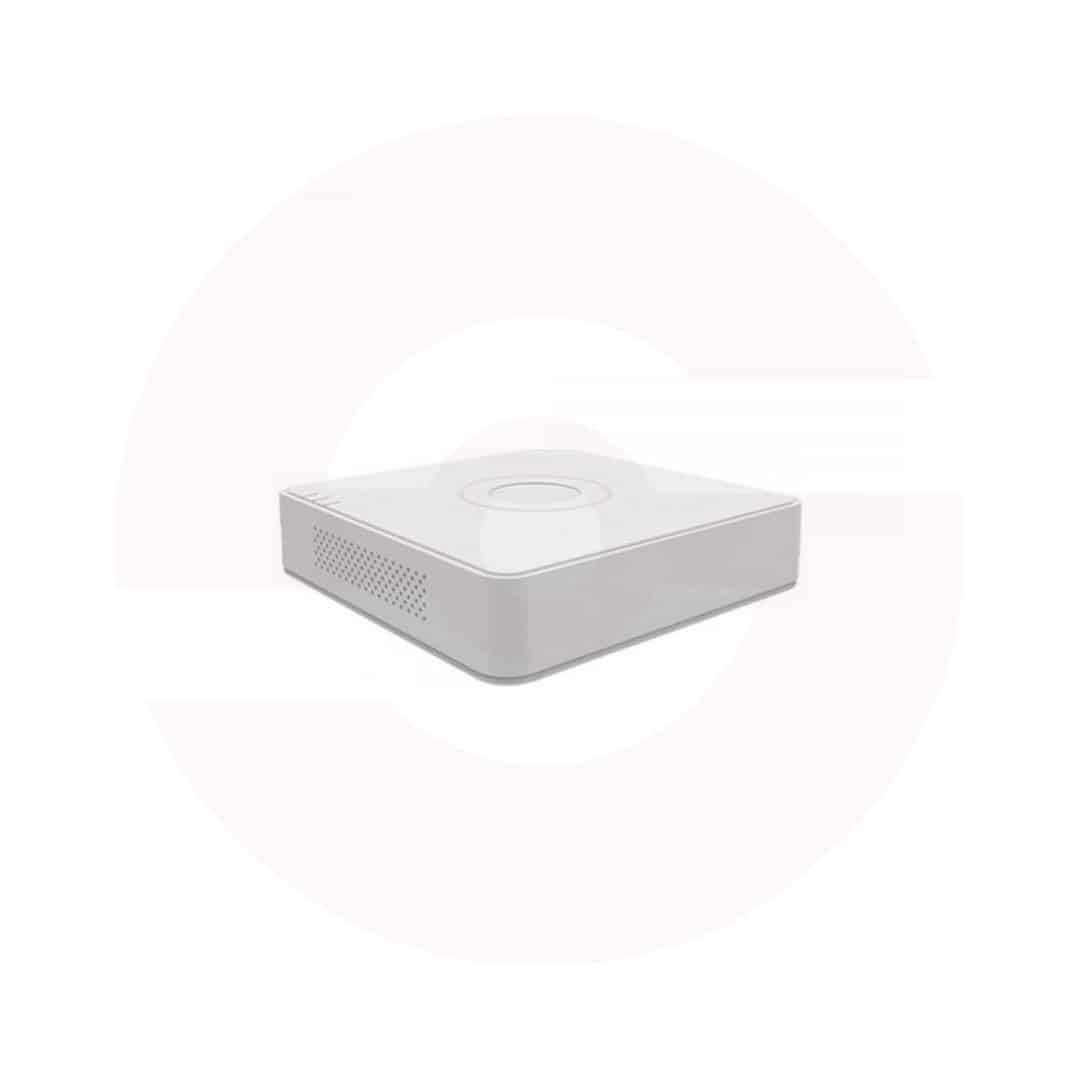

Hikvision iDS-7108HQHI-M1/S 8-Channel AcuSense Turbo HD DVR Recorder for Smart CCTV Security Systems

The Hikvision iDS-7108HQHI-M1/S is an 8-channel AcuSense Turbo HD digital video recorder designed for intelligent and reliable CCTV surveillance in homes, offices, retail shops, and small commercial properties. It supports multiple video input formats including HDTVI, AHD, HDCVI, CVBS, and IP cameras, making it suitable for both traditional analog installations and modern hybrid security systems. With H.265 Pro+ compression and AI-powered AcuSense Motion Detection 2.0, it improves storage efficiency while delivering more accurate detection and reduced false alarms. The DVR also supports remote access via mobile and desktop platforms, enabling users to monitor live video and playback recordings from any location with internet connectivity.

Product Features

8-Channel Hybrid Camera Support

The iDS-7108HQHI-M1/S supports up to 8 analog HD cameras and additional IP cameras depending on configuration. This allows flexible expansion of surveillance systems, making it suitable for growing security needs without replacing existing cameras.

H.265 Pro+ Advanced Video Compression

It uses H.265 Pro+ compression technology to significantly reduce video file sizes and bandwidth usage. This allows longer recording duration on a single hard drive while maintaining efficient storage performance and clear video quality.

AcuSense Motion Detection 2.0 AI Technology

The system features deep learning-based Motion Detection 2.0, which accurately identifies human and vehicle movement while filtering out irrelevant motion such as animals, shadows, and lighting changes. This improves alarm accuracy and reduces unnecessary recordings.

Flexible Multi-Format Video Input

The DVR supports HDTVI, AHD, HDCVI, CVBS, and IP camera inputs, allowing seamless integration of existing analog cameras with modern IP surveillance systems. This ensures cost-effective upgrades and flexible system design.

Remote Viewing and Mobile Access

It supports Hik-Connect for remote monitoring, enabling users to view live footage, access playback recordings, and receive real-time alerts on smartphones, tablets, and computers. This ensures continuous surveillance access from anywhere.

HDMI and VGA Simultaneous Output

The device includes HDMI and VGA ports for simultaneous display output, allowing real-time monitoring and playback on monitors or televisions in control rooms, offices, or home security setups.

Product Specifications

• Model: iDS-7108HQHI-M1/S
• Channels: 8 analog channels with hybrid IP camera support
• Supported Video Formats: HDTVI, AHD, HDCVI, CVBS, IP cameras
• Video Compression: H.265 Pro+, H.265, H.264
• Maximum Recording Resolution: Up to 3K lite / 1080p depending on configuration
• Frame Rate: Up to 15 fps per channel depending on stream settings
• IP Camera Support: Up to 12 IP channels (varies by configuration)
• Storage: 1 SATA interface supporting up to 10TB hard drive
• Video Outputs: HDMI and VGA simultaneous output
• Audio Support: 1 audio input (RCA) and audio over coaxial support on compatible cameras
• Network Interface: RJ-45 Ethernet 10/100 Mbps
• Remote Access: Hik-Connect mobile and web platform support
• Power Supply: 12V DC, 1.33A
• Operating Conditions: Indoor CCTV surveillance installations
• Dimensions: 200 × 200 × 48 mm
• Weight: Approximately 1 kg (without hard drive)
