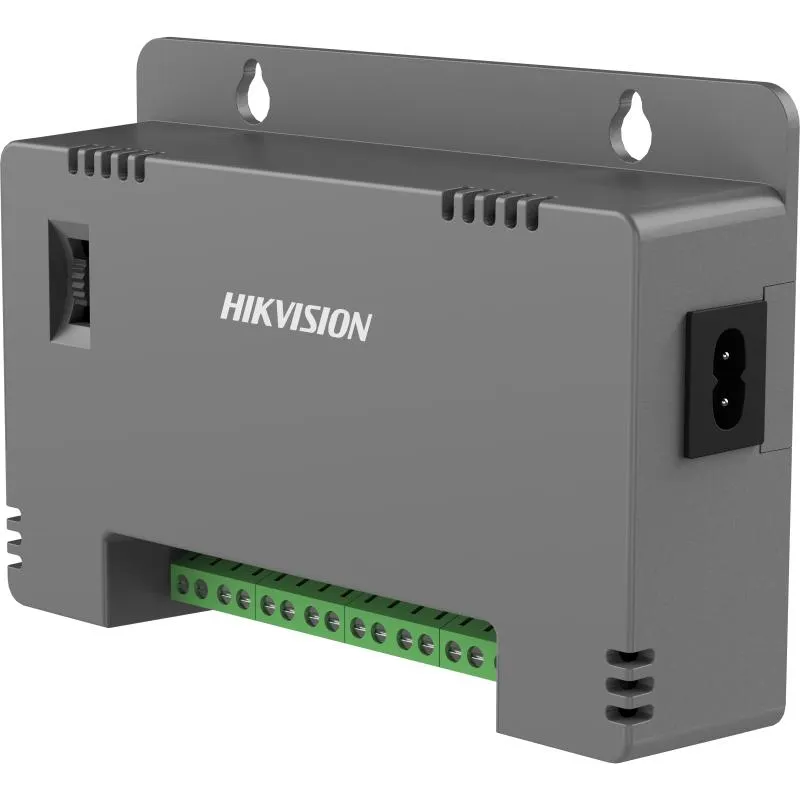

Hikvision DS-2FA1208-C16 Power Supply Kenya | 16-Channel 12V CCTV SMPS Power Distribution Unit

The Hikvision DS-2FA1208-C16 is a multi-channel switch mode power supply (SMPS) designed to provide stable and centralized power distribution for CCTV cameras and security systems. It delivers 12V DC output across multiple channels, making it ideal for powering several surveillance cameras, DVR accessories, and low-voltage security devices from a single unit. Built with advanced protection circuitry and a compact metal enclosure, it ensures reliable performance, electrical safety, and consistent power delivery in professional CCTV installations commonly used in Kenya.

Product Features

16-channel independent power output

The DS-2FA1208-C16 provides multiple independent output channels, allowing it to power several CCTV cameras simultaneously from one centralized unit, improving installation efficiency and cable management.

Stable 12V DC regulated output

Each channel delivers a regulated 12V DC output designed for stable operation of surveillance cameras, ensuring consistent performance without voltage fluctuations.

Built-in electrical protection system

It includes over-voltage, over-current, and short-circuit protection to safeguard connected devices and ensure safe operation in demanding environments.

Wide AC input voltage support

The unit supports a wide input voltage range, allowing it to operate reliably even in areas with unstable power supply conditions.

Compact and professional metal housing

Constructed with a durable metal enclosure, it offers heat resistance, physical protection, and suitability for wall-mounted or rack installations.

LED power status indicators

Each channel is equipped with LED indicators that allow easy monitoring of power status and quick fault detection during installation or maintenance.

Efficient centralized power distribution

It reduces the need for multiple individual power adapters by centralizing power management, making CCTV installations more organized and easier to maintain.

Designed for CCTV system integration

Specifically engineered for surveillance systems, it is compatible with a wide range of analog and IP camera setups requiring 12V DC power.

Product Specifications

• Model: DS-2FA1208-C16
• Brand: Hikvision
• Product type: Multi-channel SMPS power supply
• Output voltage: 12V DC
• Output channels: 16 independent channels
• Output current: Up to 1A per channel
• Total power capacity: Approximately 96W (8A total output)
• Input voltage: 150–285 VAC
• Input frequency: 47–63 Hz
• Protection features: Over-voltage, over-current, short-circuit protection
• Housing material: Metal enclosure
• Indicator system: LED power status per channel
• Installation type: Wall-mounted or rack-mounted
• Operating temperature: -10°C to +50°C (typical operating range)
• Application: CCTV cameras, DVR systems, access control devices, security installations
