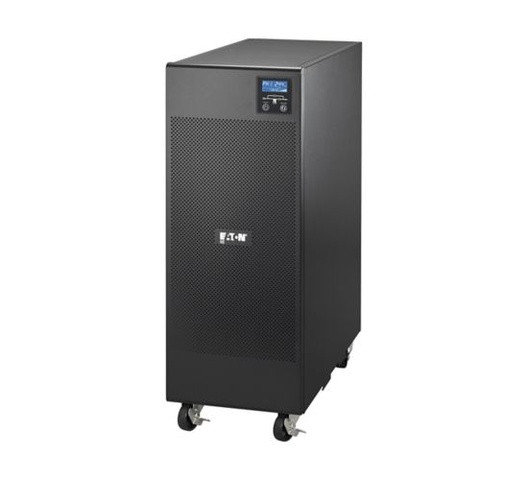

Eaton 9E6KI 6kVA / 4.8kW Online Tower UPS

The Eaton 9E6KI is a high-performance online double-conversion UPS designed to deliver reliable, clean power for critical IT, industrial, and medical applications. With a 0.8 power factor, scalable runtime options, and advanced monitoring, it ensures your equipment stays protected against power outages, surges, sags, and frequency fluctuations.

Key Features

• True Online Double Conversion: Provides a continuous, pure sine wave output for sensitive equipment, isolating devices from all input power anomalies.
• High Power Factor: 0.8 PF (4800W of real power from 6000VA) allows connection of more equipment compared to similar UPS models.
• Scalable Runtime: Supports up to four optional external battery modules (EBMs) for extended backup time during prolonged outages.
• Advanced Battery Management: Automatic battery testing, deep discharge protection, and intelligent charging extend battery lifespan and enhance reliability.
• Intuitive LCD Display: Provides real-time UPS status, load, battery health, and alarm notifications for easy monitoring.
• Wide Input Voltage Range: Operates from 176–276V without derating (down to 110V with derating), minimizing unnecessary battery use.
• Energy Efficient: Achieves up to 93% efficiency in online mode and 97% in ECO mode, reducing operational costs.
• Connectivity & Management:
  • USB port (HID compliant)
  • RS232 serial port
  • Slot for optional communication cards (Network-M2, ModBus-MS)
  • Compatible with Eaton Intelligent Power Software for virtual environments including VMware, Hyper-V, Citrix Xen, and Redhat

Specifications

• Model: 9E6KI
• Topology: Online double-conversion
• Capacity: 6000 VA / 4800 W
• Configuration: Tower (with casters)
• Input Voltage Range: 176–276 V (110–276V with derating)
• Output Voltage: 220/230/240 V ±2%
• Efficiency: Up to 93% online, 97% ECO mode
• Output Waveform: Pure sine wave
• Connectivity: USB, RS232, optional network/communication card slot
• Dimensions (H × W × D): 708.5 × 262.4 × 612.9 mm
• Weight: 68 kg
• Warranty: 2 Years UPS / 2 Years Battery (varies by region/reseller)

Application Areas

• Server rooms and network racks
• Critical IT infrastructure and business workstations
• Industrial and medical equipment protection
• Virtualized environments (VMware, Hyper-V, Citrix Xen, Redhat)
• Edge computing and data centers
