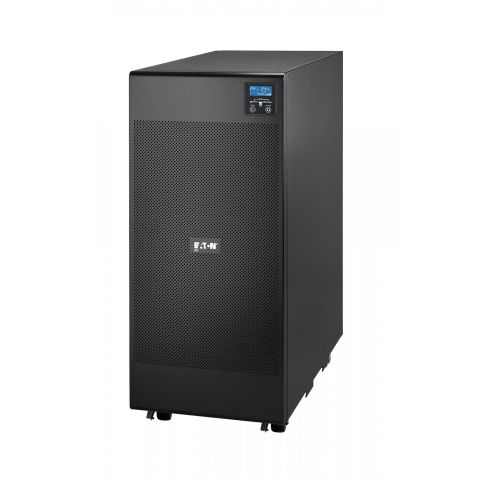

Eaton 9E 20kVA / 16kW Online Double Conversion Tower UPS – 9E20Ki

This Eaton 9E Series 9E20Ki is a high-capacity online double-conversion UPS designed for critical IT, industrial, and medical applications. With a 0.8 power factor, scalable battery runtime, and advanced monitoring features, it delivers continuous, clean, and reliable power, ensuring uptime for sensitive equipment.

Key Features

• Online Double-Conversion Technology: Provides continuous, high-quality power, isolating connected equipment from voltage and frequency anomalies.
• High Power Factor: 0.8 PF delivers 16 kW of real power, supporting more devices than similar VA-rated UPS models.
• Energy Efficiency: Operates at up to 93% efficiency in online mode and up to 97% in ECO mode, reducing operational costs.
• Scalable Runtime: Supports up to four optional external battery modules (EBMs) to extend backup time for prolonged outages.
• Advanced Management:
  • LCD display for real-time status, measurements, and configuration.
  • USB and RS232 serial ports for local monitoring.
  • Expansion slot for optional network card (Network-M2) for remote monitoring and integration with virtual environments like VMware and Hyper-V.
• Service Continuity: Internal maintenance bypass allows safe service and replacement without powering down connected equipment.
• Robust Design: Tower form factor with casters for mobility in server rooms, data centers, or industrial environments.

Specifications

• Topology: Online double-conversion
• Capacity: 20 kVA / 16 kW
• Power Factor: 0.8
• Input Voltage Range: 176–276V without derating (110–276V with derating)
• Output Voltage: 220V / 230V / 240V ±2%
• Battery Type: Sealed lead-acid (40 × 12V/9Ah internal batteries)
• Runtime (Full Load): ~5 minutes with internal batteries
• Form Factor: Tower with casters
• Dimensions (H × W × D): 815.5 × 350 × 706 mm
• Weight: ~159.8 kg
• User Interface: LCD display
• Connectivity: USB, RS232, optional network card slot

Application Areas

• Enterprise data centers and server rooms
• Industrial control and automation systems
• Medical facilities and critical healthcare equipment
• Networking infrastructure: routers, switches, firewalls
• Edge computing and high-density IT deployments
